Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

CIRCUIT DIAGRAM

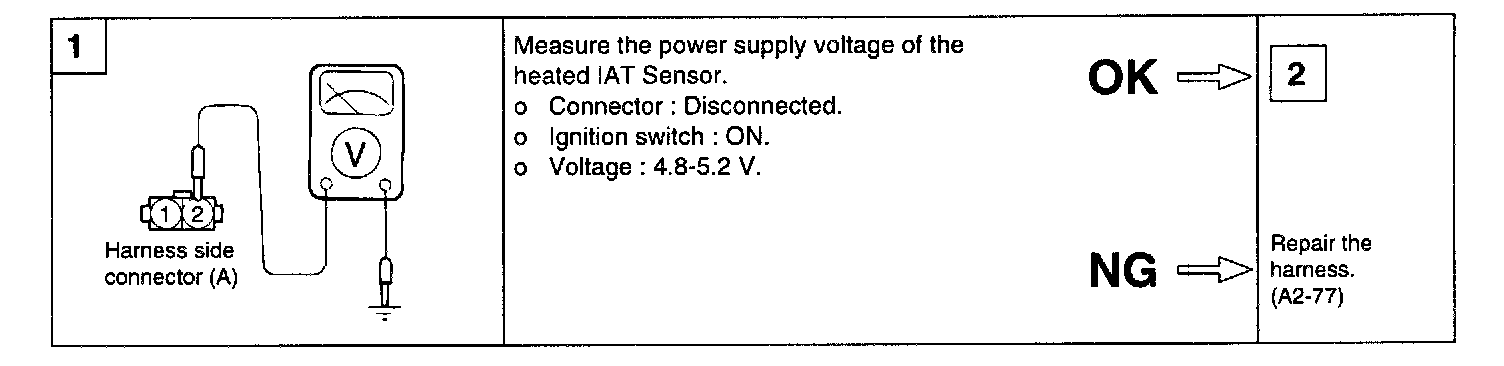

HARNESS INSPECTION PROCEDURES

SENSOR INSPECTION
1. Using the voltmeter, measure the sensor voltage.





2. Measure the voltage between the IAT sensor terminal 1 and 2.

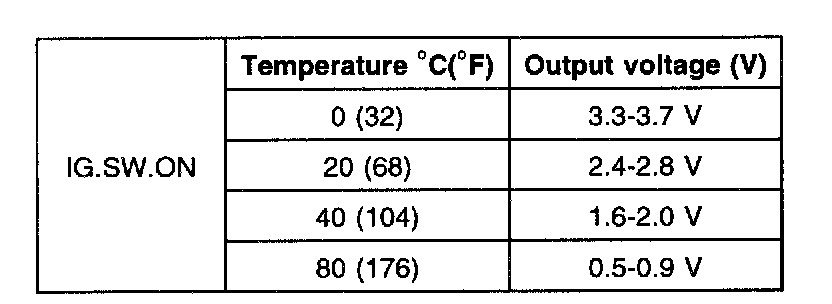

3. If the voltage deviates from the standard value, replace the intake air temperature sensor assembly.
