Ignition Coil: Description and Operation

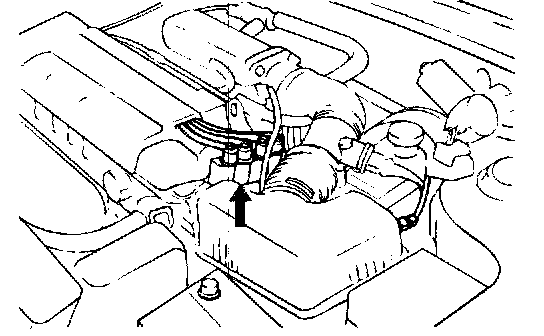

IGNITION COIL
When the ignition power transistor is turned ON by the signal from the ECM It sends the signal to the ignition coil, then primary current is shut off and a high voltage is induced in the secondary coil.
