A/T - Diagnostic Trouble Code Identification

Group: TRANSAXLE

Number: 00-40-017

Date: NOVEMBER, 2000

Model: 1999-01 ACCENT, 1999-2000 ELANTRA/TIBURON

Subject:
1999-2001 ACCENT, 1999-2000 ELANTRA/TIBURON TRANSAXLE DIAGNOSTIC TROUBLE CODES

DESCRIPTION
1995-2001 Accent and 1996-2000 Elantra and Tiburon vehicles share common transaxle diagnostic trouble codes (DTC). Elantra and Tiburon vehicles produced from 6/1/99 production and 2000-2001 Accent vehicles use a valve body with six solenoids and have several new DTCs.

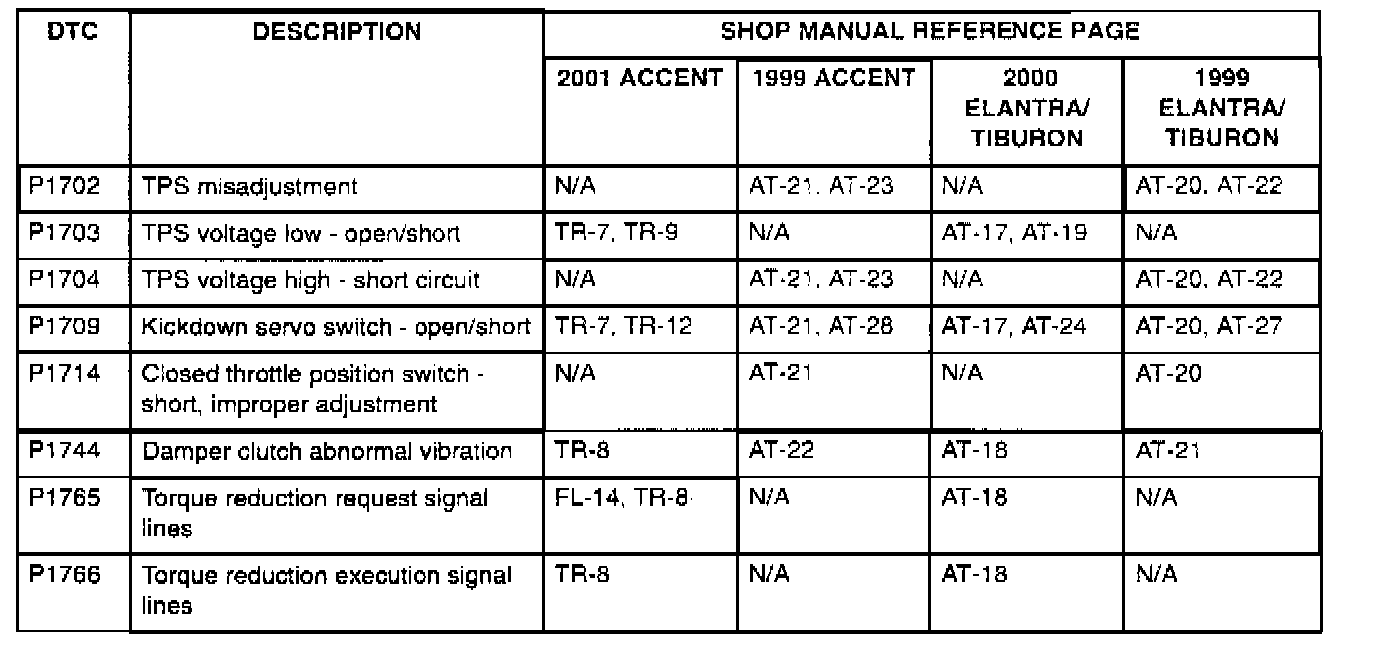

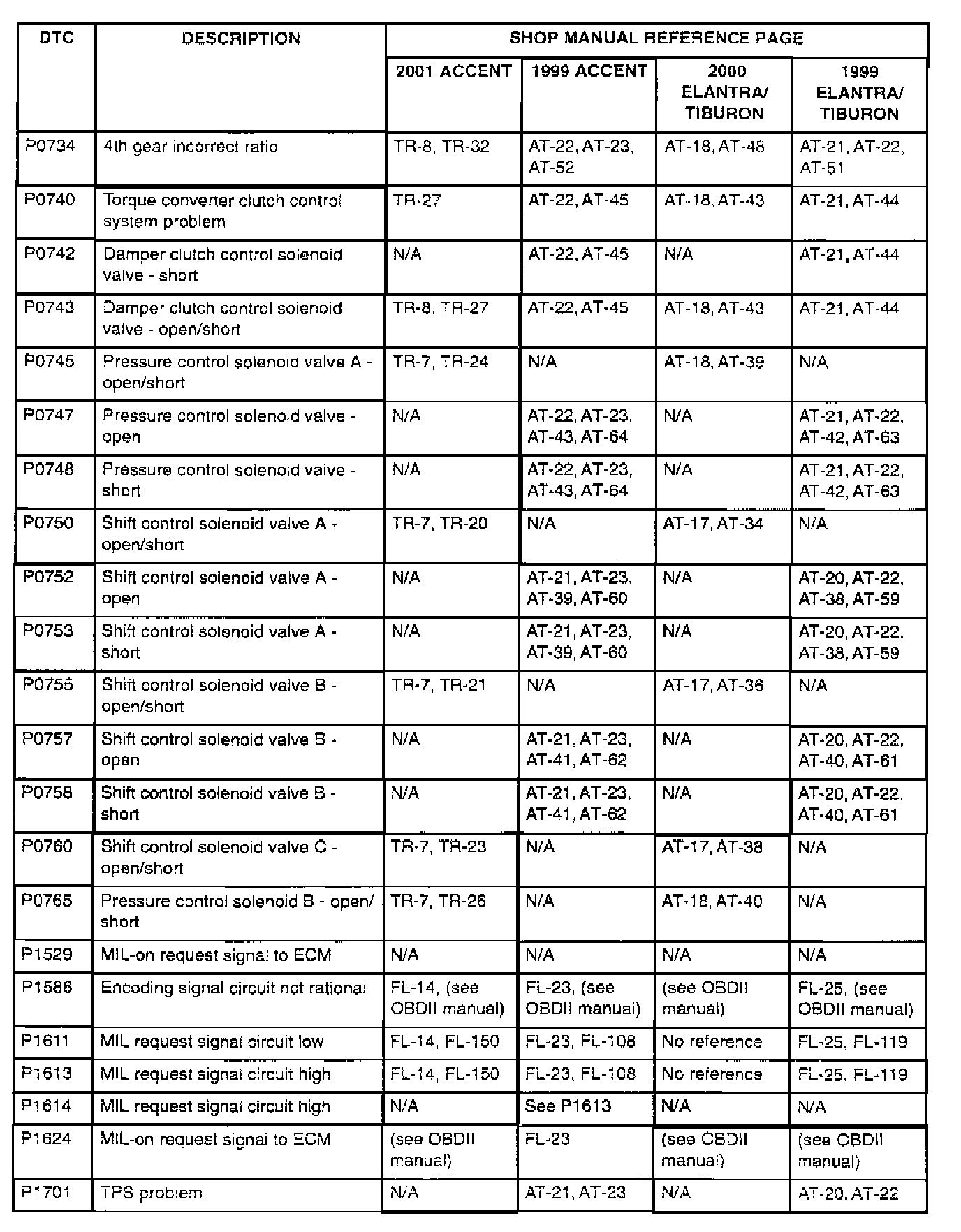

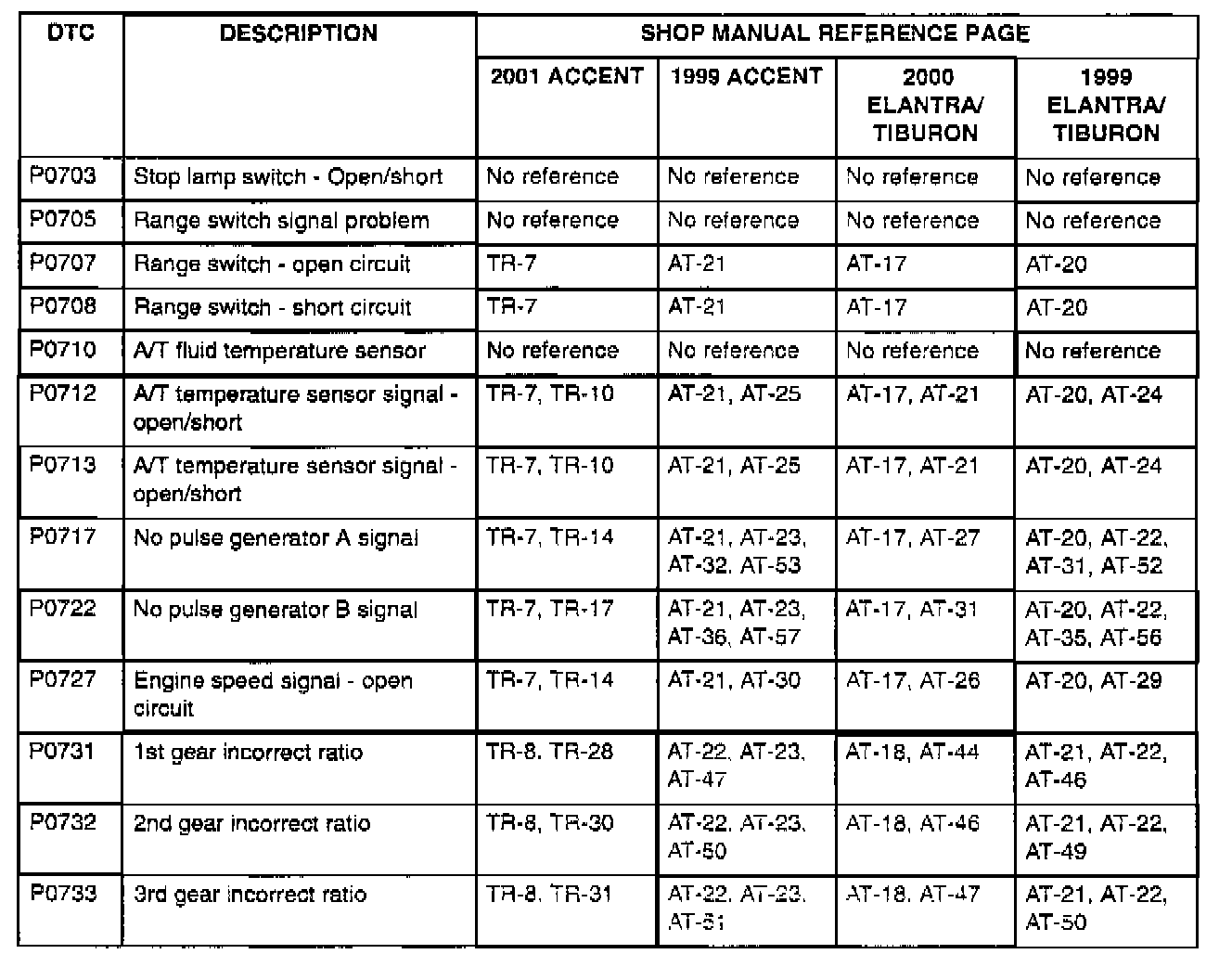

DTC information can be found in the shop manuals listed. Some codes may be found in the Engine Fault Code Diagnostic Manual (OBDII) as shown.
