Idle Speed/Throttle Actuator - Electronic: Testing and Inspection

CIRCUIT DIAGRAM

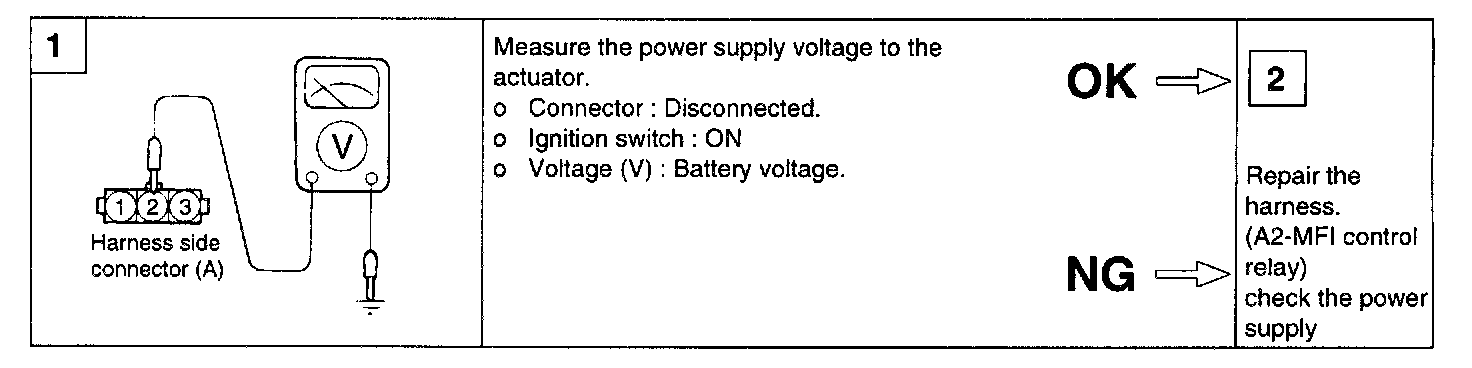

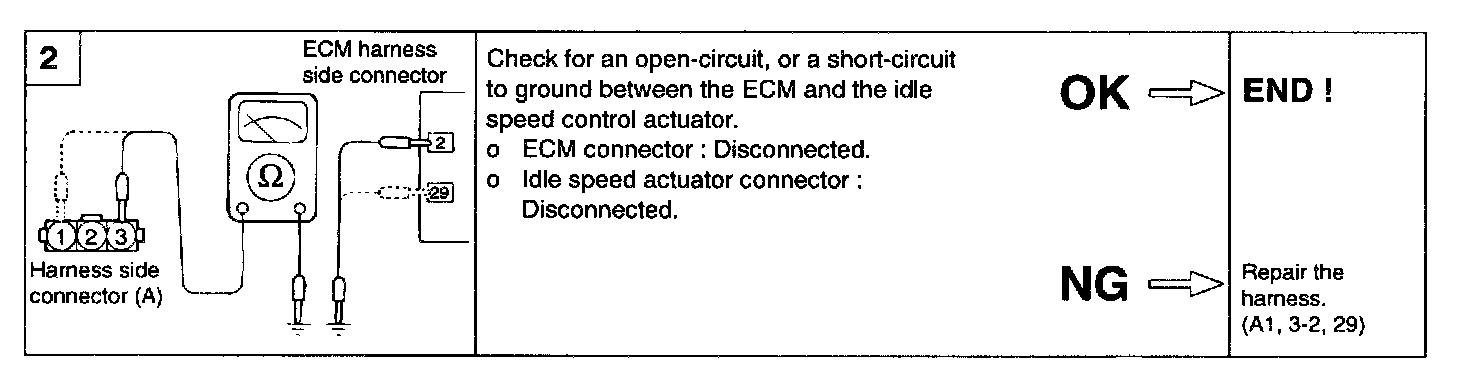

HARNESS INSPECTION PROCEDURE

ACTUATOR INSPECTION
1. Disconnect the connector at the idle speed control actuator.

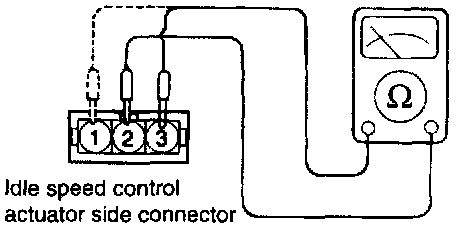

2. Measure the resistance between terminals.

Standard Value
Terminal 1 and 2 10.5 - 14 Ohms
Terminal 2 and 3 10 - 12.5 Ohms [at 20 °C (68°F)]

3. Connect the connector at the idle speed control actuator.
