Engine Control Module: Testing and Inspection

CIRCUIT DIAGRAM

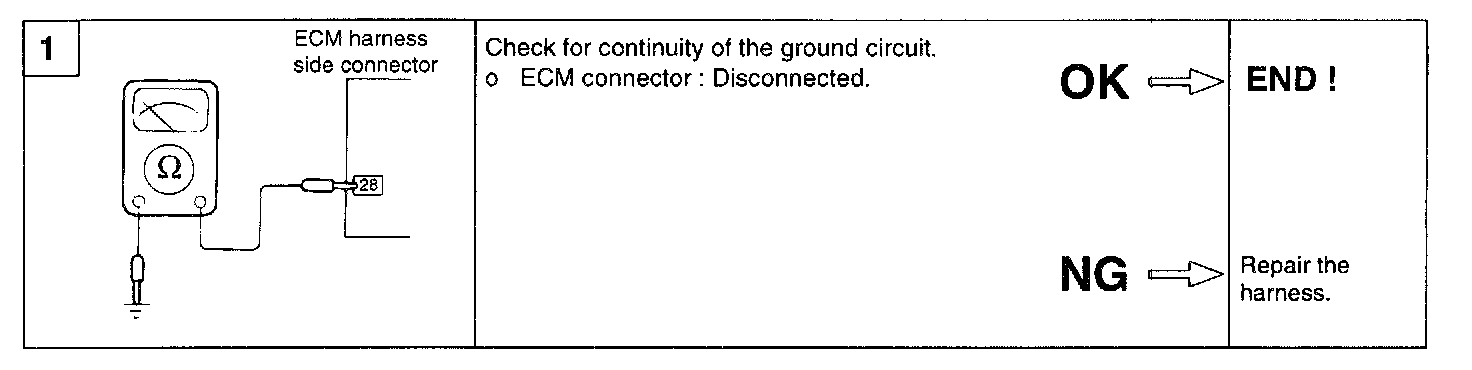

HARNESS INSPECTION PROCEDURE





ENGINE CONTROL MODULE
Check the internal control module ROM/RAM error.


TROUBLESHOOTING HINTS
- If the ground wire of the ECM is not connected securely to ground, the ECM will not operate correctly.
- If we replace ECM ROM without further diagnosis, the problem may reoccur.
