Power Distribution

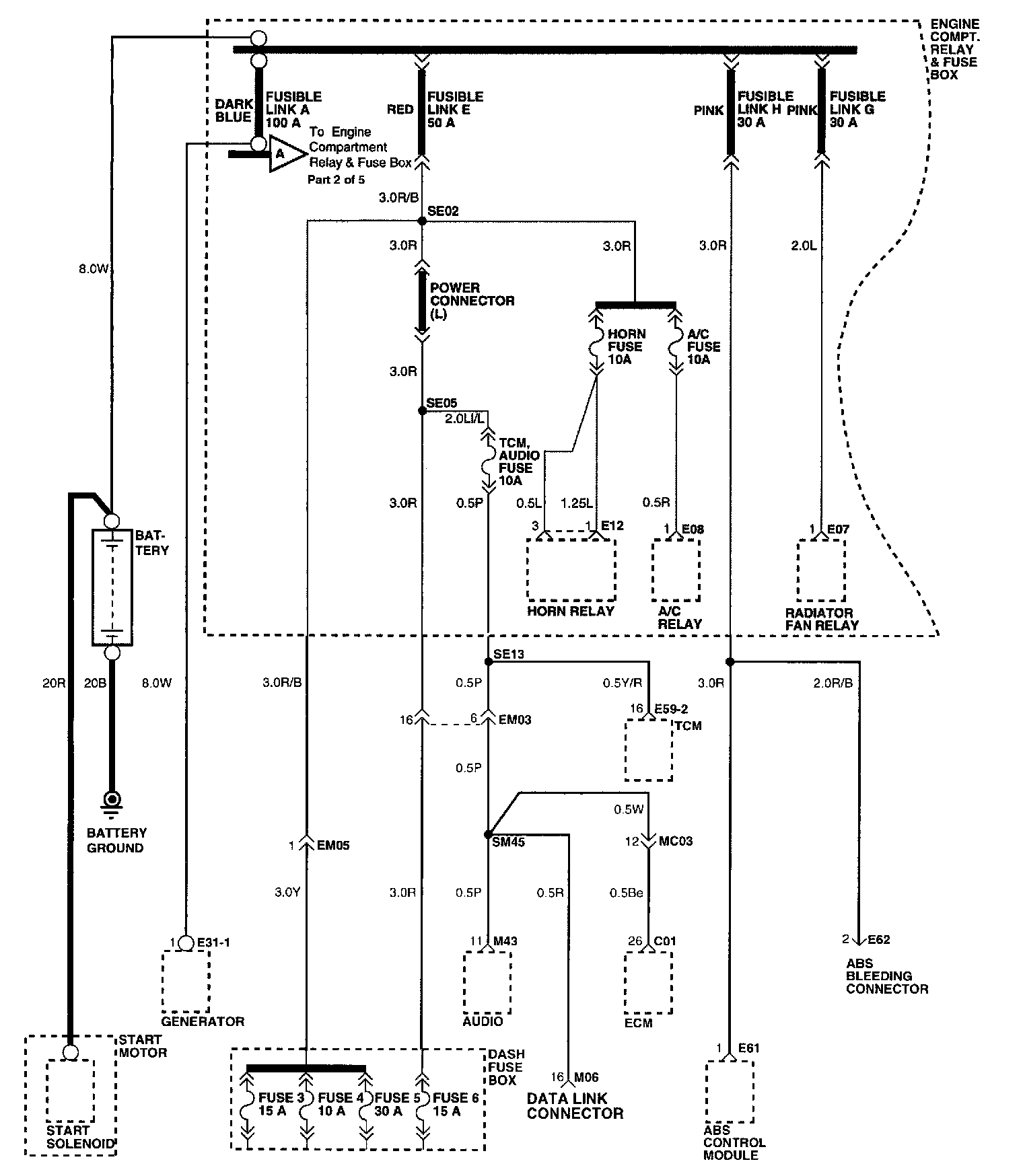

Power Distribution (Part 1 Of 5):

(Part 1 of 5)
ABS Control Module
Audio
Battery
Dash Fuse Box
Engine Compartment Relay & Fuse Box
- A/C Relay
- Horn Relay
- Radiator Fan Relay
Generator
Start Motor
TCM

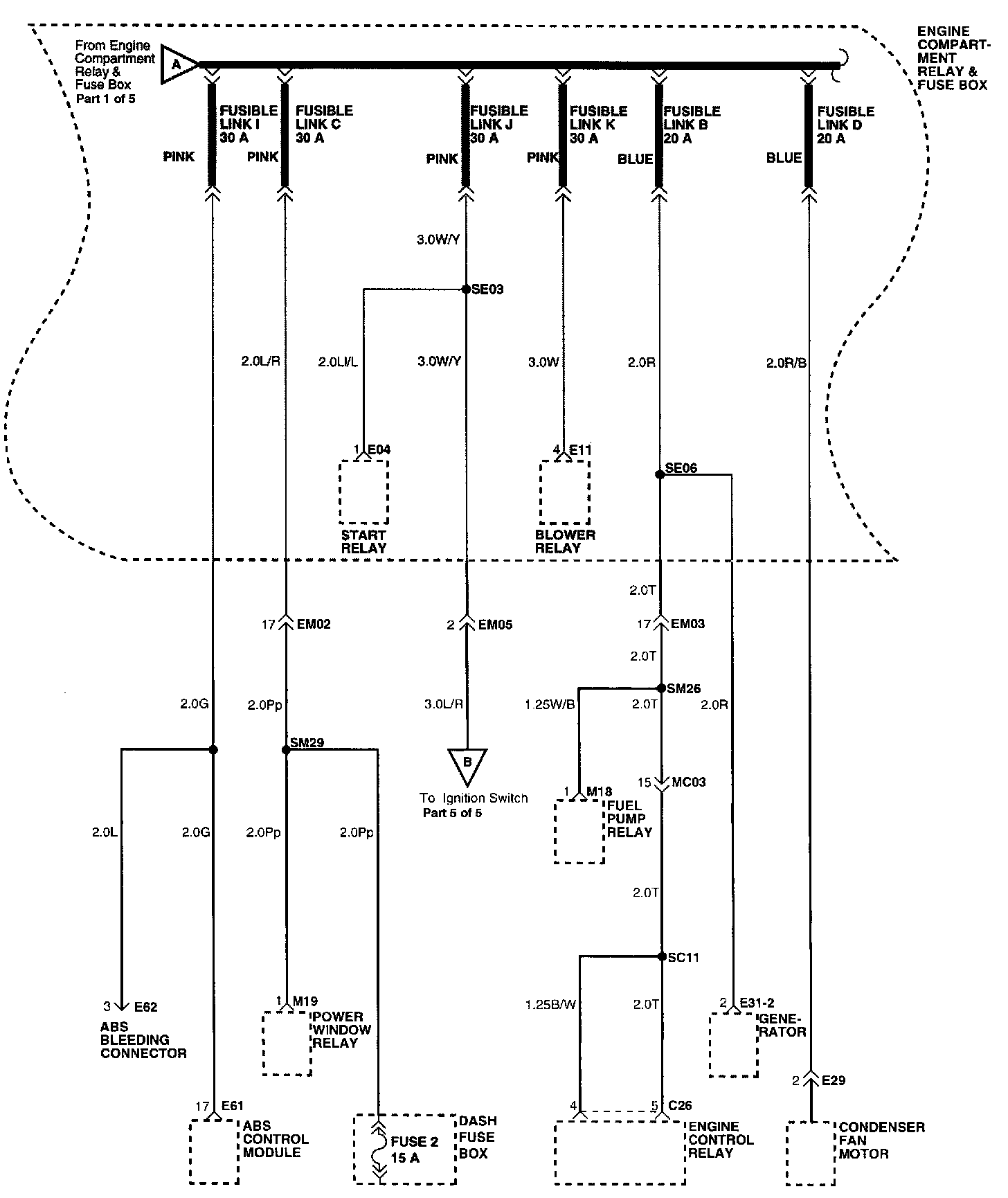

Power Distribution (Part 2 Of 5):

(Part 2 of 5)
ABS Control Module
Condenser Fan Motor
Dash Fuse Box
Engine Compartment Relay & Fuse Box
- Blower Relay
- Start Relay
Engine Control Relay
Fuel Pump Relay
Generator
Power Window Relay

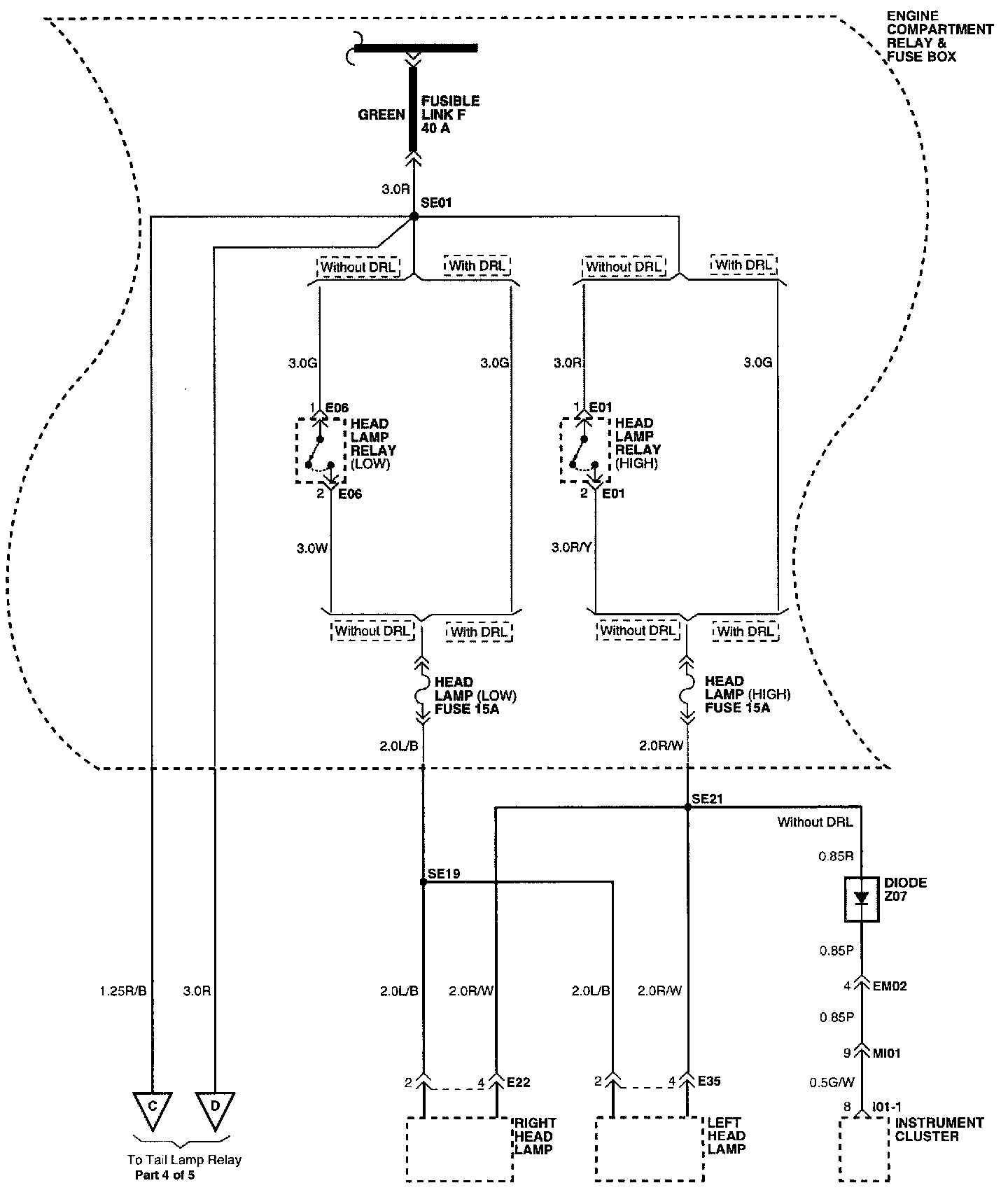

Power Distribution (Part 3 Of 5):

(Part 3 of 5)
Diode
Engine Compartment Relay & Fuse Box
- Head Lamp Relay
Instrument Cluster
Left Headlamp
Right Headlamp

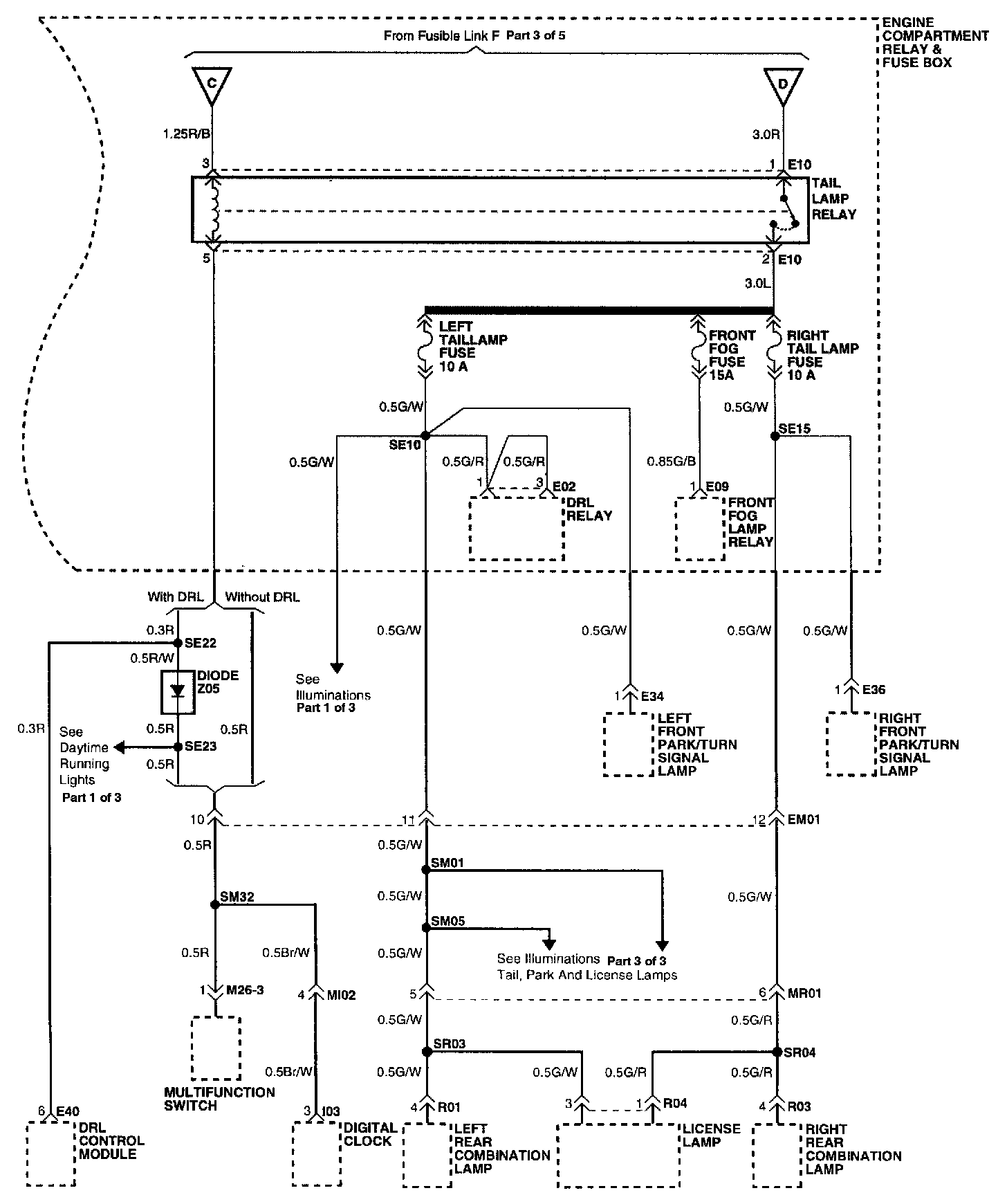

Power Distribution (Part 4 Of 5):

(Part 4 of 5)
Digital Clock
Diode
DRL Control Module
Engine Compartment Relay & Fuse Box
- DRL Relay
- Front Fog Lamp Relay
- Tail Lamp Relay
Left Front Park/Turn Signal Lamp
Left Rear Combination Lamp
License Lamp
Multifunction Switch
Right Front Park/Turn Signal Lamp
Right Rear Combination Lamp

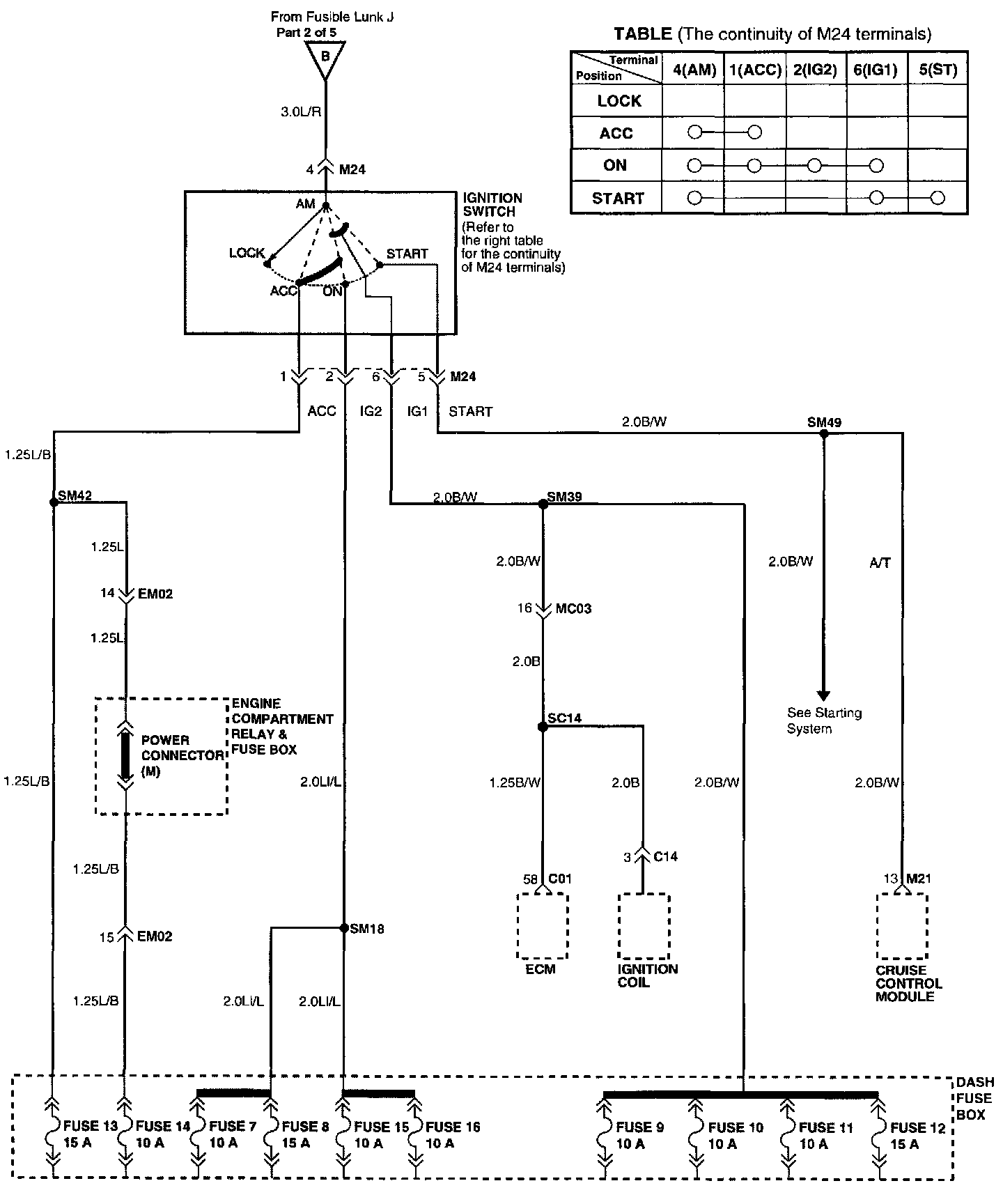

Power Distribution (Part 5 Of 5):

(Part 5 of 5)
Cruise Control Module
Dash Fuse Box
ECM
Engine Compartment Relay & Fuse Box
Ignition Coil
Ignition Switch

Connector Configurations Are Found At Vehicle / Diagrams / Connector Views.
Connector Views

Connector And Component Locations Are Found At Power and Ground Distribution / Locations.
Locations
