Ignition Cable: Service and Repair

INSTALLATION OF SPARK PLUG CABLE

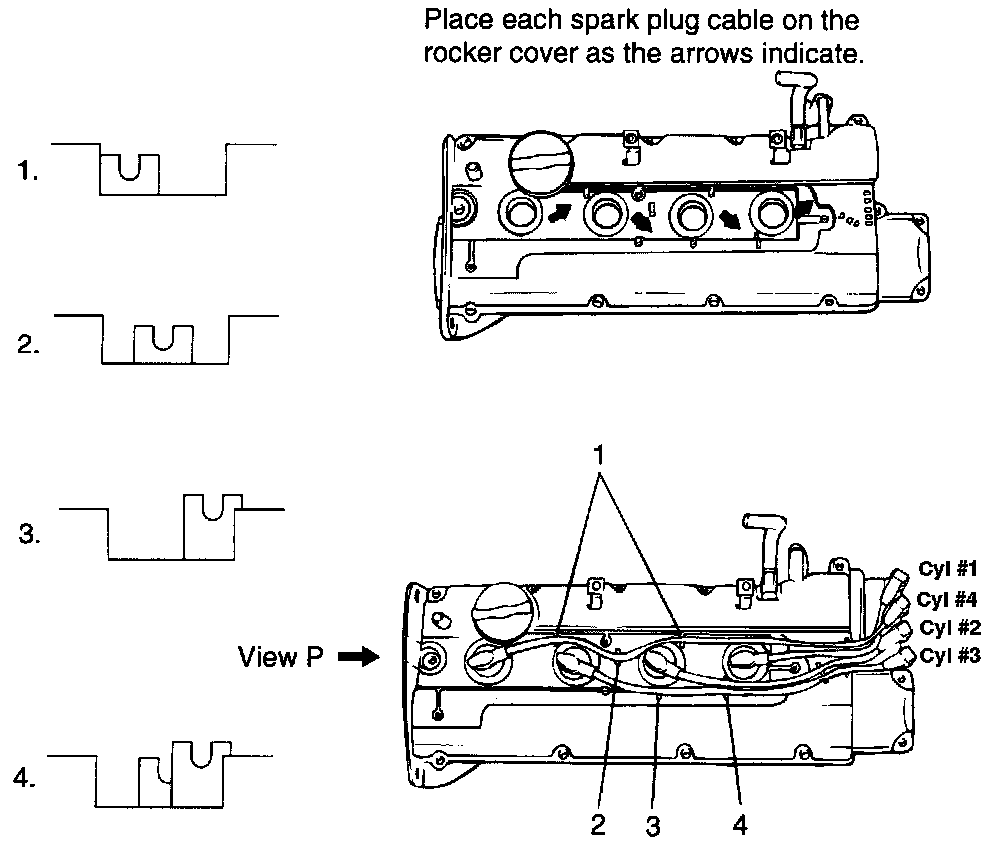

Improper arrangement of spark plug cables will induce voltage between the cables, causing misfiring and developing a surging at acceleration in high-speed operation. Therefore, be careful to arrange the spark plug cables properly as shown in the illustration.
