Alignment - Specifications and Manual Correction
Group: CHASSISNumber: 99-50-001
Date: FEBRUARY, 1999
Model: 1999 ELANTRA & TIBURON
Subject
1999 ELANTRA & TIBURON ALIGNMENT SPECIFICATION
SHOP MANUAL CORRECTION
DESCRIPTION:
This TSB revises the "Rear Toe-In" and "Front Camber" specifications in the 1999 Elantra - Tiburon Shop Manual, Volume 2 in the Suspension System, Section SS-3 "Service Standard."

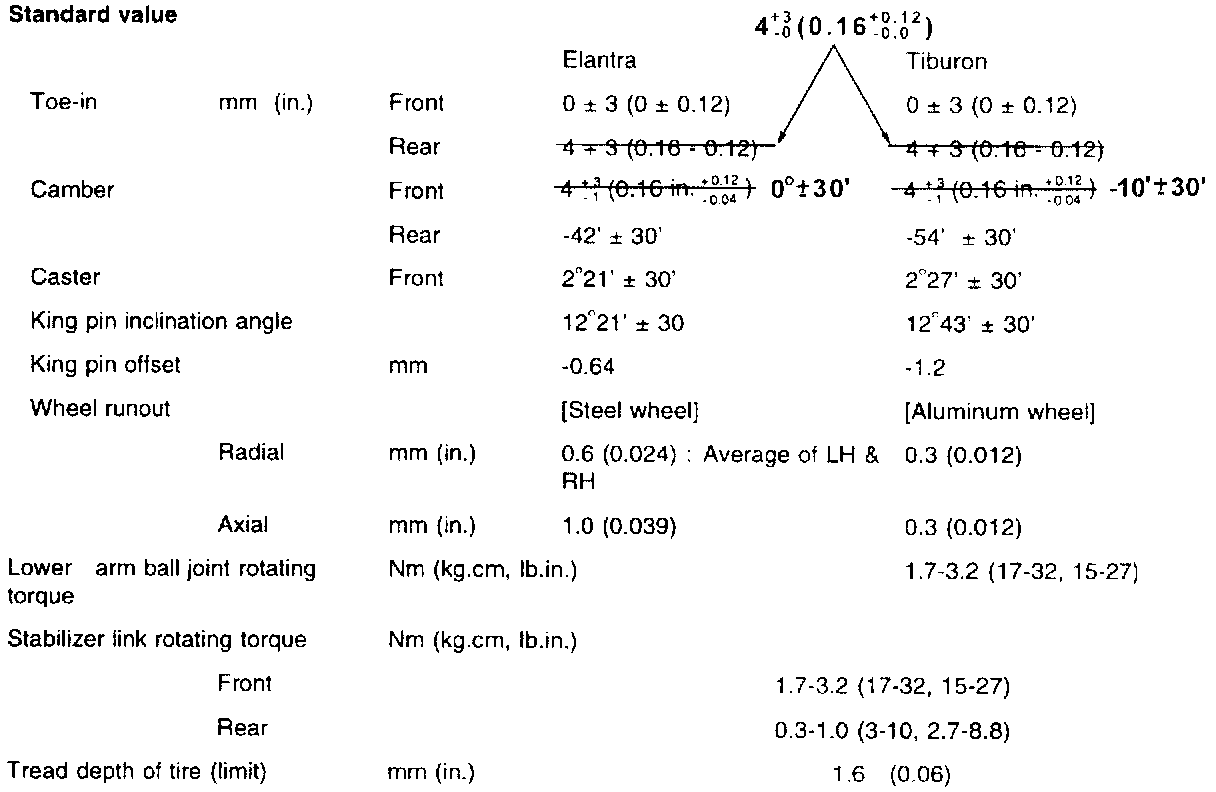

The correct specifications are shown in the table.
SERVICE STANDARD
