Rear Combination Lamp




1. Disconnect the negative terminal from the battery.
2. Open the trunk lid.

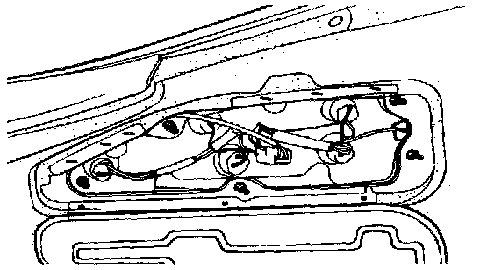

3. With rear luggage cover opened, remove the mounting nuts. (5EA)
4. Disconnect the connector, remove the lamp assembly.
5. Installation is the reverse order of removal procedure.
