Electrical Diagrams

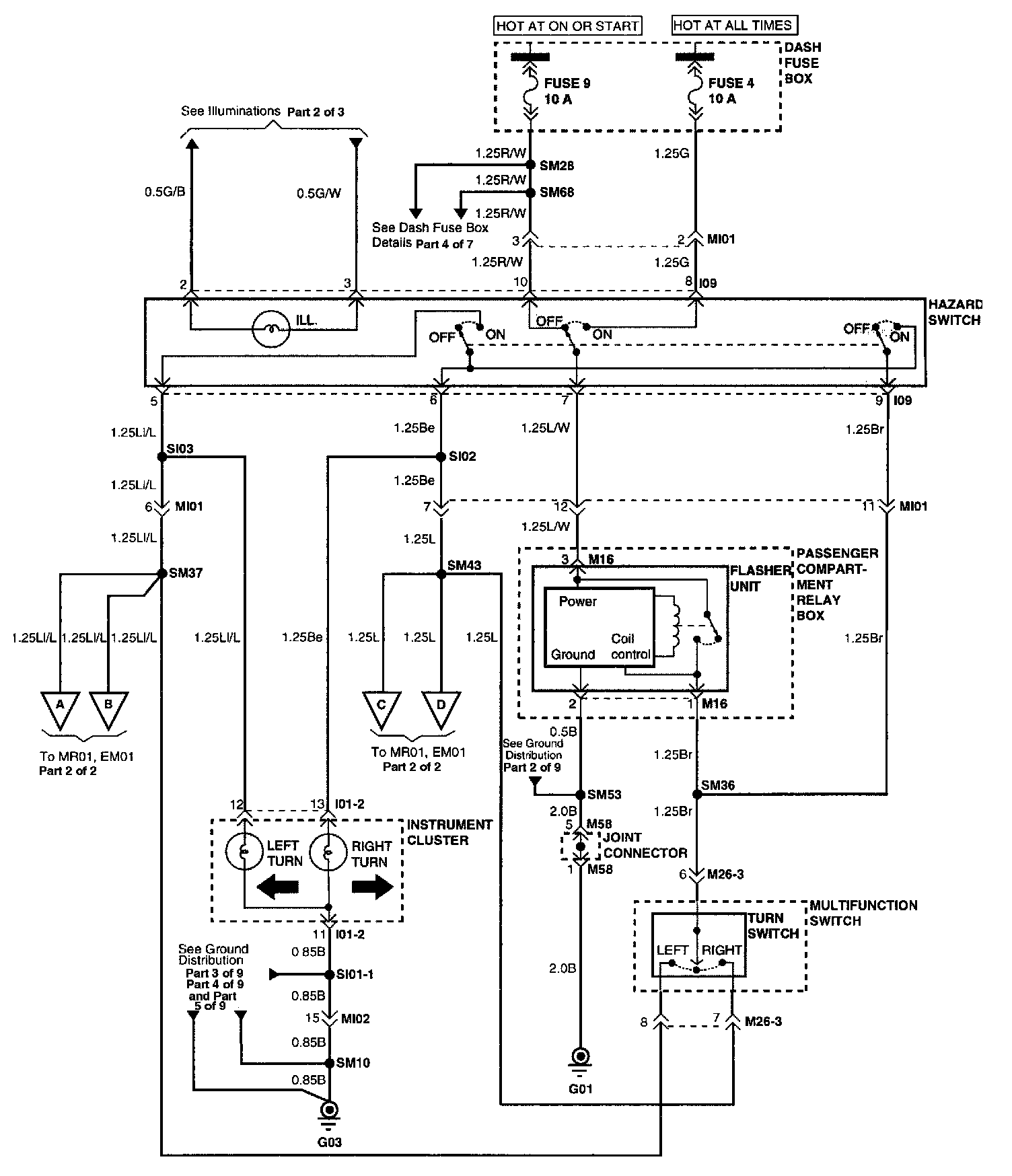

Turn/Hazard Lamps (Part 1 Of 2):

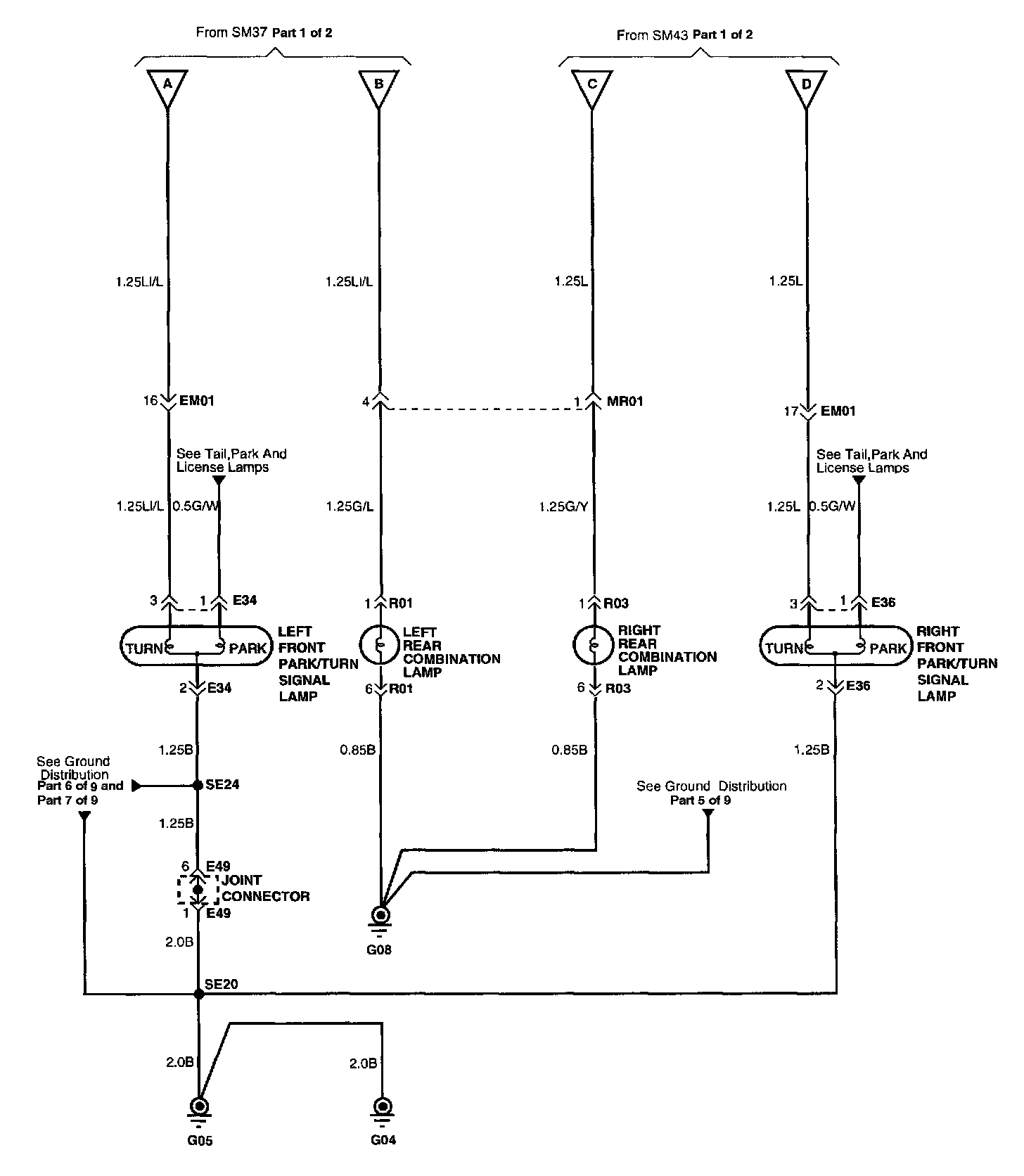

Turn/Hazard Lamps (Part 2 Of 2):





Circuit Diagrams

Connector Configurations Are Found At Vehicle / Diagrams / Connector Views.
Connector Views

Connector And Component Locations Are Found At Turn Signals / Locations.
Locations
