Home >> Hyundai >> 1999 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Lighting and Horns >> Trunk Lamp >> Diagrams >> Electrical Diagrams >> Without Sunroof

Without Sunroof

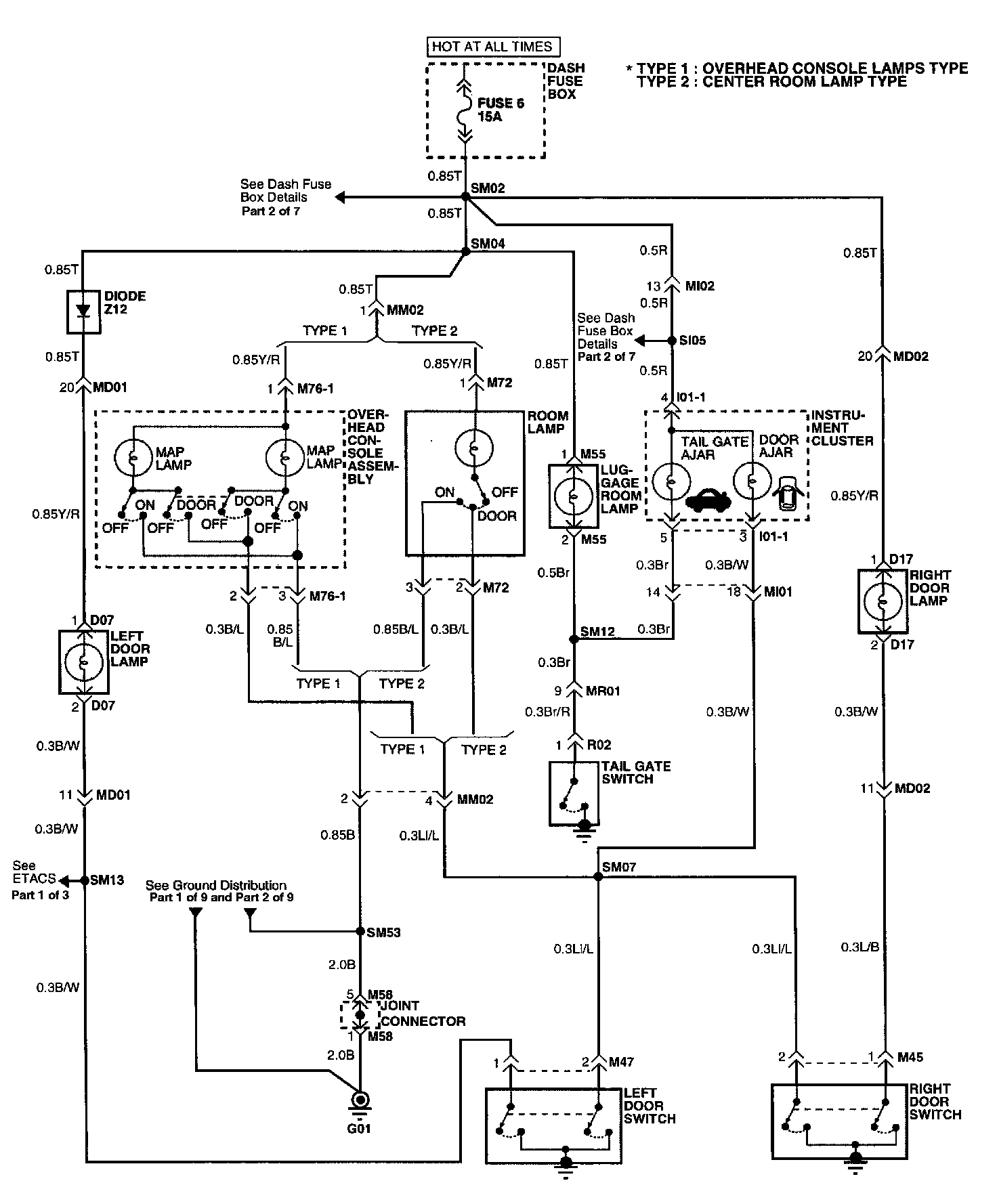

Courtesy And Luggage Room Lamps (Part 2 Of 2):





Circuit Diagram

Connector Configurations Are Found At Vehicle / Diagrams / Connector Views.
Connector Views

Connector And Component Locations Are Found At Trunk Lamp / Locations.
