Component Tests and General Diagnostics

Check that the following components operates normally as timing chart.

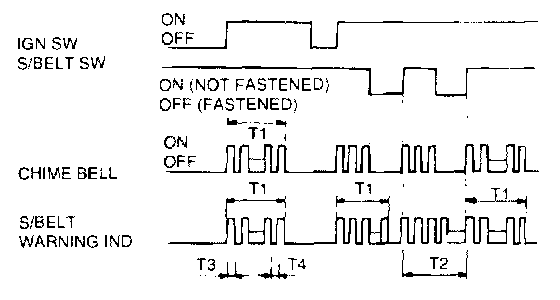

Seat Belt Warning




1. Operating characteristic
2. T1 :6 ± 1 sec. T2 : MAX. 6 ± 1 sec. T3, T4 : 0.3 ± 0.1 sec.

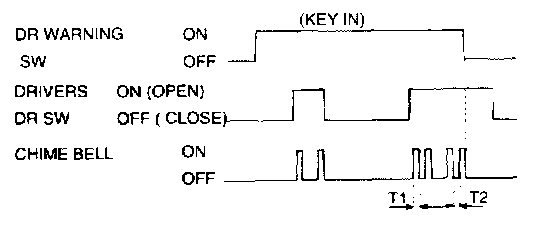

Door Warning




1. Operating characteristic
2. T1, T2 : 0.3 ± 0.1 sec.

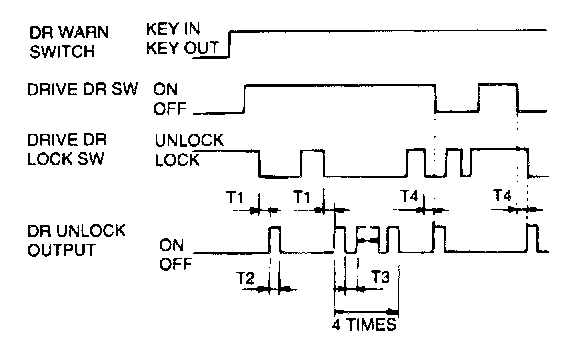

Ignition key reminder




1. Operating characteristic
2. T1 : 0.5 Sec. T2 : 1 sec. T3 : 0.5 sec. T4 : Max. 0.5 sec.
