Without Air Bag

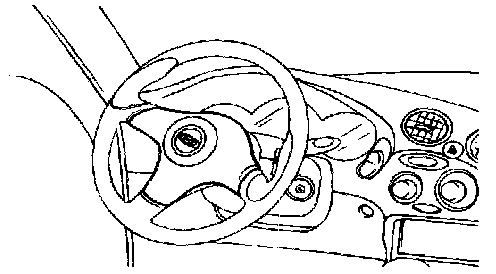

1. Remove the horn pad mounting screws (2EA) and the horn pad.

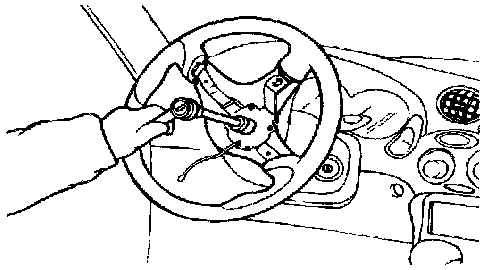

2. Remove the steering wheel mounting nut and the steering wheel.

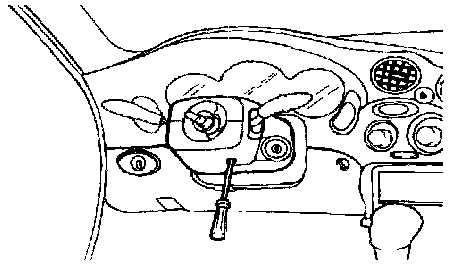

3. Remove the steering column upper shroud using a flat blade screwdriver and the steering column lower shroud by removing the mounting screws (3EA) as shown in the illustration.

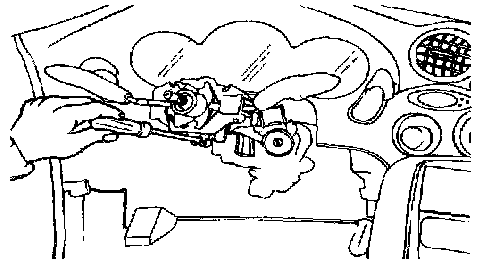

4. Remove the multifunction switch assembly mounting screws (3EA) and the multifunction switch assembly.
5. Installation is the reverse order of removal procedure.
