FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Hyundai
>>
1999
>>
Tiburon L4-2.0L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Relays and Modules - Lighting and Horns
>>
Fog/Driving Lamp Relay
>>
Locations
Fog/Driving Lamp Relay: Locations
Located in the Engine Compartment Fuse/Relay Box

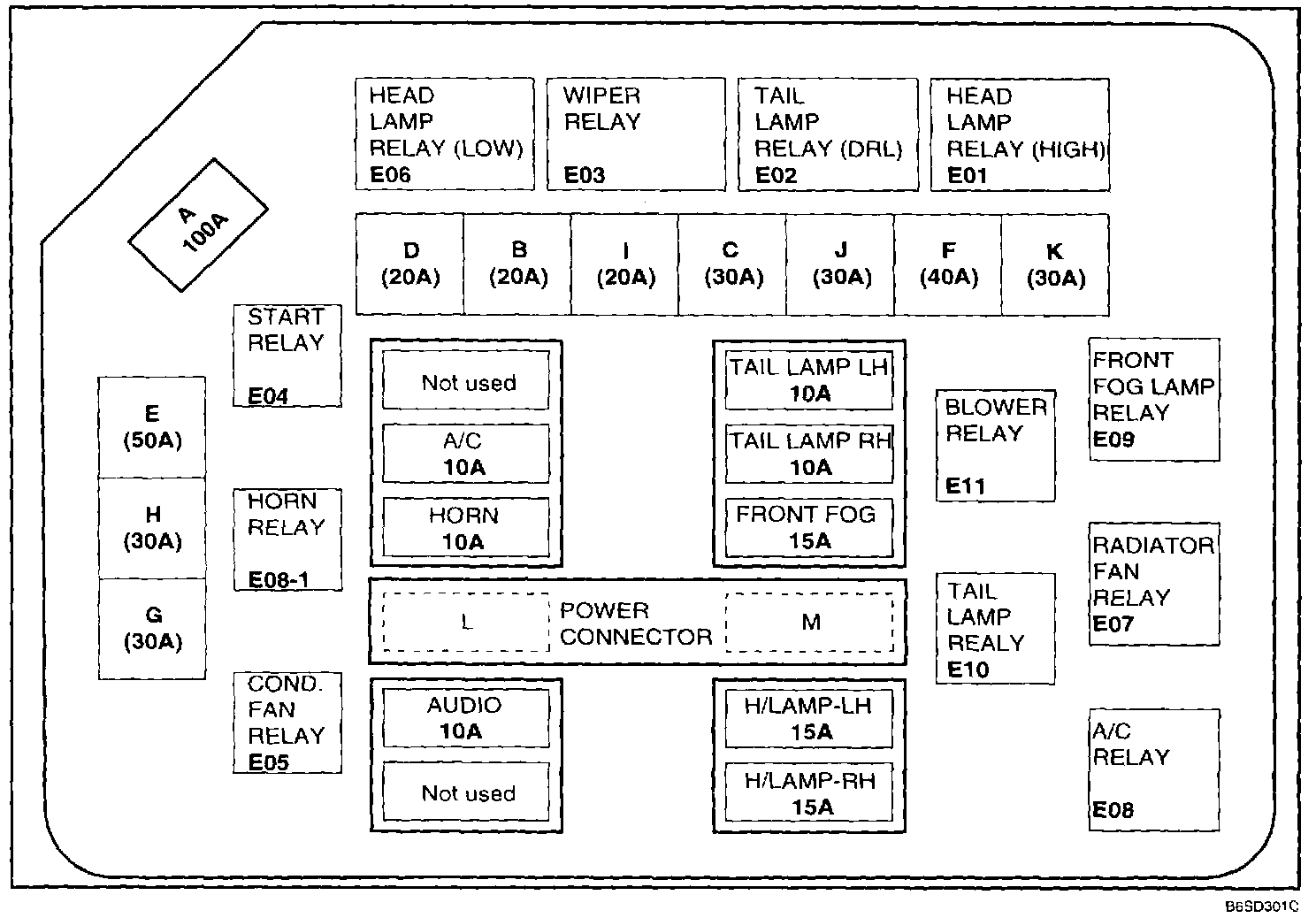

Engine Compartment Relay And Fuse Box Layout:
