Headlamp: Service and Repair

1. Disconnect the battery negative terminal.

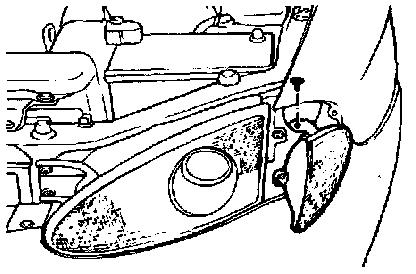

2. Remove the screw and the turn signal lamp.

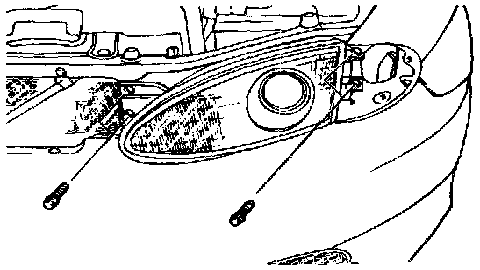

3. Remove the head lamp mounting bolts (4EA) and remove the head lamp assembly.
4. Installation is the reverse order of removal procedure.
