Center Mounted Brake Lamp: Service and Repair

1. Disconnect the battery negative terminal.




2. Using a flat blade screwdriver, detach 2 blanking covers on both sides of the lamp.

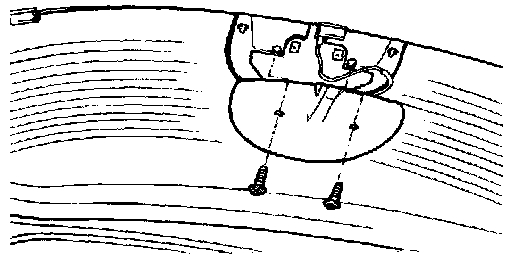

3. Remove the mounting screws (2EA).

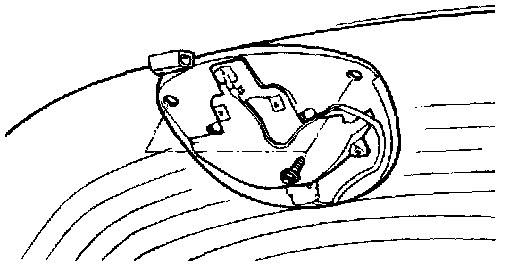

4. Disconnect the connector and remove the lamp assembly.
5. Installation is the reverse order of removal procedure.
