Home >> Hyundai >> 1999 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection

Instrument Cluster / Carrier: Testing and Inspection

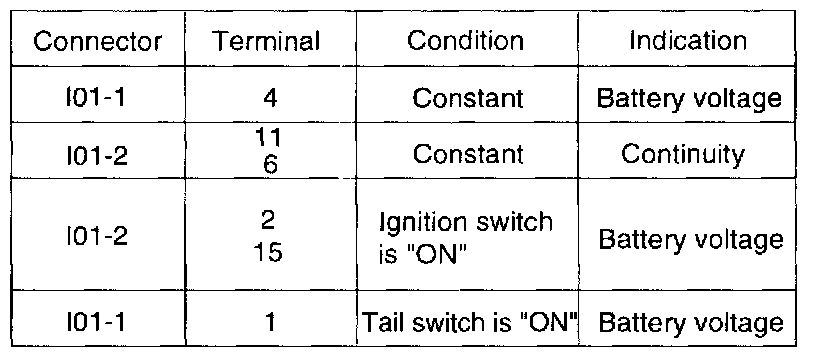

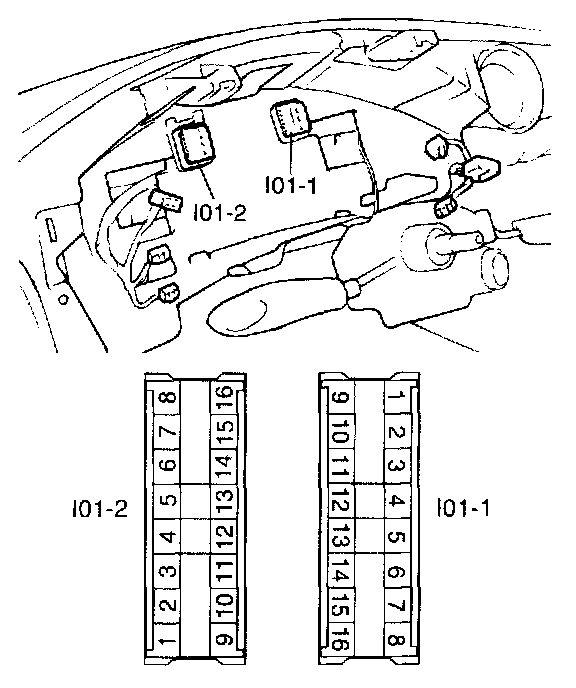

Remove the instrument cluster, check for the indication between each terminals (harness side) and ground.
