Home >> Hyundai >> 1999 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Manual Control System Testing (W/O Electronic Climate Control) >> Symptom Diagnostic Procedures >> Only Condenser Fan Does Not Run

Only Condenser Fan Does Not Run

Only Condenser Fan Does Not Run

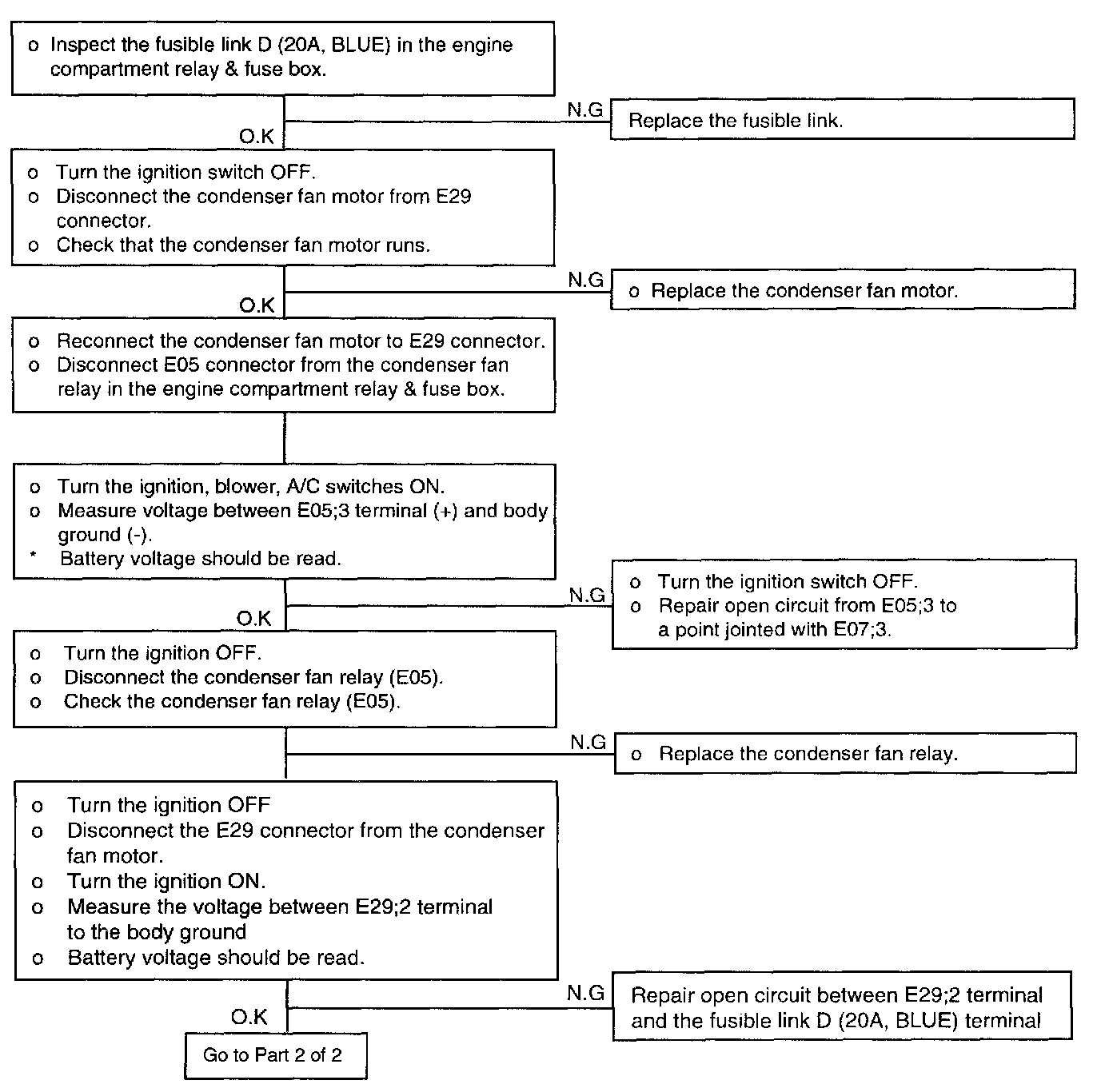

Part 1 of 2

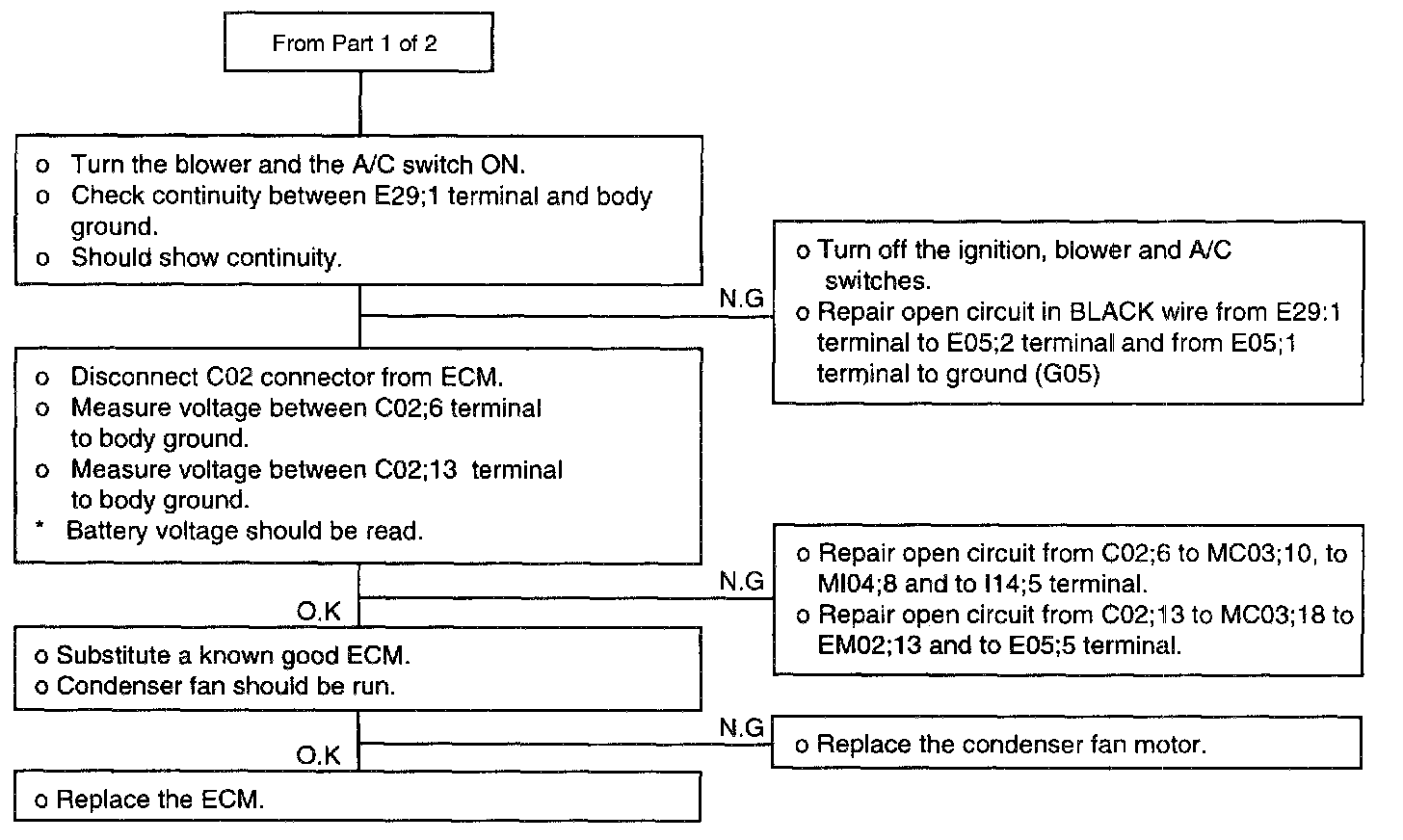

Part 2 of 2
