Home >> Hyundai >> 1999 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Manual Control System Testing (W/O Electronic Climate Control) >> Symptom Diagnostic Procedures >> Compressor Does Not Come on Even Though the Condenser Fan Runs

Compressor Does Not Come on Even Though the Condenser Fan Runs

Compressor Does Not Come on Even Though the Condenser Fan Run

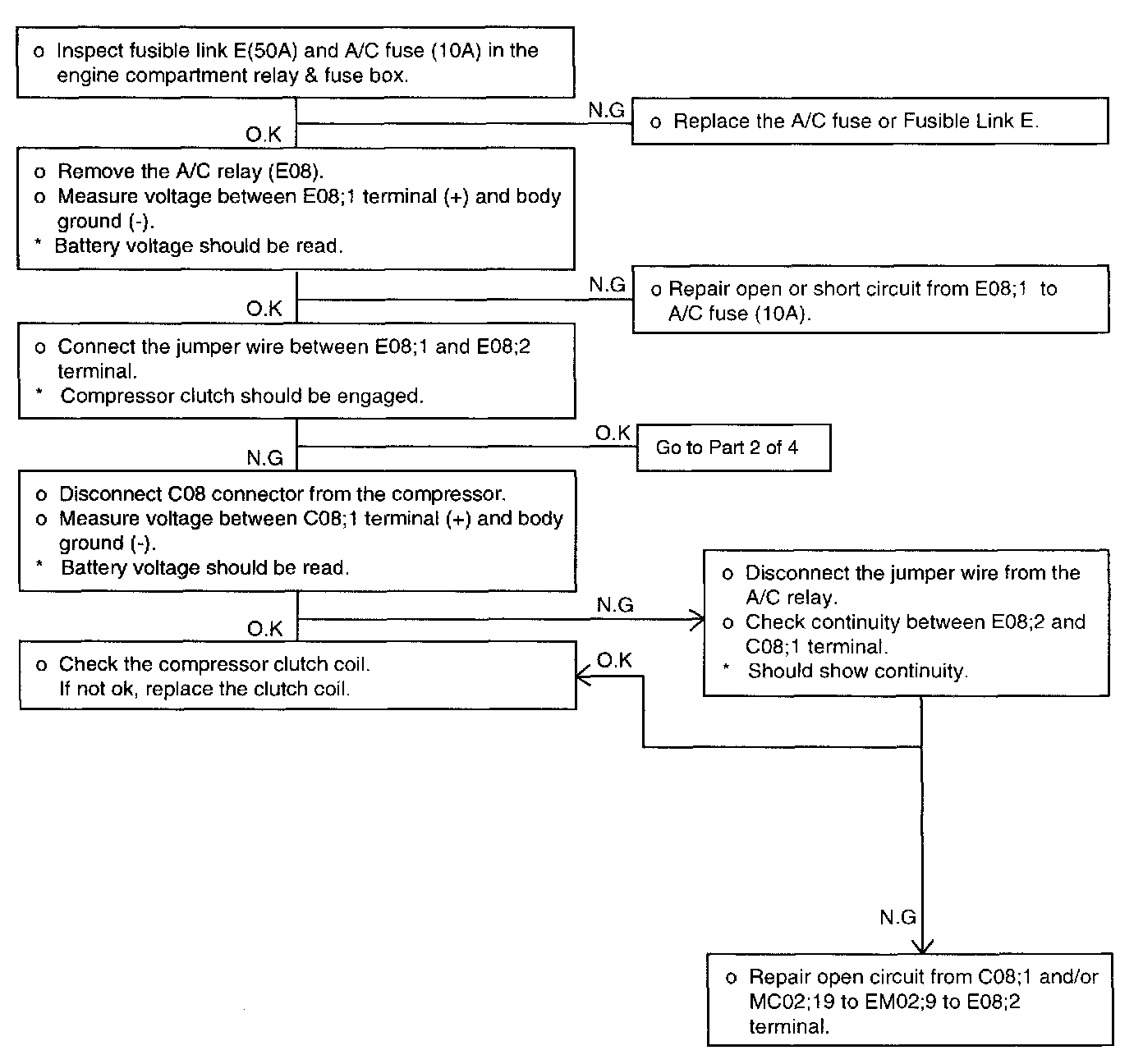

Part 1 of 4

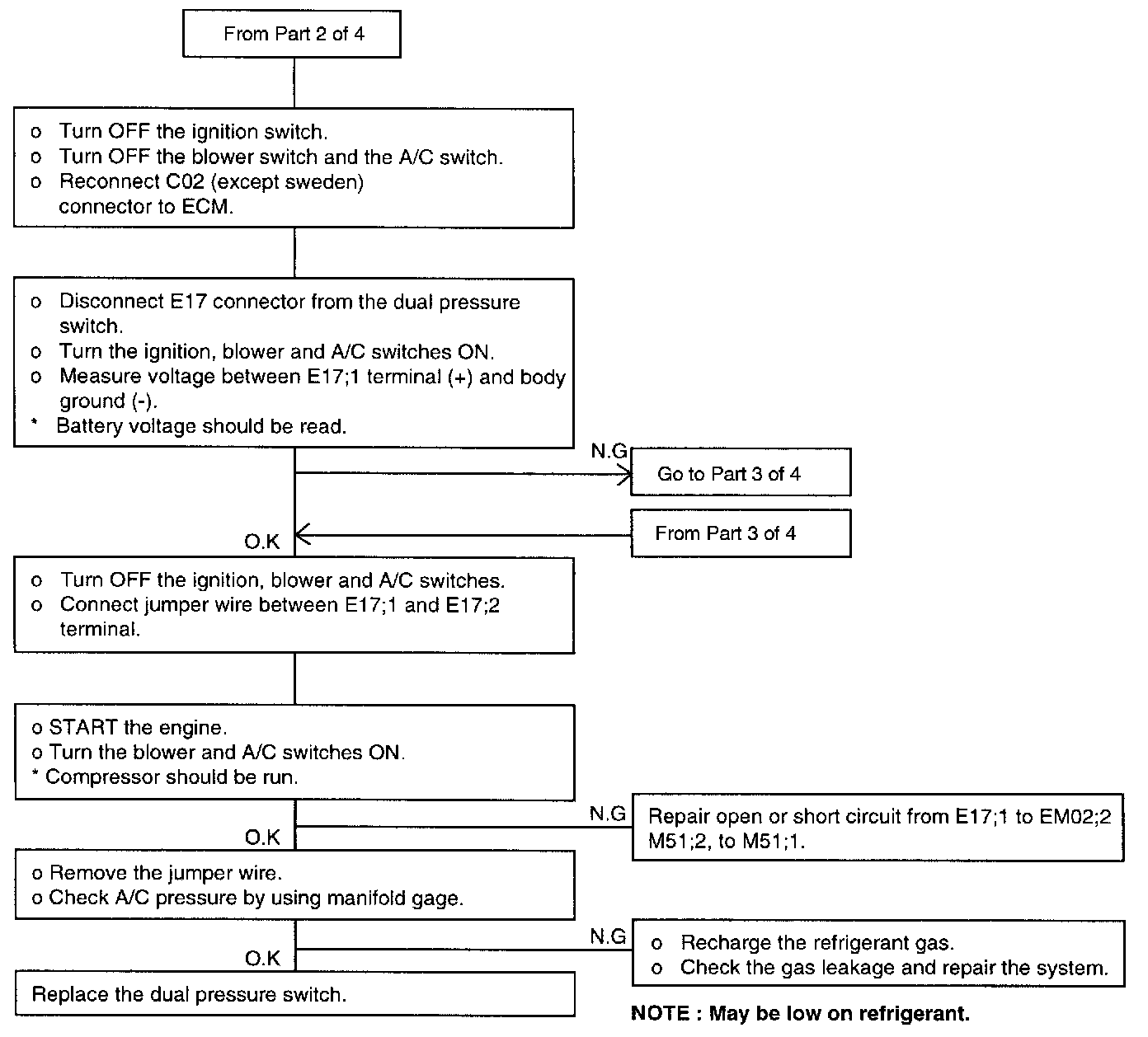

Part 2 of 4

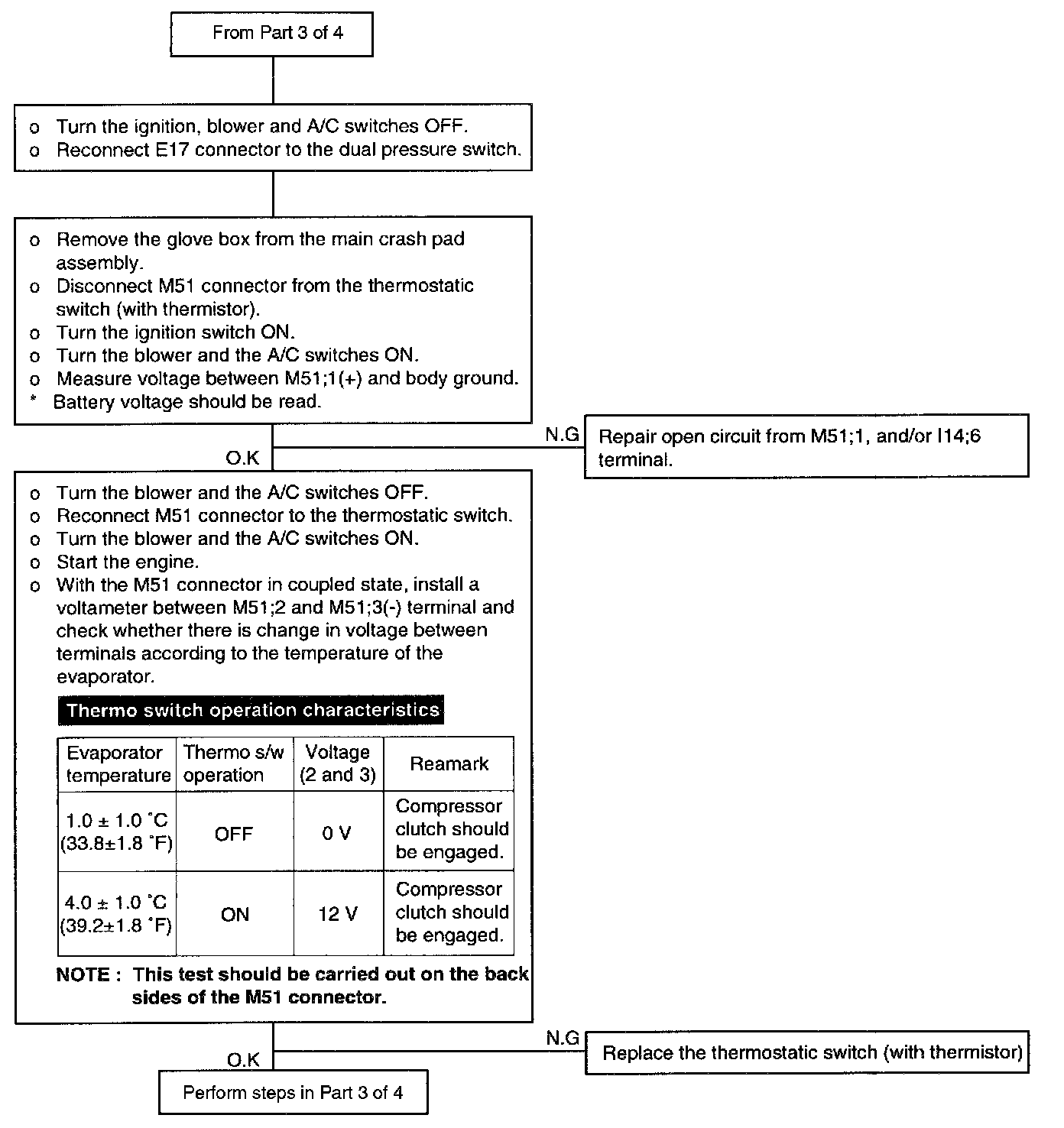

Part 3 of 4




Part 4 of 4
