Liquid Tube (A)

1. Discharge refrigerant from the air conditioning system.
2. Remove the radiator upper grille.

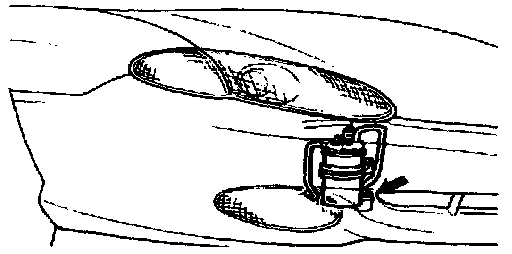

3. Disconnect condenser side fitting of the liquid tube (A).

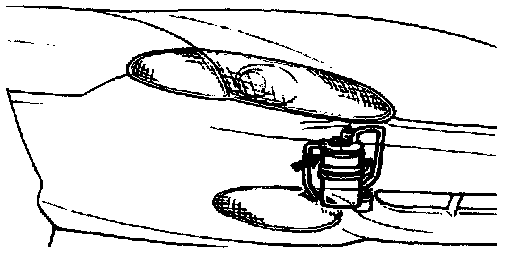

4. Disconnect receiver drier side fitting of the liquid tube (A).




5. Remove the liquid tube (A)
6. Installation is the reverse order of removal.
