Home >> Hyundai >> 1999 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor Resistor >> Locations

Blower Motor Resistor: Locations

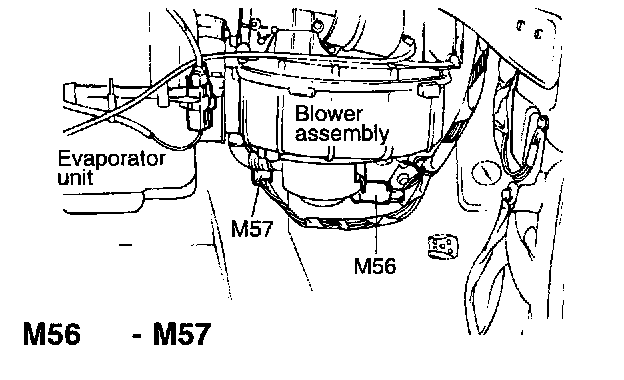

M56 (Blower Motor), M57 (Blower Resistor):
