Drive Belt Tensioner: Service and Repair

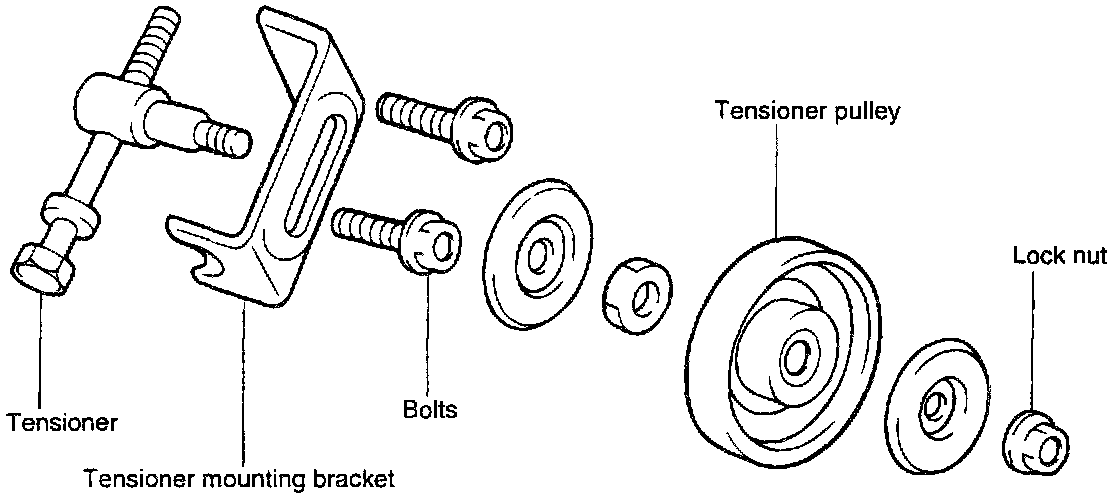

COMPONENTS

REMOVAL




1. Lift up the vehicle.
2. Remove the RH-side front wheel and tire.
3. Remove the under cover.




4. Remove the locking nut of the tensioner.
5. Remove the tensioner pulley and tensioner assembly from the tensioner mounting bracket.




6. Remove the mounting bolt of the tensioner mounting bracket.
7. Remove the tensioner mounting bracket.

INSTALLATION
Installation is the reverse order of removal.

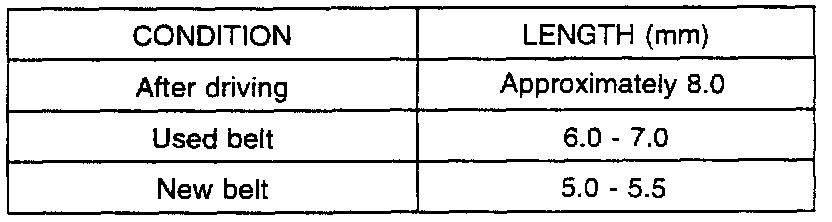

NOTE: After installation, lower the vehicle and check whether the tension of the compressor drive belt is proper or not. If not, adjust properly.
