Main Harness

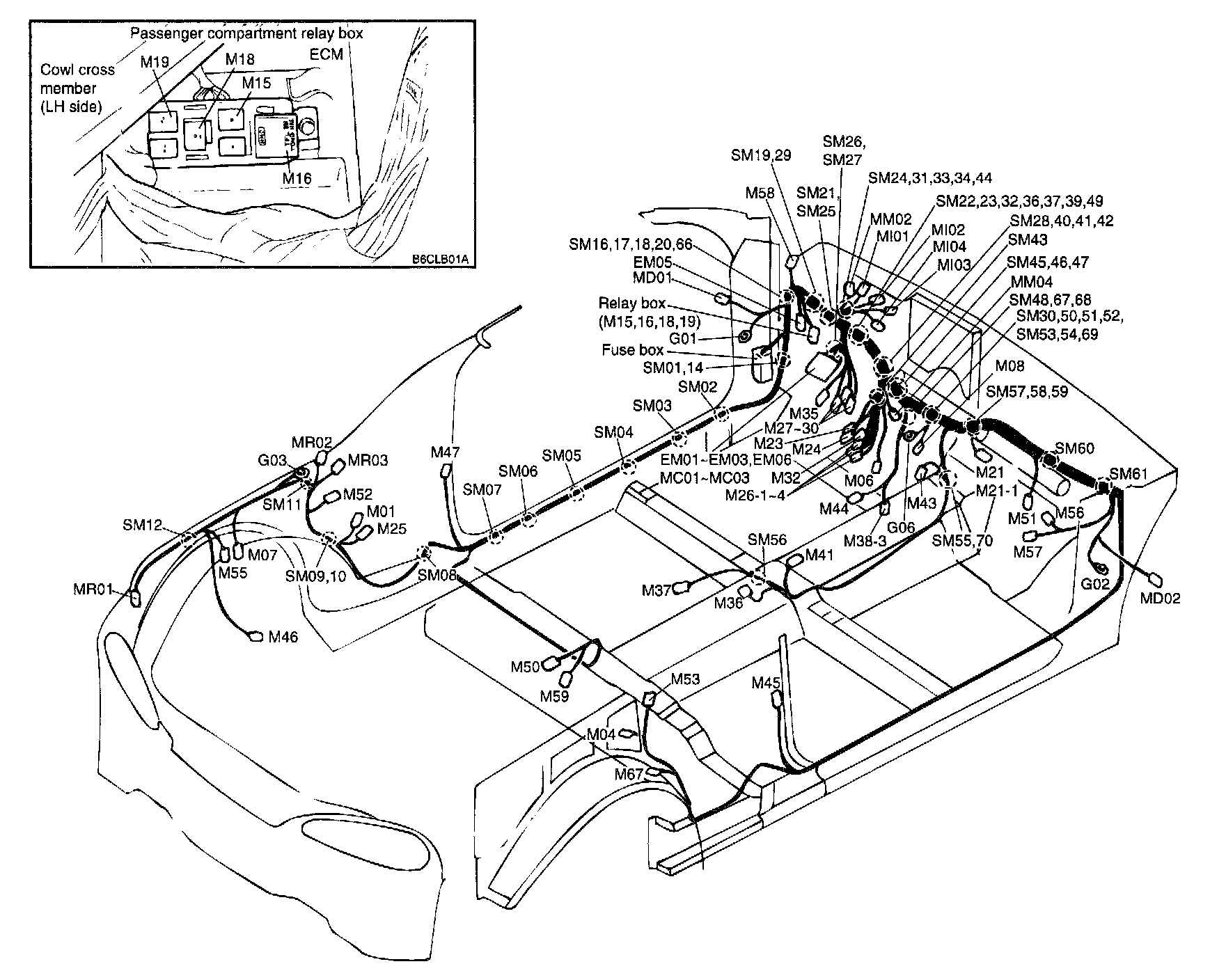

Harness Layout


M01 Left rear wheel sensor
M04 Rear wiper relay
M06 Data link connector
M07 Electronic power steering control module
M08 Fresh/Recirc switch & Heater control panel ILL.
M15 Pre-excitation resistor
M16 Flasher unit
M18 Fuel pump relay
M19 Power window relay
M21 Cruise control module
M21-1 Joint connector (Without cruise)
M23 Ignition key lock solenoid & Door warning switch
M24 Ignition switch
M25 Rear defogger relay
M26-1 Multifunction switch (Without EPS)
M26-2 Multifunction switch
M26-3 Multifunction switch
M26-4 Multifunction switch (With EPS)
M26-5 Multifunction switch (Angular sensor)
M26-6 Multifunction switch (Horn switch)
M27 Stop lamp switch (Without cruise)
M28 Stop lamp switch (With cruise)
M29 Starter clutch pedal position switch
M30 Cruise clutch pedal position switch
M32 Chime bell
M35 A/T shift and key lock control module
M36 Parking brake switch
M37 Driver seat belt switch
M38-3 ETACM
M41 A/T shift lever
M43 Audio
M44 Cigarette lighter
M45 Right door switch
M46 Canister close valve (CCV)
M47 Left door switch
M50 Fuel sender & Fuel pump motor
M51 Thermostatic switch (A/C Thermist)
M52 Left quarter speaker
M53 Right quarter speaker
M55 Luggage room lamp
M56 Blower motor
M57 Blower resistor
M58 Joint connector
M59 Fuel tank pressure sensor
M67 Right rear wheel sensor
MC01 Connection with C0NTR0L harness
MC02 Connection with C0NTR0L harness
MC03 Connection with C0NTR0L harness
MD01 Connection with LH D00R harness
MD02 Connection with RH D00R harness
MI01 Connection with INSTRUMENT harness
MI02 Connection with INSTRUMENT harness
MI03 Connection with SWITCH EXT. harness
MI04 Connection with INSTRUMENT harness
MM02 Connection with R00F harness
MM04 Connection with AIR BAG harness
MR01 Connection with LUGGAGE R00M harness
MR02 Connection with TAIL GATE EXT. harness
MR03 Connection with TAIL GATE EXT.harness
EM01 Connection with ENGINE harness
EM02 Connection with ENGINE harness
EM03 Connection with ENGINE harness
EM05 Connection with ENGINE harness
EM06 Connection with ENGINE harness
G01 GR0UND
G02 GR0UND
G03 GR0UND
G06 GR0UND
