Home >> Hyundai >> 1999 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Ignition System >> System Diagram

System Diagram

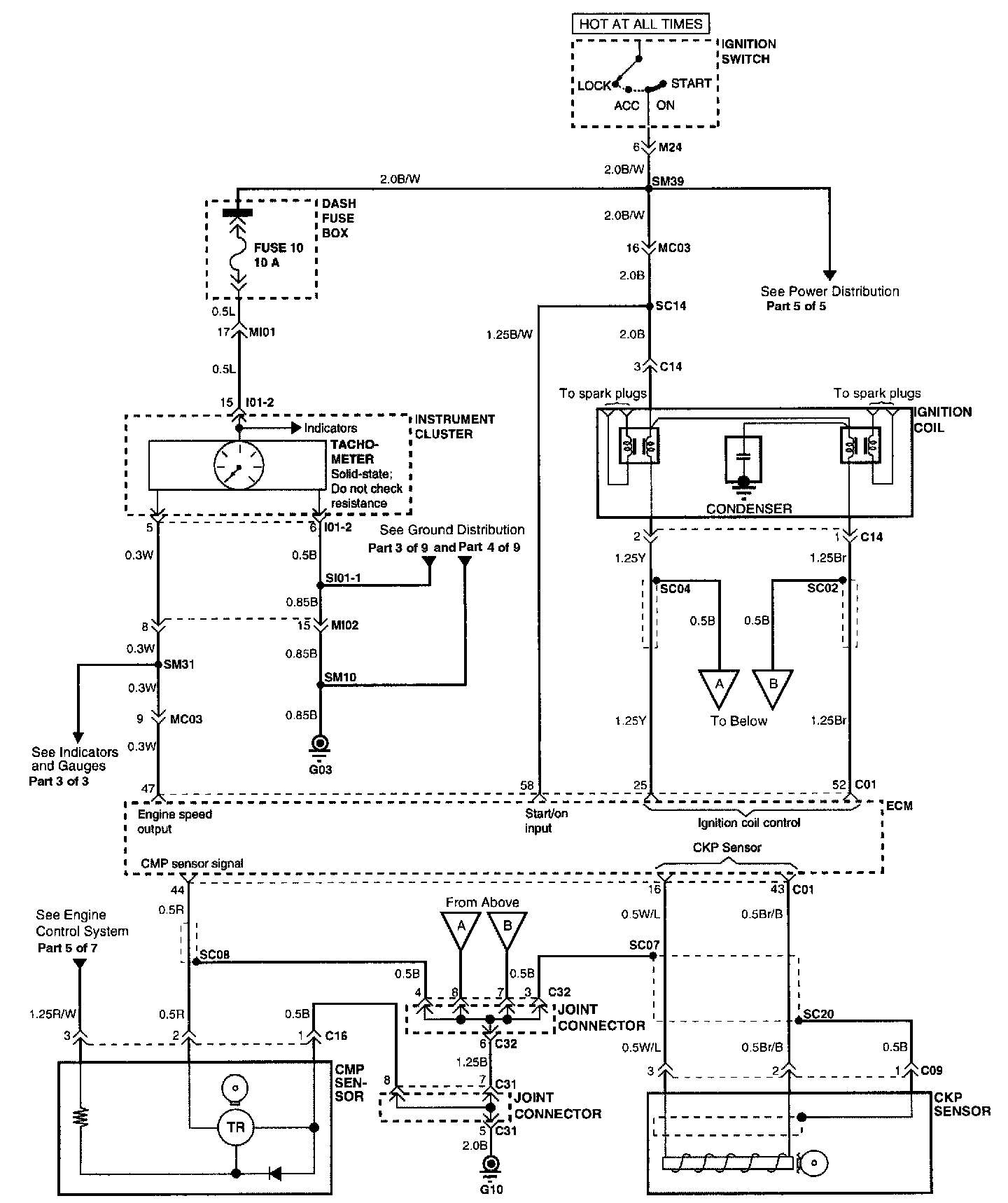

Circuit Diagram

Connector Configurations Are Found At Vehicle / Diagrams / Connector Views.

Connector And Component Locations Are Found At Ignition System / Locations.
