Home >> Hyundai >> 1999 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Oxygen Sensor

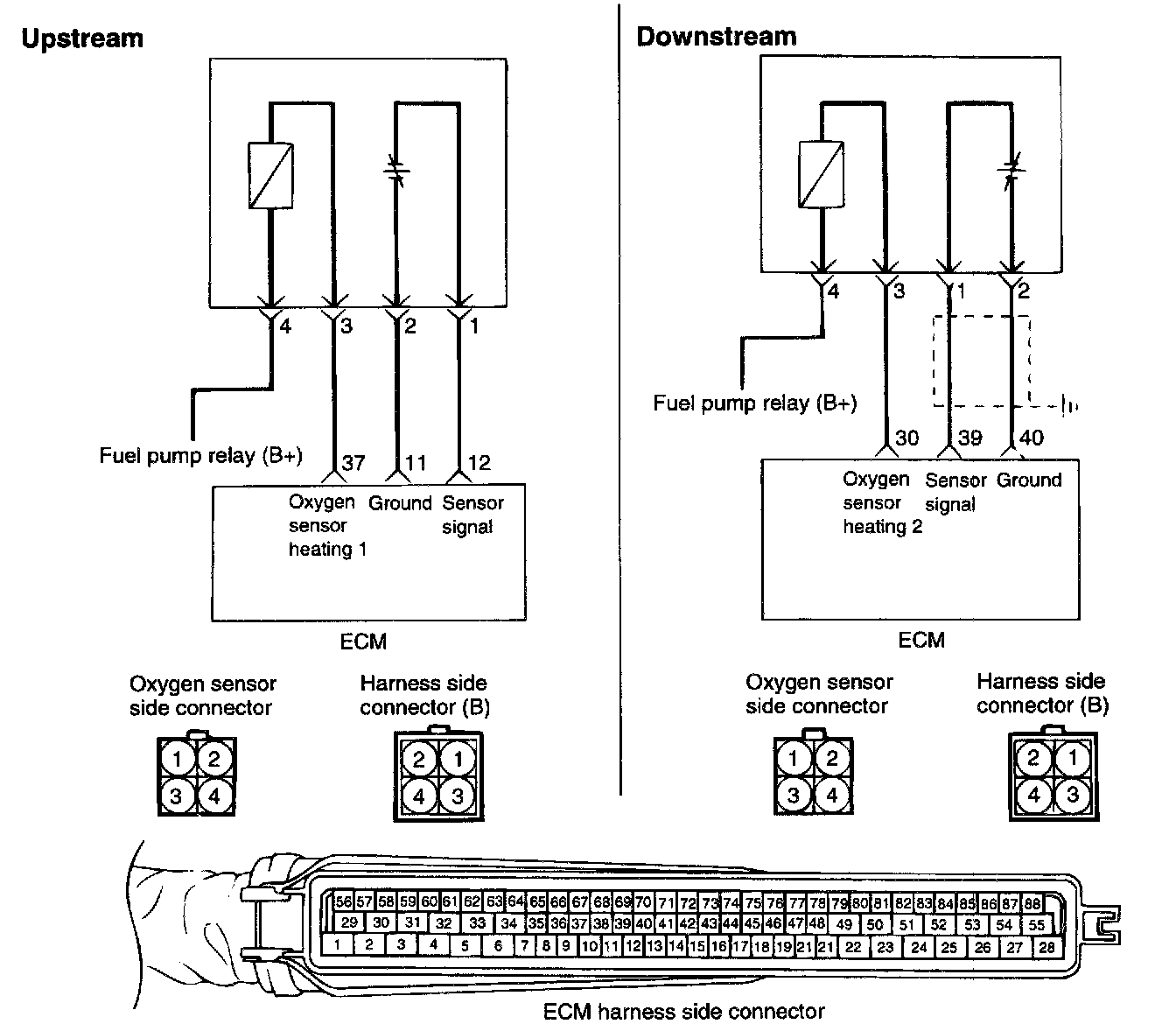

Oxygen Sensor

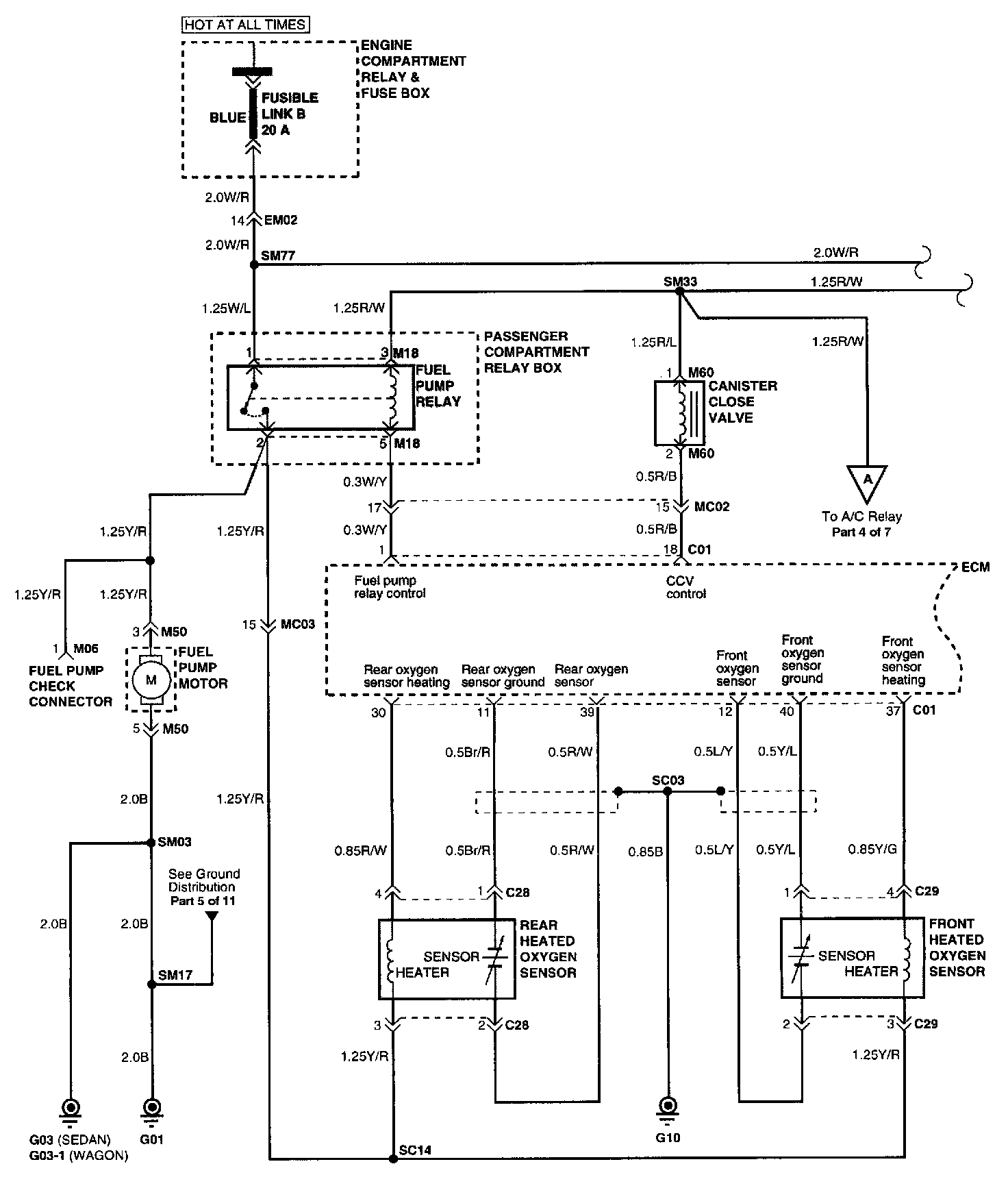

Engine Control System (Part 1 Of 7):






1999 Tiburon 2.0 L






1999 Elantra 2.0 L
