Data Link Connector

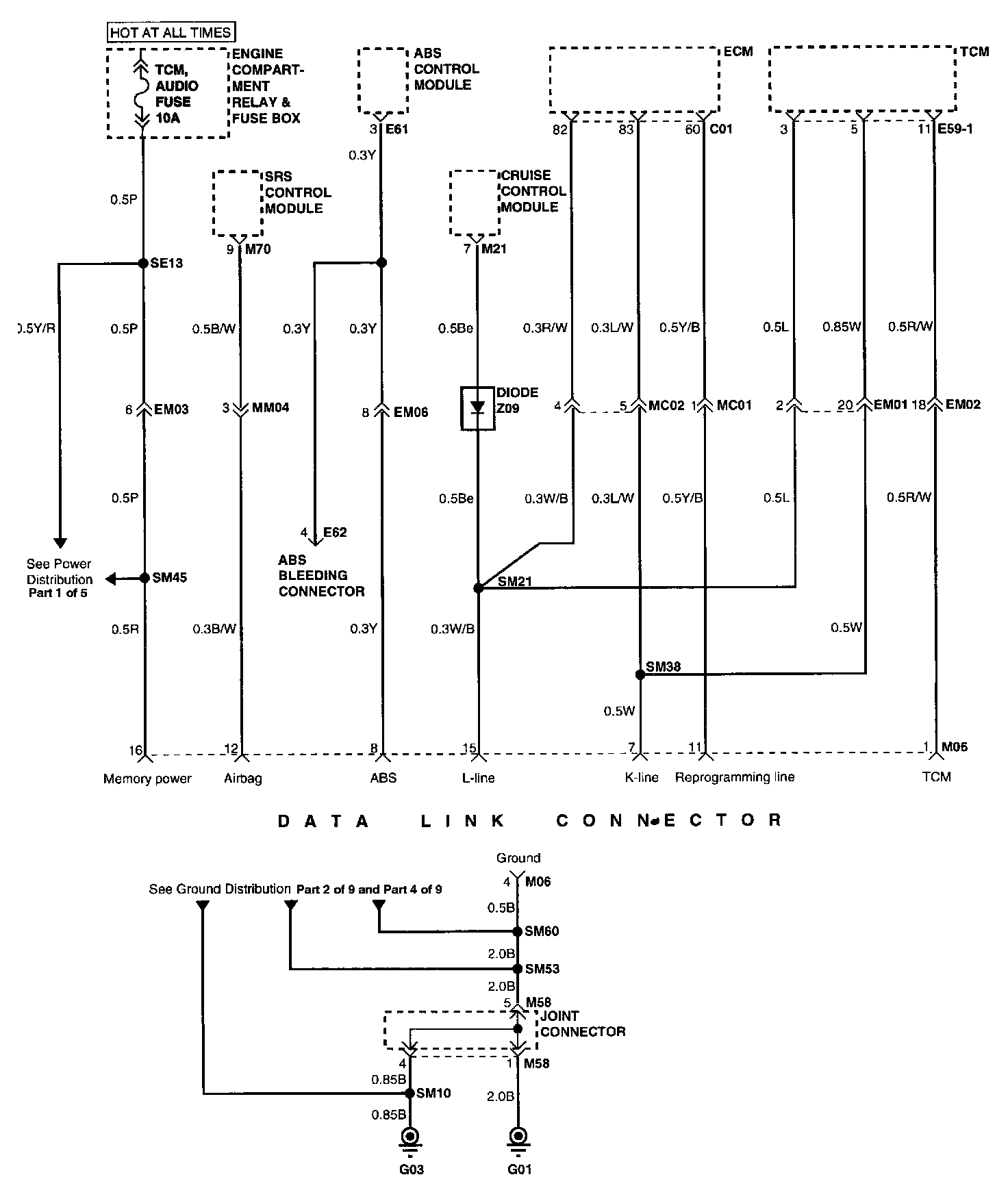

Data Link Details (Part 1 Of 2):

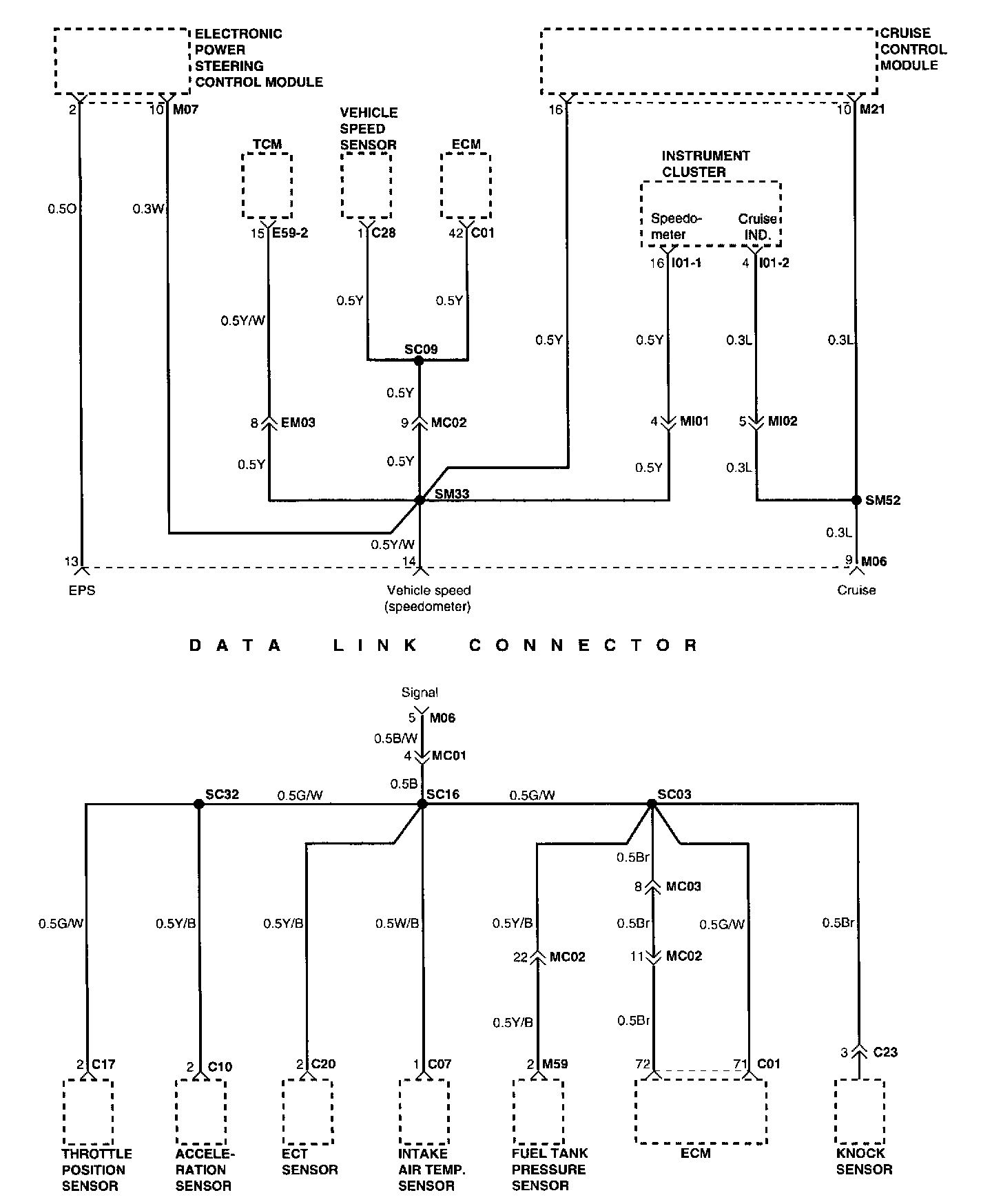

Data Link Details (Part 2 Of 2):





Circuit Diagrams
