Fuse Block

Dash Fuse Box Details (Part 1 Of 7):

(Part 1 of 7)
A/C Switch
A/T Shift Lever
Dash Fuse Box
Hazard Switch
Ignition Key Lock Solenoid & Door Warning Switch
Left Door Lock Actuator
Rear Defogger Relay
Stop Lamp Switch

Dash Fuse Box Details (Part 2 Of 7):

(Part 2 of 7)

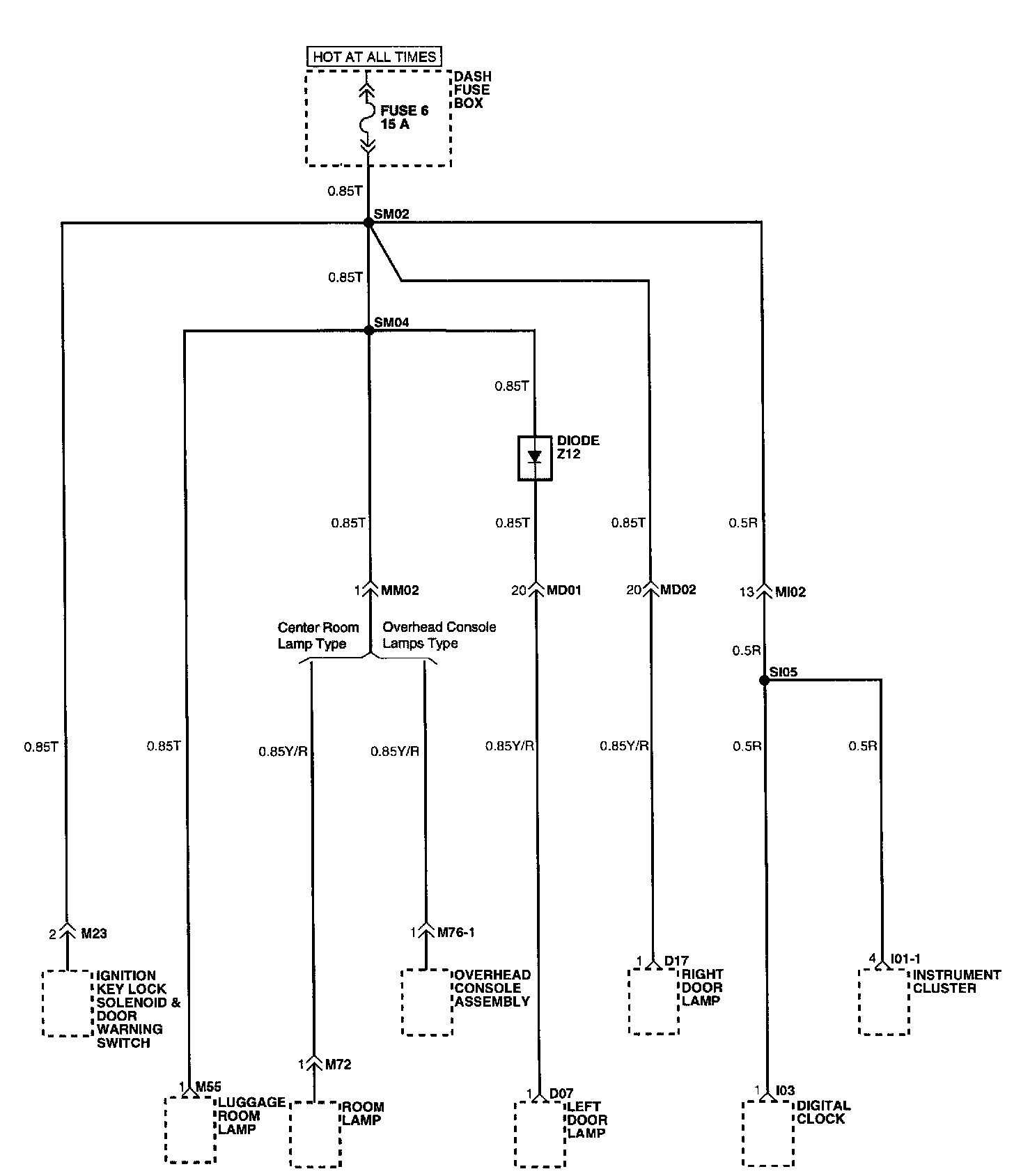

Dash Fuse Box
Digital Clock
Diode
Ignition Key Lock Solenoid & Door Warning Switch
Instrument Cluster
Left Door Lamp
Luggage Room Lamp
Overhead Console Assembly
Right Door Lamp
Room Lamp

Dash Fuse Box Details (Part 3 Of 7):

(Part 3 of 7)

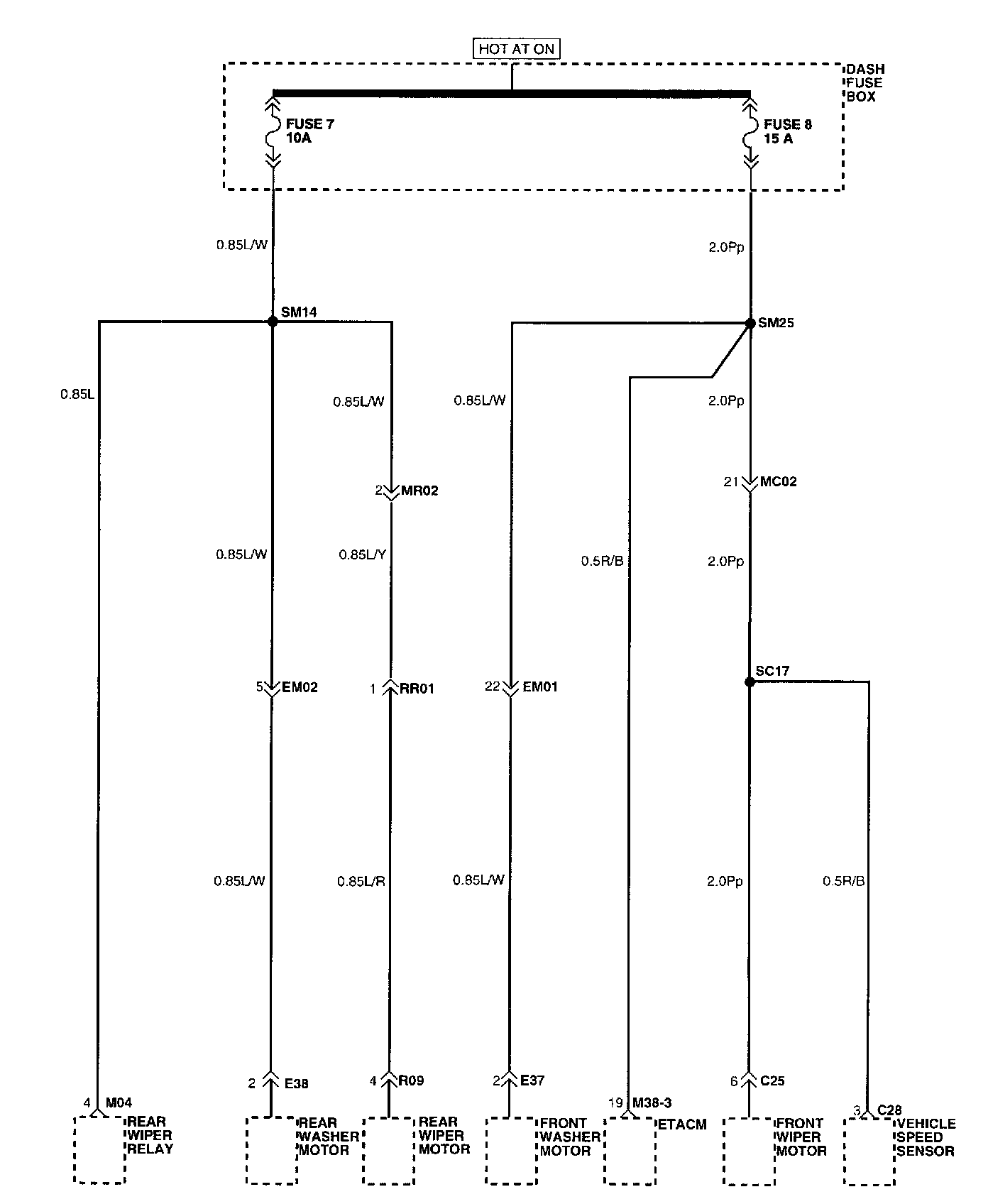

Dash Fuse Box
ETACM
Front Washer Motor
Front Wiper Motor
Rear Washer Motor
Rear Wiper Motor
Rear Wiper Relay
Vehicle Speed Sensor

Dash Fuse Box Details (Part 4 Of 7):

(Part 4 of 7)

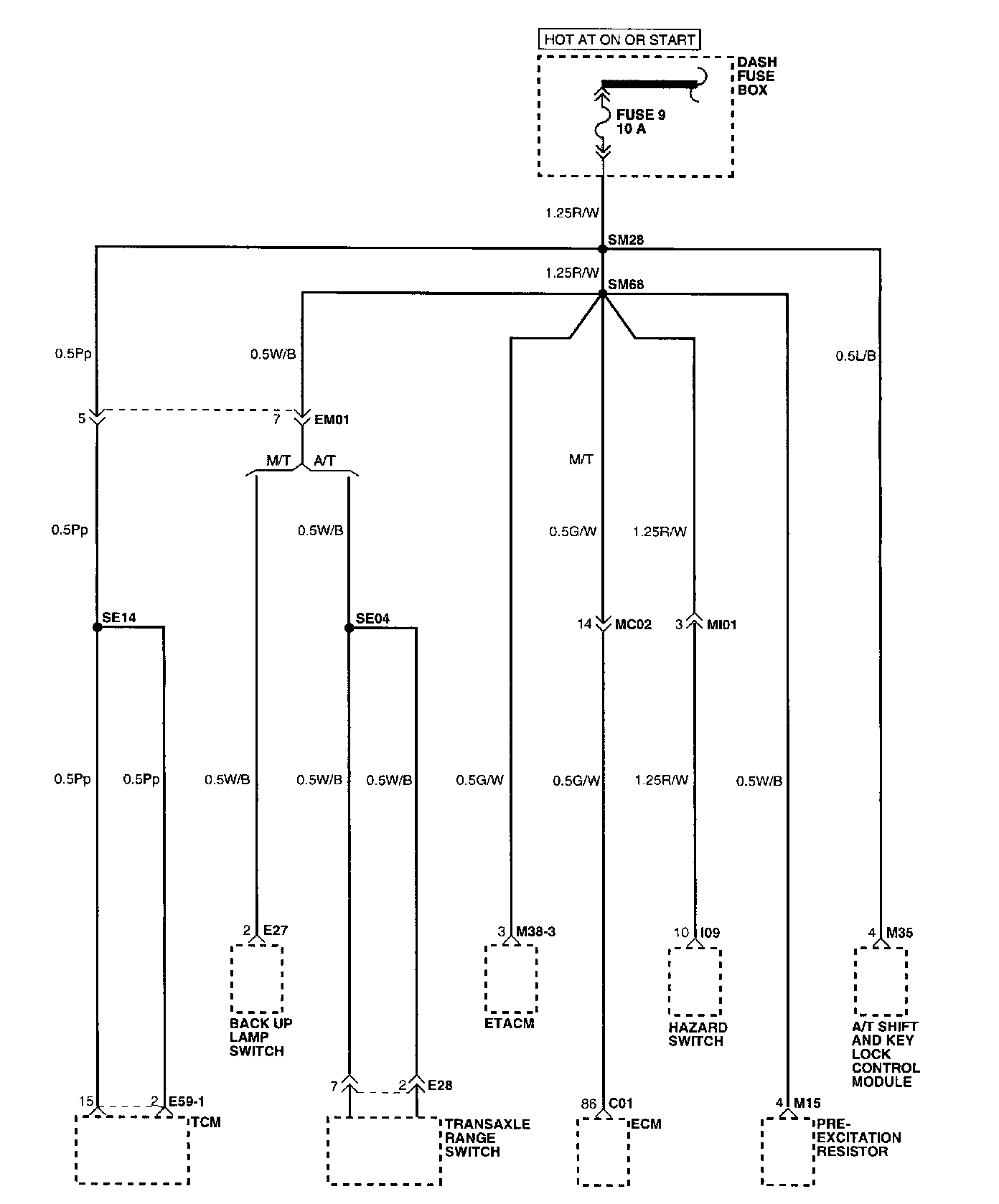

A/T Shift and Key Lock Control Module
Back Up Lamp Switch
Dash Fuse Box
ECM
ETACM
Hazard Switch
Pre-Excitation Resistor
TCM
Transaxle Range Switch

Dash Fuse Box Details (Part 5 Of 7):

(Part 5 of 7)
ABS Control Module
Dash Fuse Box
Instrument Cluster
SRS Control Module

Dash Fuse Box Details (Part 6 Of 7):

(Part 6 of 7)

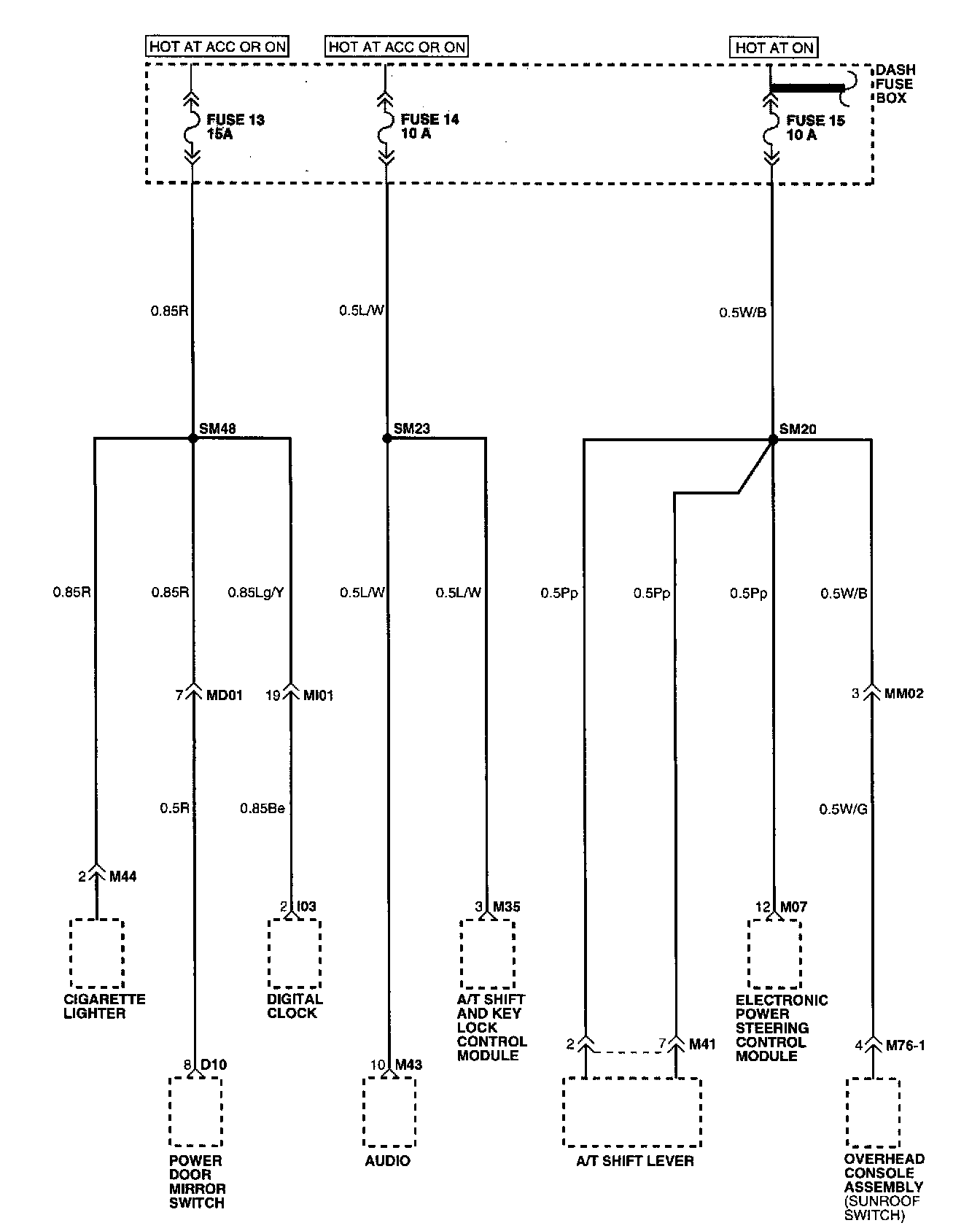

A/T Shift and Key Lock Control Module
A/T Shift Lever
Audio
Cigarette Lighter
Dash Fuse Box
Digital Clock
Electronic Power Steering Control Module
Overhead Control Assembly
Power Door Mirror Switch

Dash Fuse Box Details (Part 7 Of 7):

(Part 7 of 7)

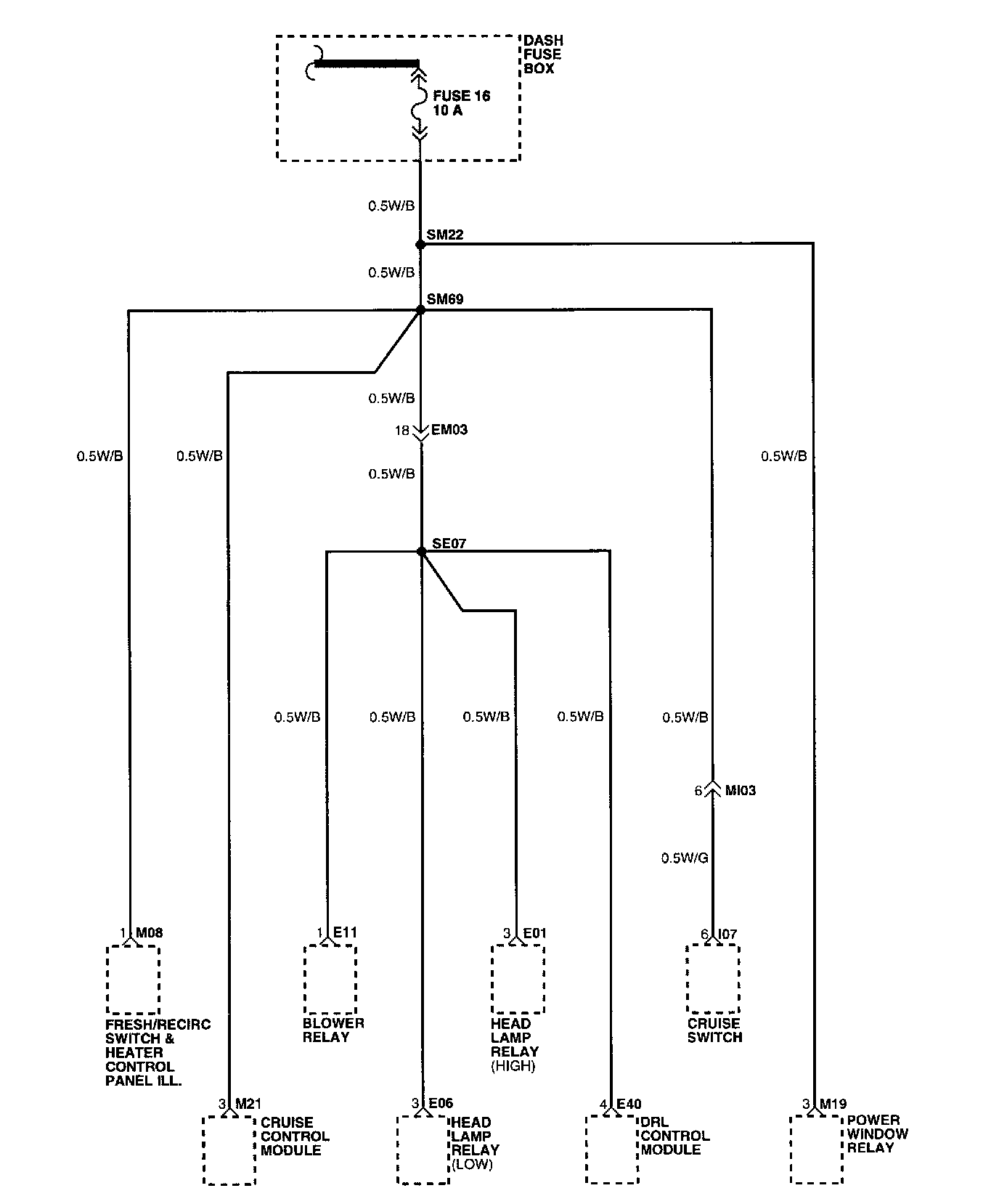

Blower Relay
Cruise Control Module
Cruise Switch
Dash Fuse Box
DRL Control Module
Fresh/Recirc Switch & Heater Control Panel ILL.
Head Lamp Relay
Power Window Relay
