Indicators and Gauges

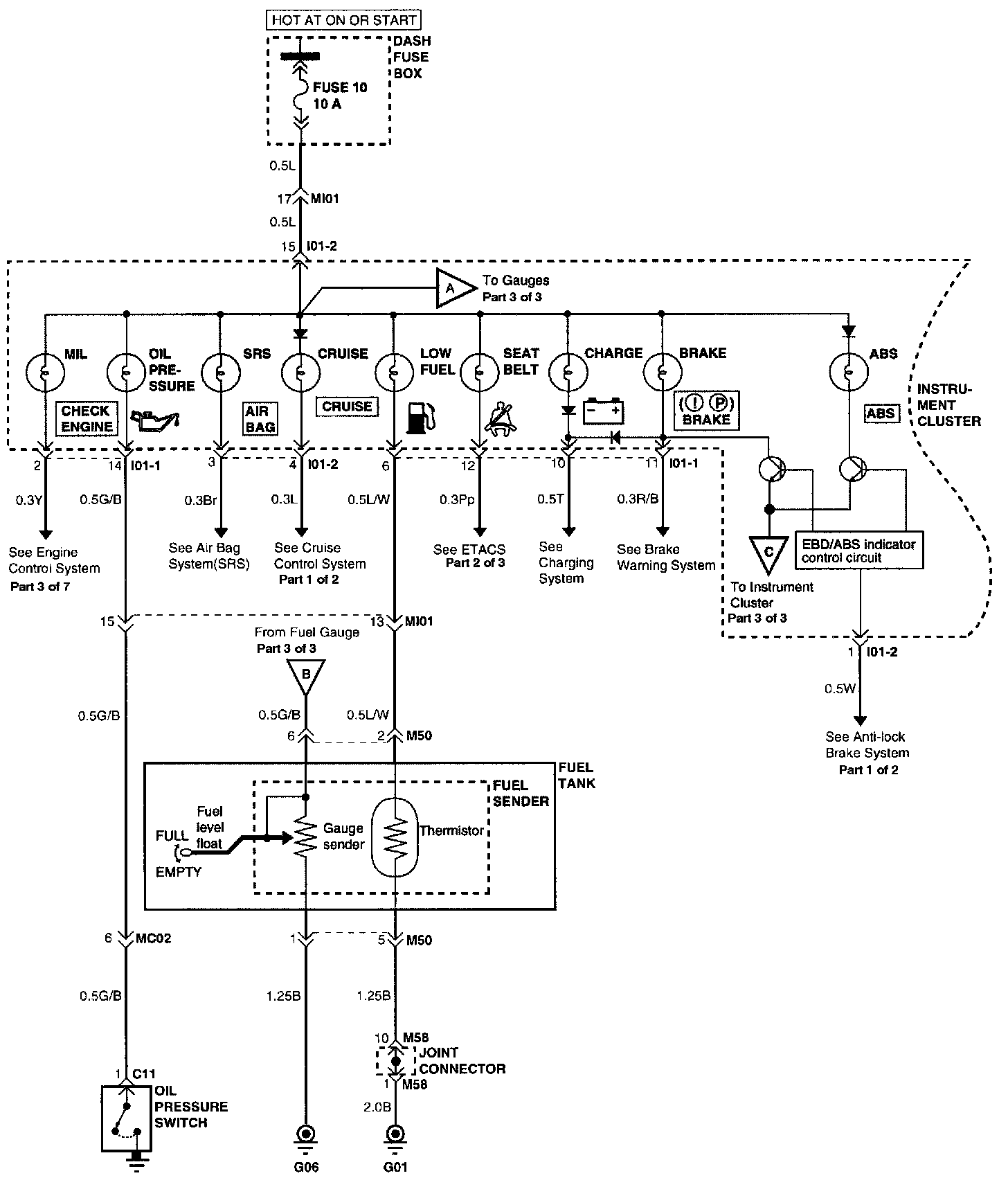

Indicators And Gauges (Part 1 Of 3):

(Part 1 of 3)
Dash Fuse Box
Fuel Tank
- Fuel Sender
- Gauge Sender
- Thermistor
Instrument Cluster
- EBD/ABS Indicator Control Circuit
Joint Connector
Oil Pressure Switch

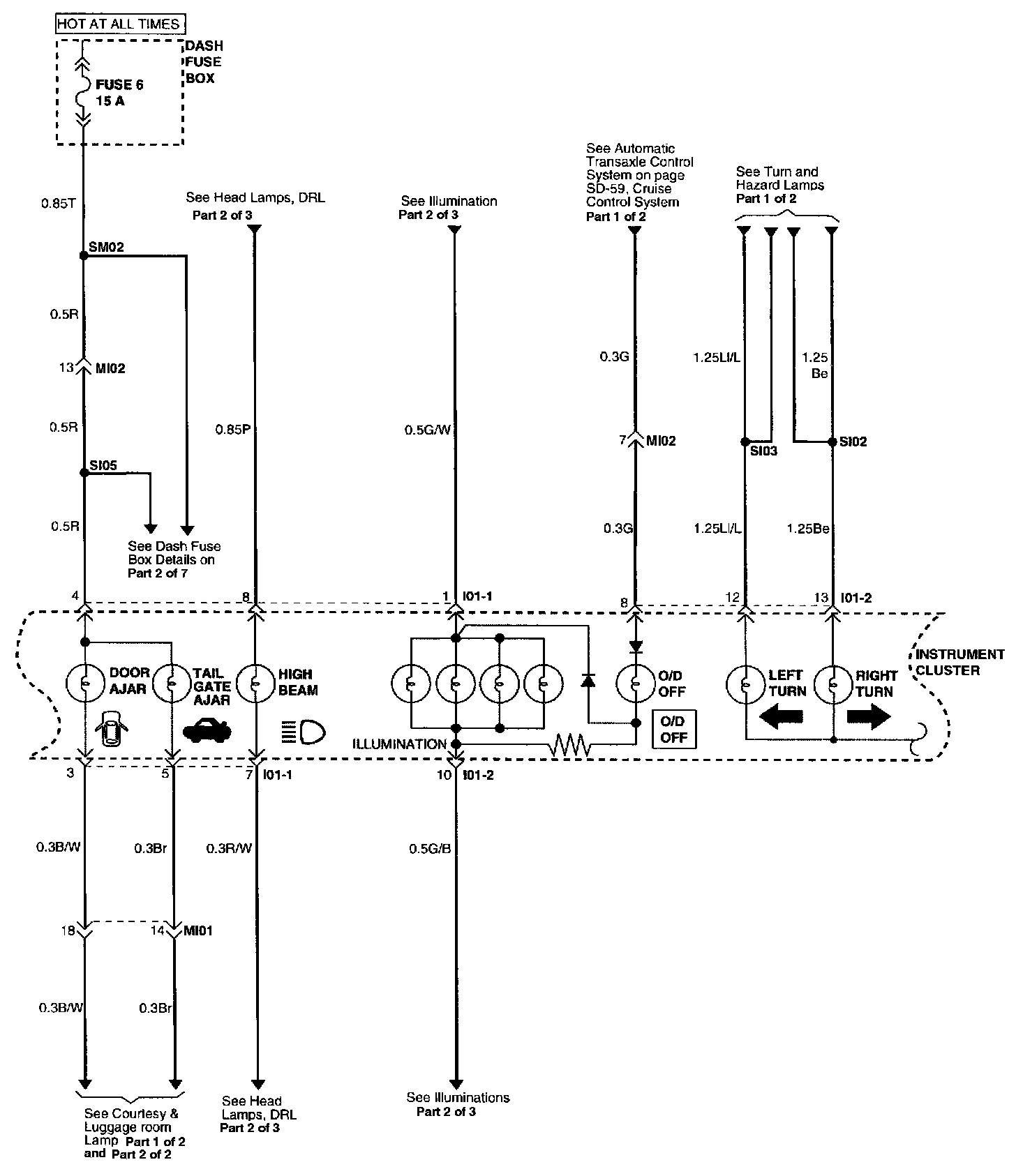

Indicators And Gauges (Part 2 Of 3):

(Part 2 of 3)
Dash Fuse Box
Instrument Cluster
- Illumination

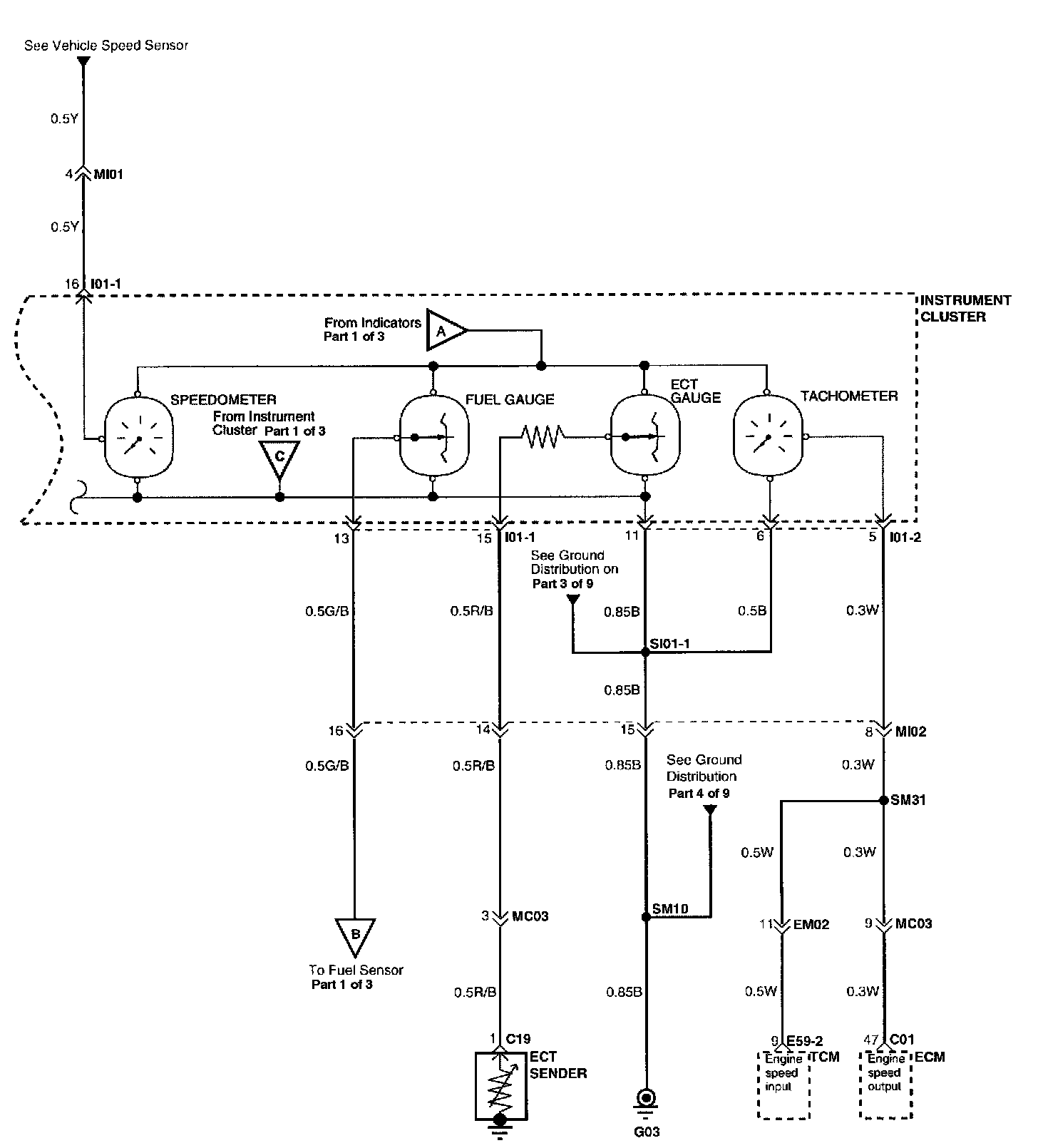

Indicators And Gauges (Part 3 Of 3):

(Part 3 of 3)
ECM
ECT Sender
Instrument Cluster
- ECT Gauge
- Fuel Gauge
- Speedometer
- Tachometer

Connector Configurations Are Found At Vehicle / Diagrams / Connector Views.
Connector Views

Connector And Component Locations Are Found At Instrument Panel, Gauges and Warning Indicators / Locations.
Locations
