Home >> Hyundai >> 1999 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram

System Diagram

Part 1 Of 2:

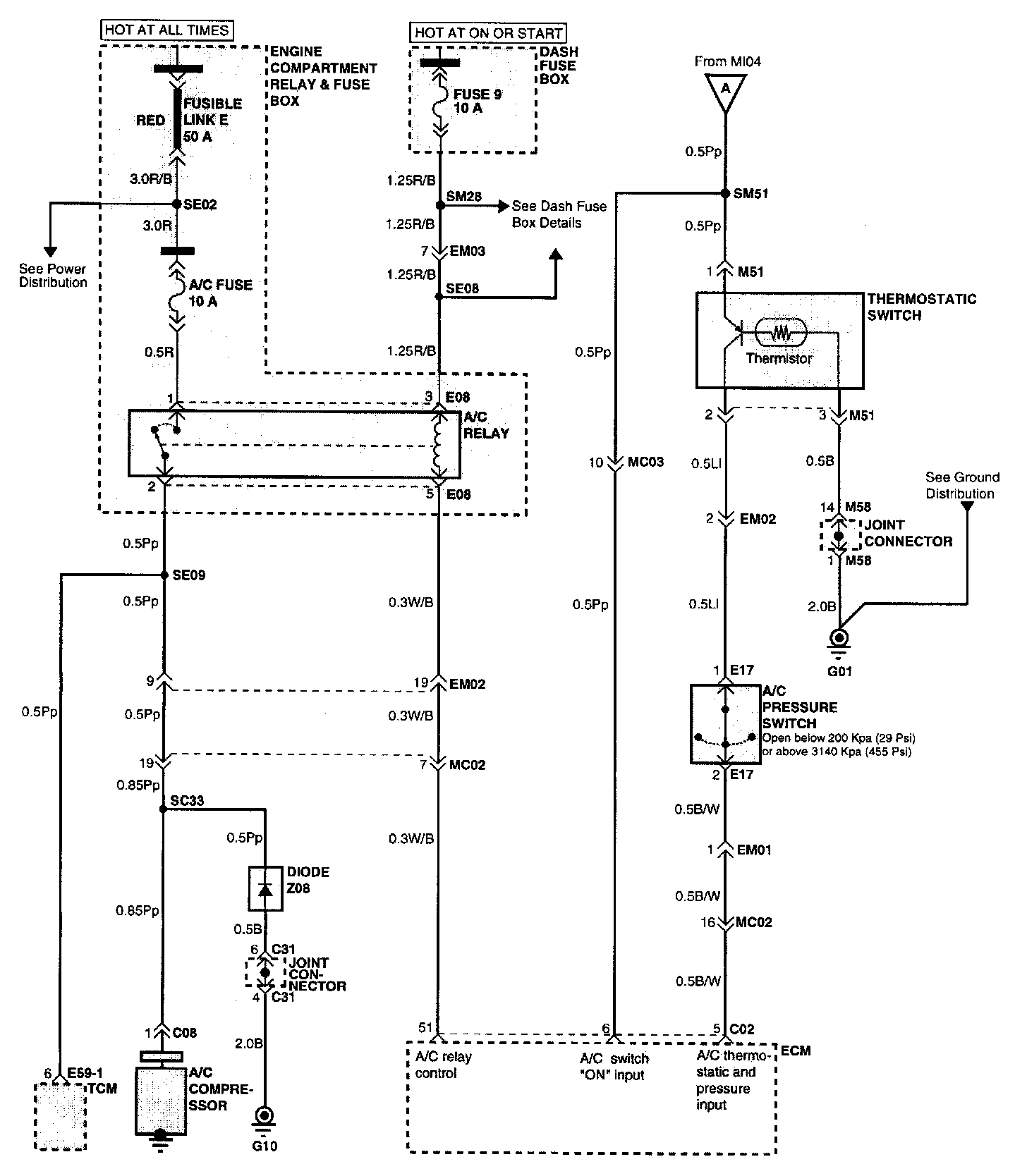

Part 2 Of 2:

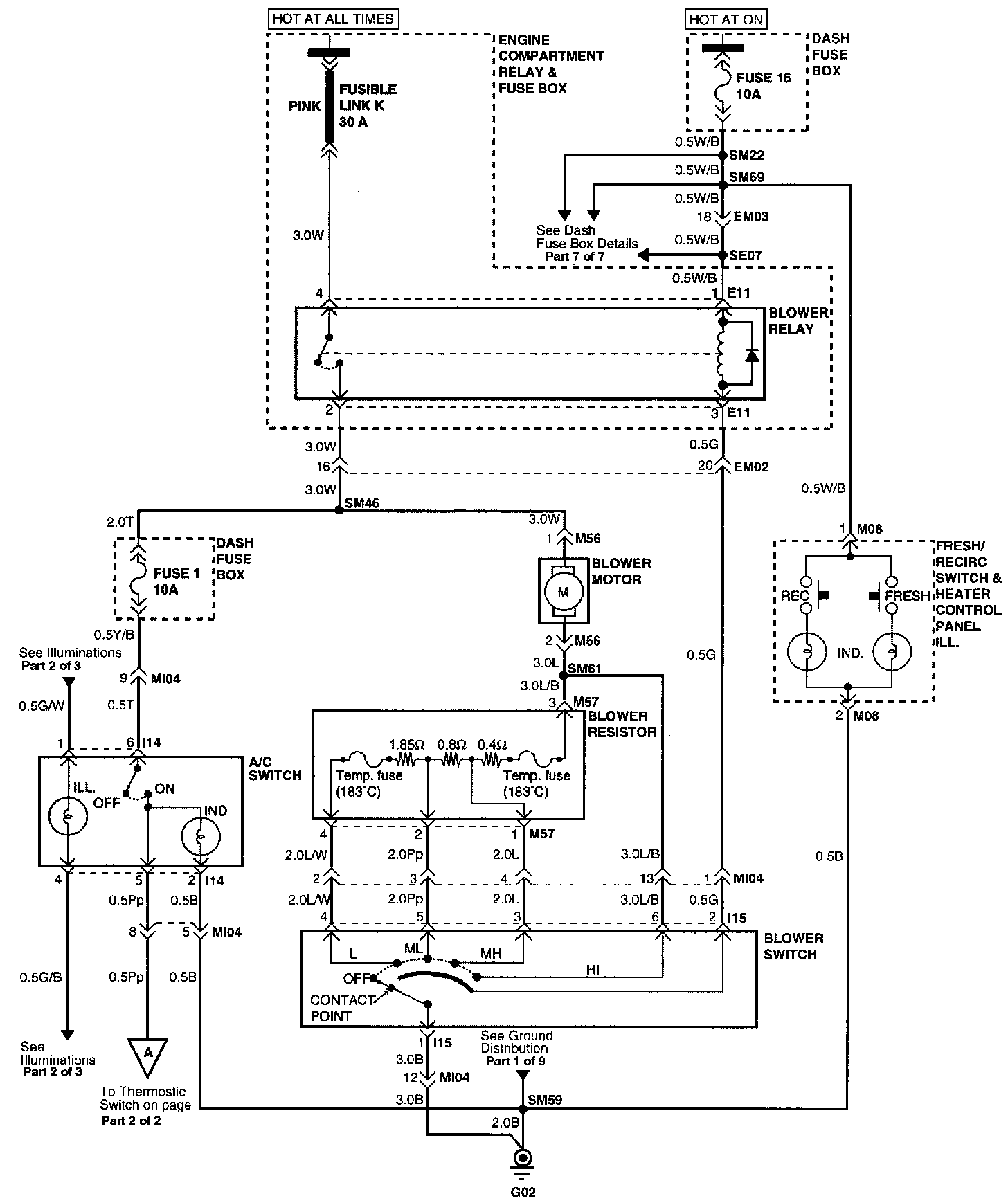

Blower And A/C Controls (Part 1 Of 2):

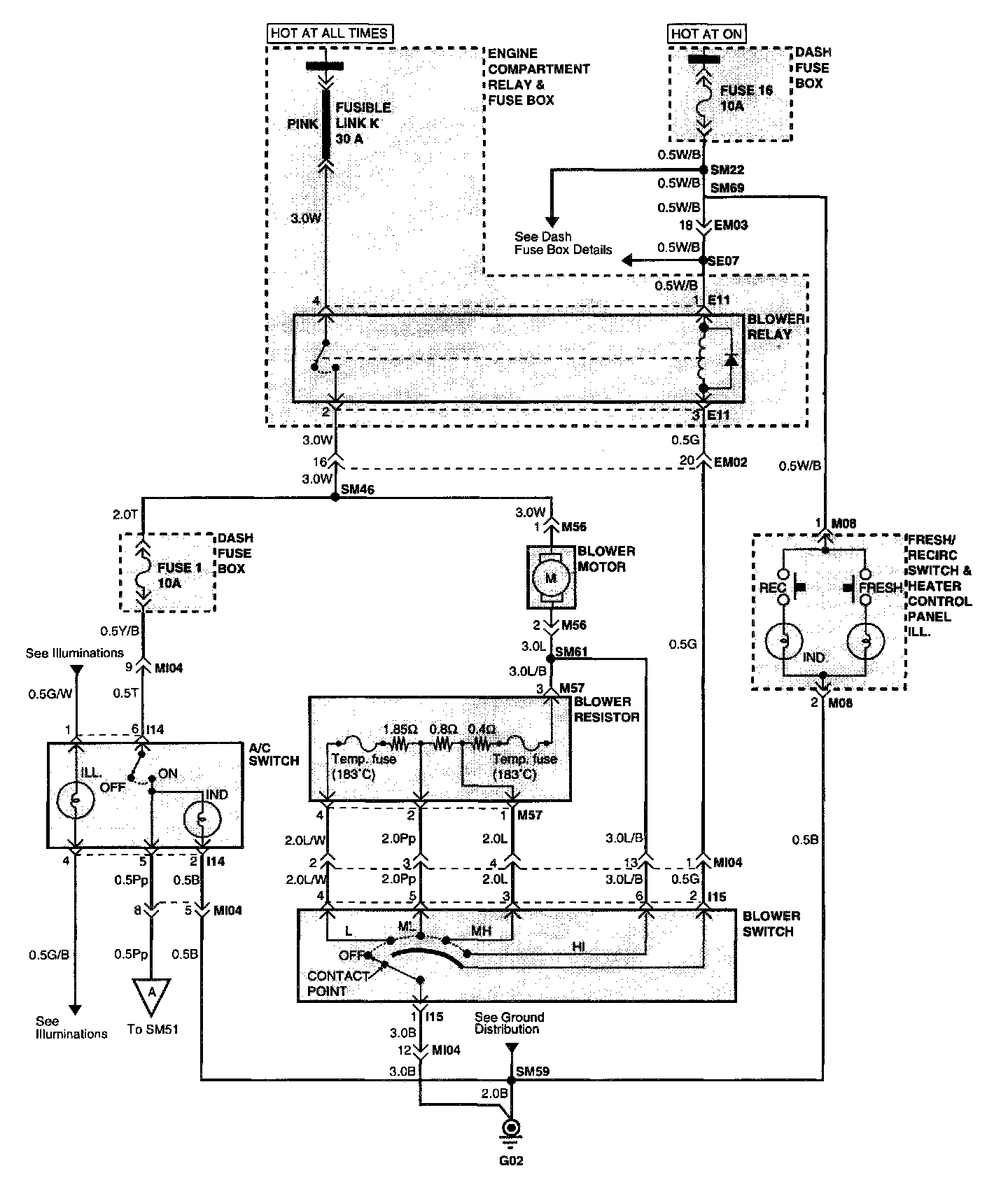

Blower And A/C Controls (Part 2 Of 2):
