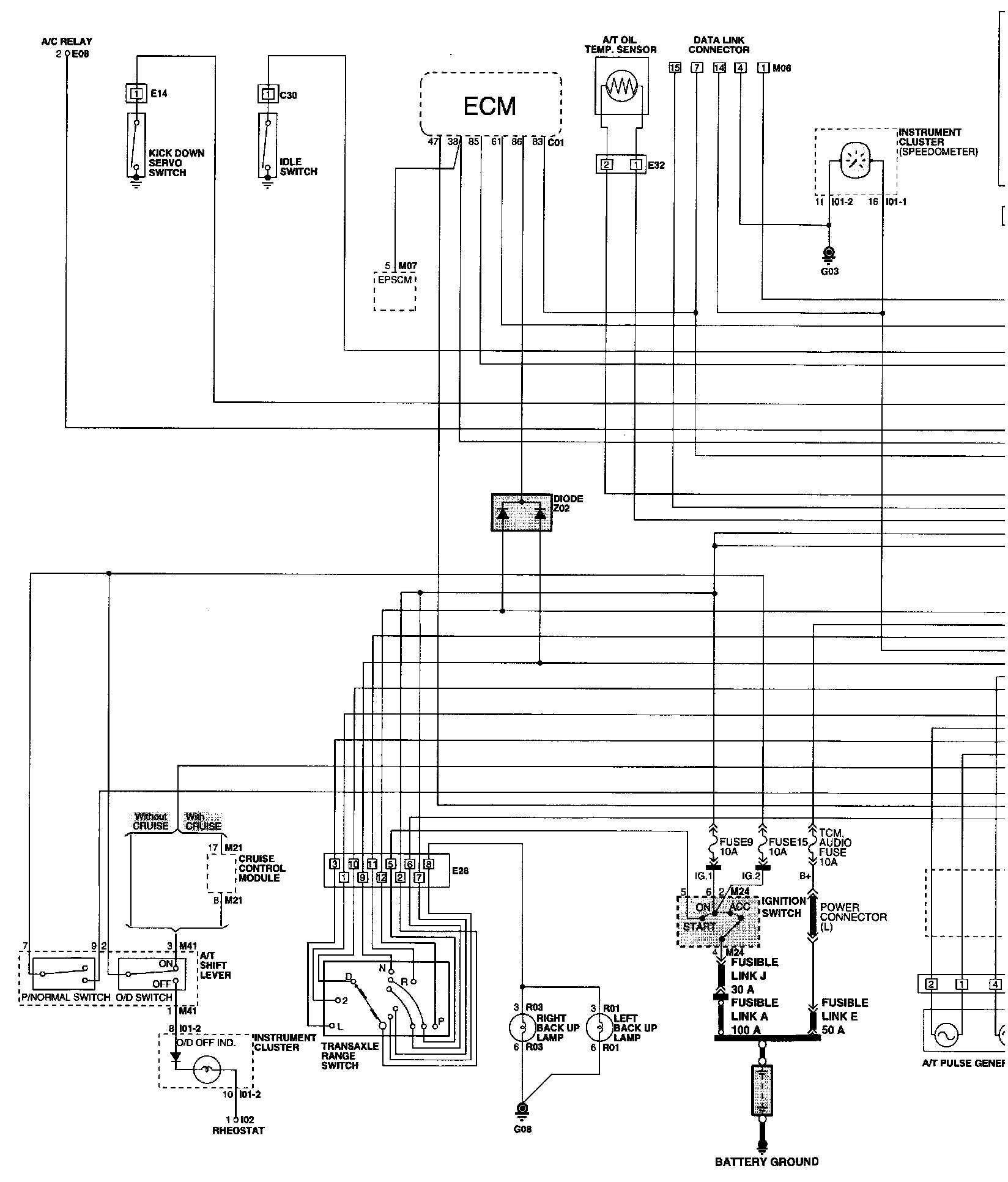

System Diagram

��LJ:

Circuit Schematic

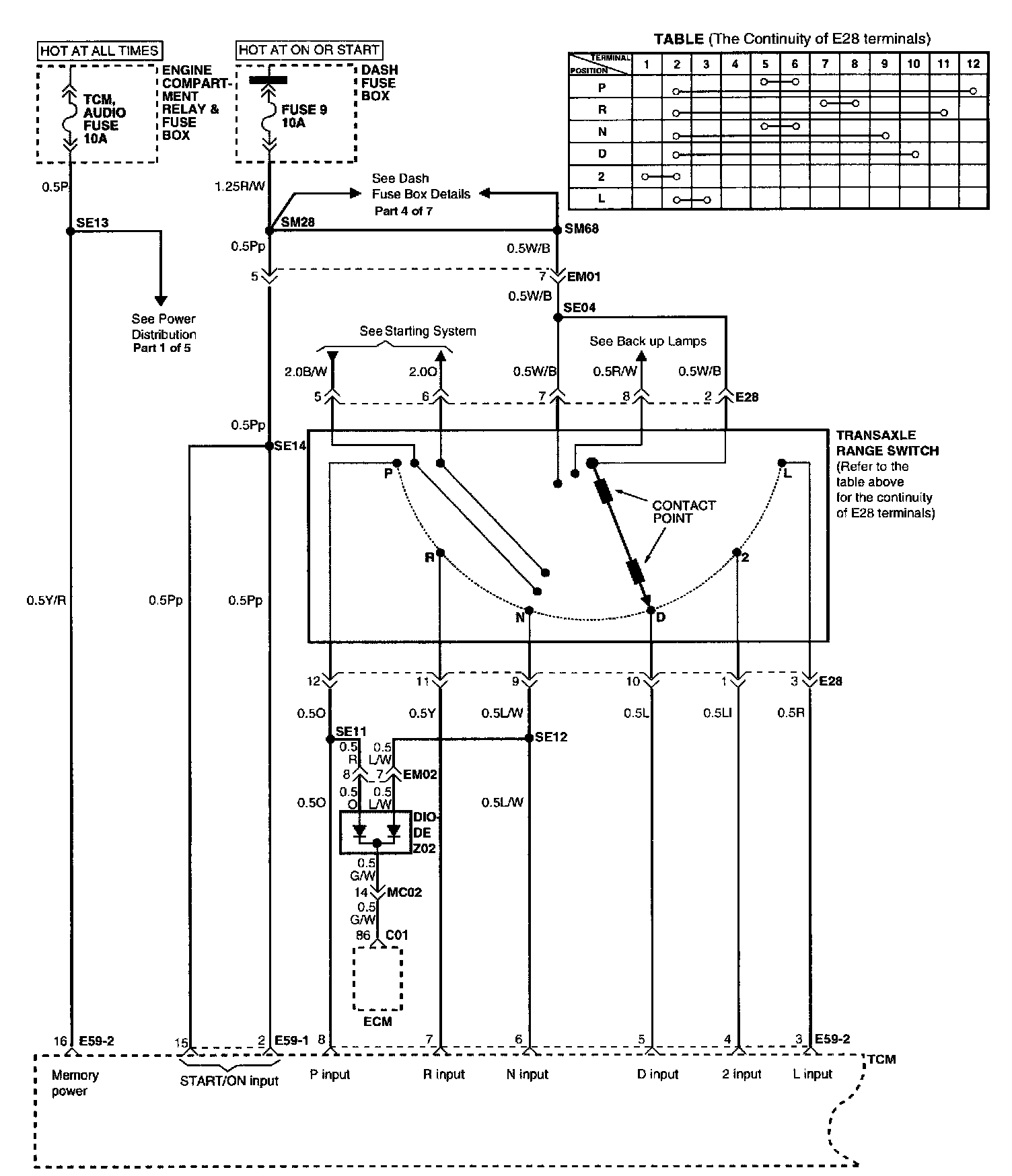

Automatic Transaxle Control System (Part 1 Of 3):

(Part 1 of 3)
Dash Fuse Box
Diode
ECM
Engine Compartment Relay & Fuse Box
TCM
Transaxle Range Switch

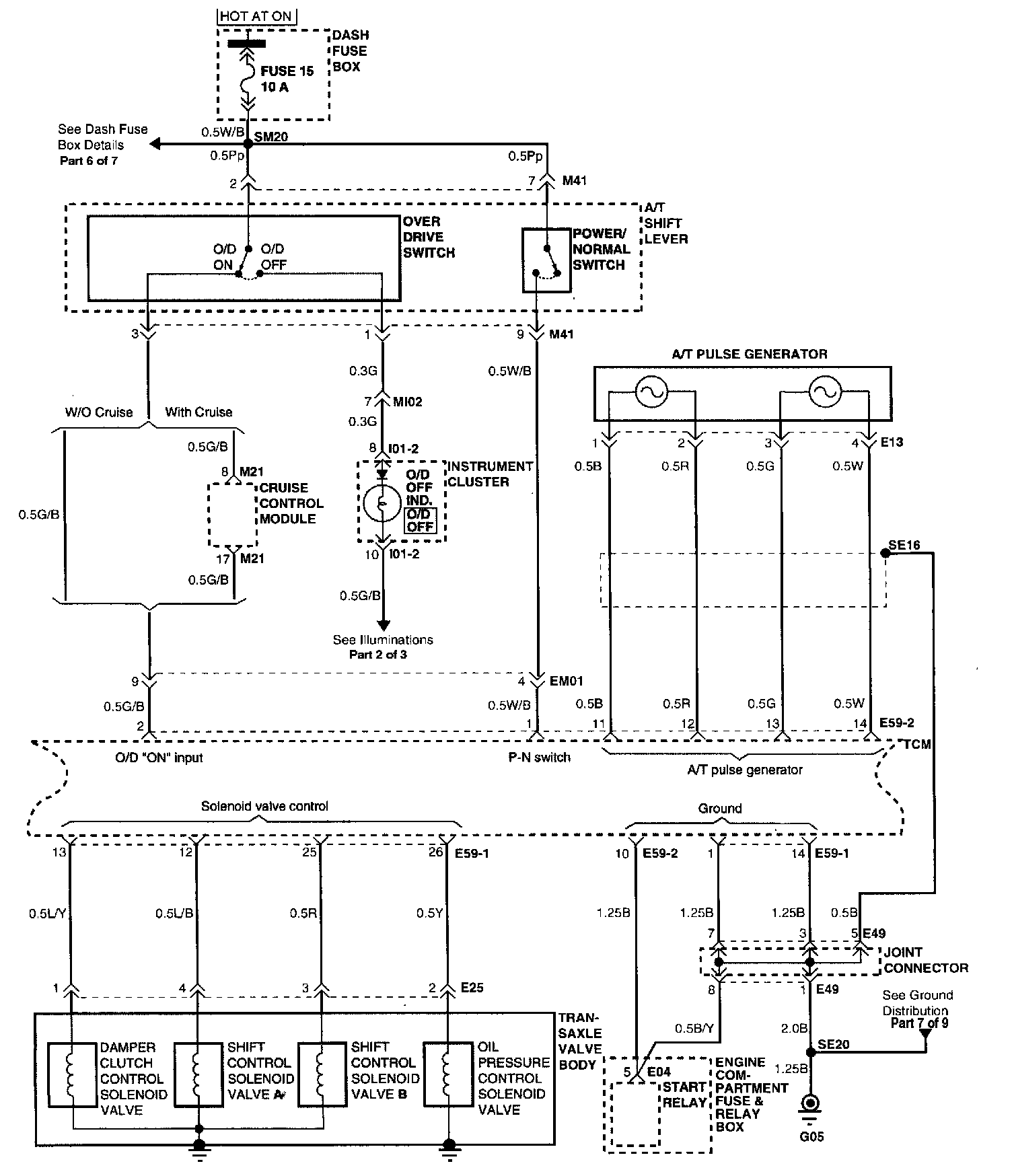

Automatic Transaxle Control System (Part 2 Of 3):

(Part 2 of 3)
A/T Shift Lever
- Over Drive Switch
- Power/Normal Switch
A/T Pulse Generator
Cruise Control Module
Engine Compartment Fuse & Relay Box
- Start Relay
Instrument Cluster
Joint Connector
TCM
- A/T Pulse Generator
- P-N Switch
- Solenoid Valve Control
Transaxle Valve Body
- Damper Clutch Control Solenoid Valve
- Oil Pressure Control Solenoid Valve
- Shift Control Solenoid Valve A
- Shift Control Solenoid Valve B

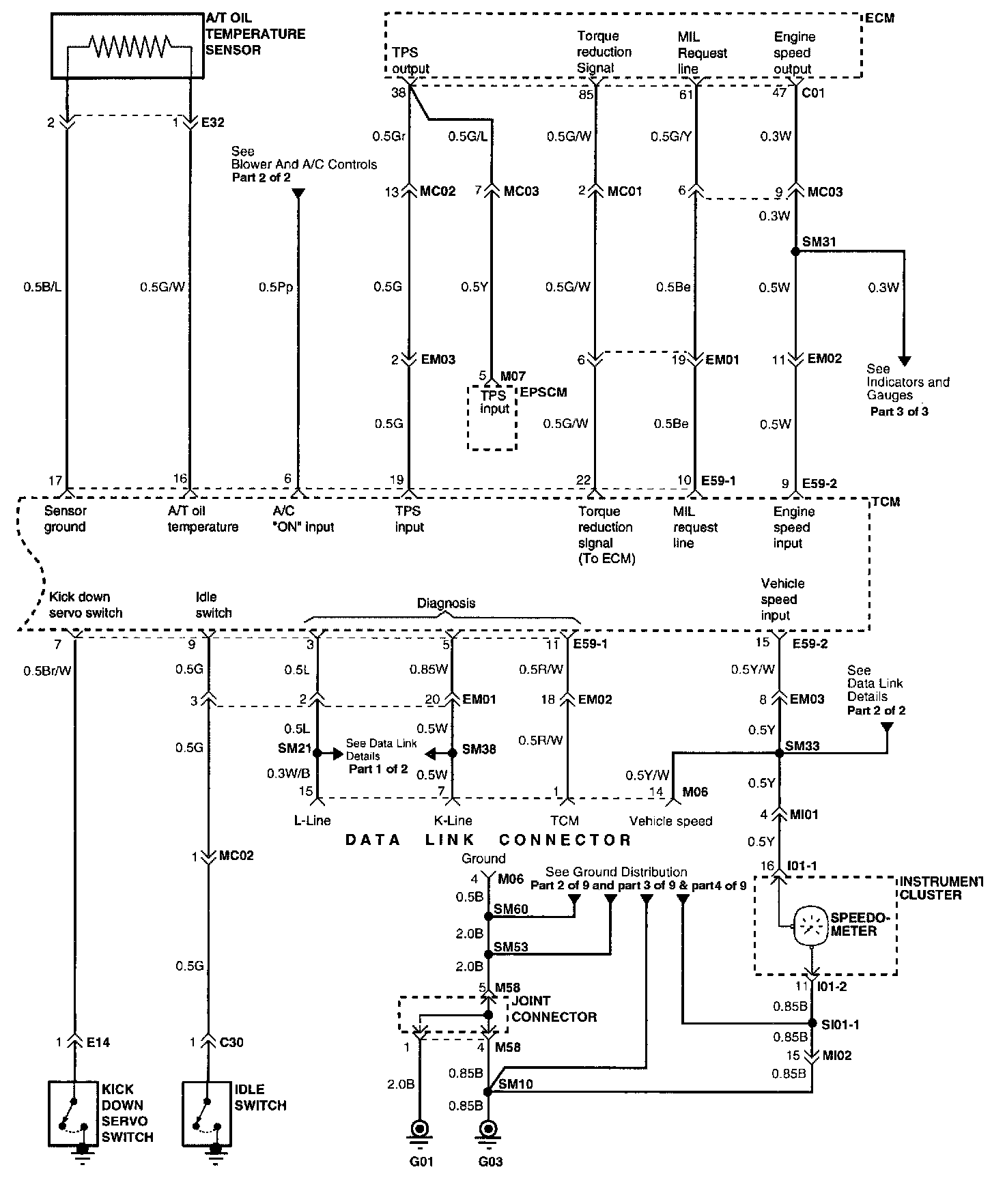

Automatic Transaxle Control System (Part 3 Of 3):

(Part 3 of 3)
A/T Oil Temperature Sensor
ECM
- Engine Speed Output
- MIL Request Line
- Torque Reduction Signal
- TPS Output
EPSCM
Idle Switch
Instrument Cluster
- Speedometer
Joint Connector
Kick Down Servo Switch
TCM
- A/T Oil Temperature
- Engine Speed Input
- MIL Request Line
- Idle Switch
- Kick Down Servo Switch

Connector Configurations Are Found At Vehicle / Diagrams / Connector Views.

Connector And Component Locations Are Found At Transmission Control Systems / Locations.
