Shift and Key Lock System

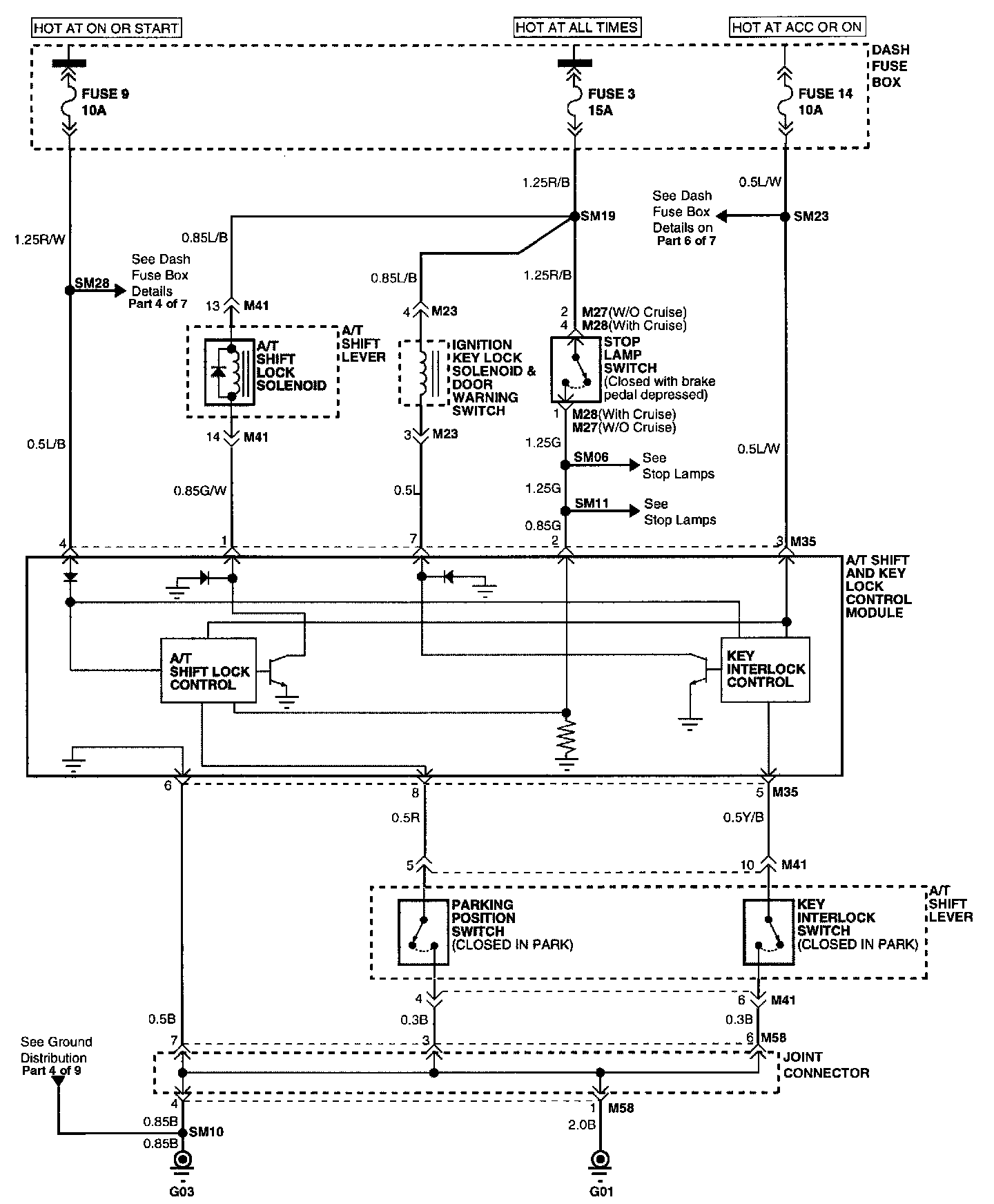

Circuit Diagram

Connector Configurations Are Found At Vehicle / Diagrams / Connector Views.

Connector And Component Locations Are Found At Shift Interlock / Locations.
