Brake Pedal Assy: Adjustments

ADJUSTMENT





1. Clearance between the stop lamp switch outer case and pedal arm.

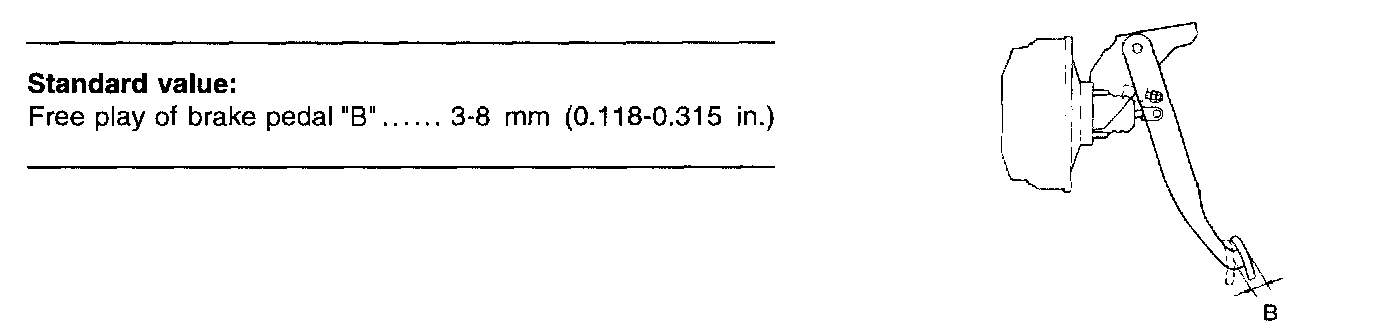

2. Free play of brake pedal B

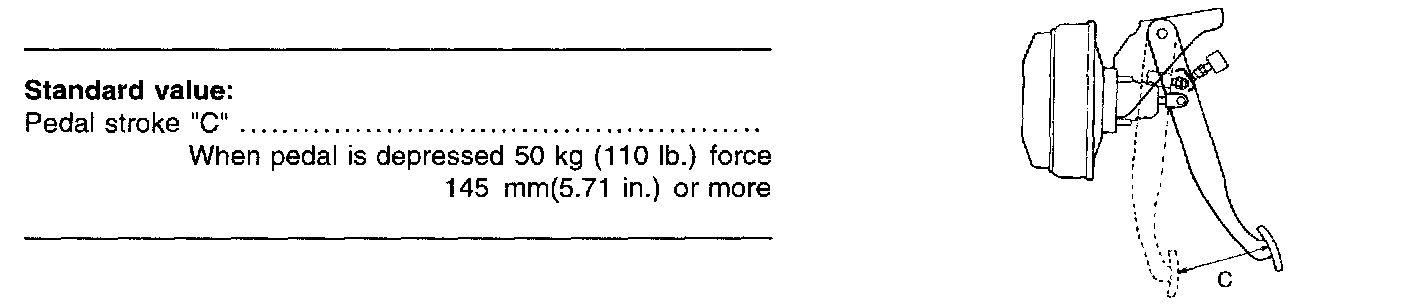

3. Start the engine, apply the brake pedal with approximately 500 N (50 kg, 110 lbs.) of force, and measure pedal stroke.
