Reading and Clearing Diagnostic Trouble Codes

SCAN TOOL CHECK
1. Turn the ignition OFF.

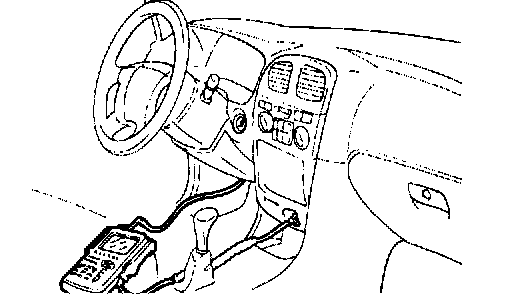

2. Connect the scan tool to the data link connector located underneath low crash pad panel.
3. Turn the ignition On.
4. Use the scan tool to check the self diagnosis codes.
5. After completion of the repair or correction of the problems, turn the ignition switch; then erase the stored faults coeds using the clear key.
6. Disconnect the scan tool.
