Home >> Hyundai >> 1999 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Body and Frame >> Sensors and Switches - Body and Frame >> Seat Temperature Switch >> Testing and Inspection

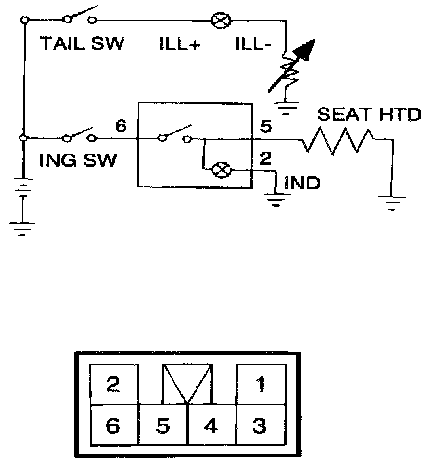

Seat Temperature Switch: Testing and Inspection

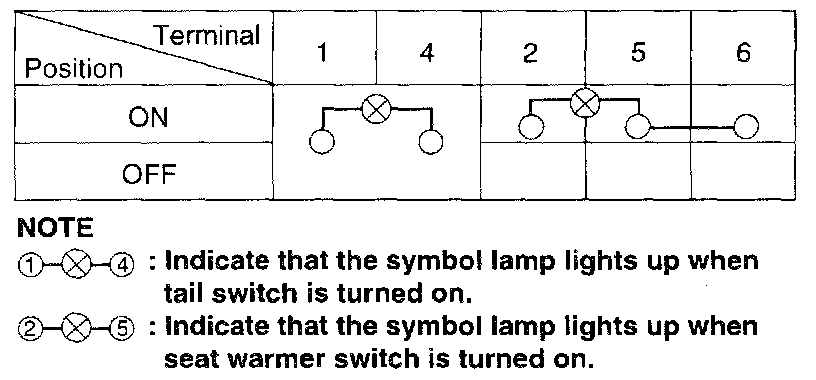

Check for the continuity between terminals in the above tables.
