Security/Alarm System - Diagnostic Guide

Group:
BODY ELECTRICAL

Number:
02-90-009

Date:
JUNE, 2002

Model:
1994-2001 SONATA, 1995-1999 ACCENT, 1996-2000 ELANTRA, 1997-2001 TIBURON

Subject:
DIAGNOSTIC GUIDE FOR CLIFFORD AND DEI SECURITY SYSTEMS

DESCRIPTION:

This bulletin contains information to be used for the diagnosis and repair of Hyundai's Clifford and DEI security Systems.

TABLE OF CONTENTS

DIAGNOSTIC PROCEDURES (CONDITION/SOLUTION)

CLIFFORD SECURITY SYSTEMS (PROGRAMMING GUIDE OF SELECTABLE FEATURES)

DEI SECURITY SYSTEMS (PROGRAMMING GUIDE OF SELECTABLE FEATURES)

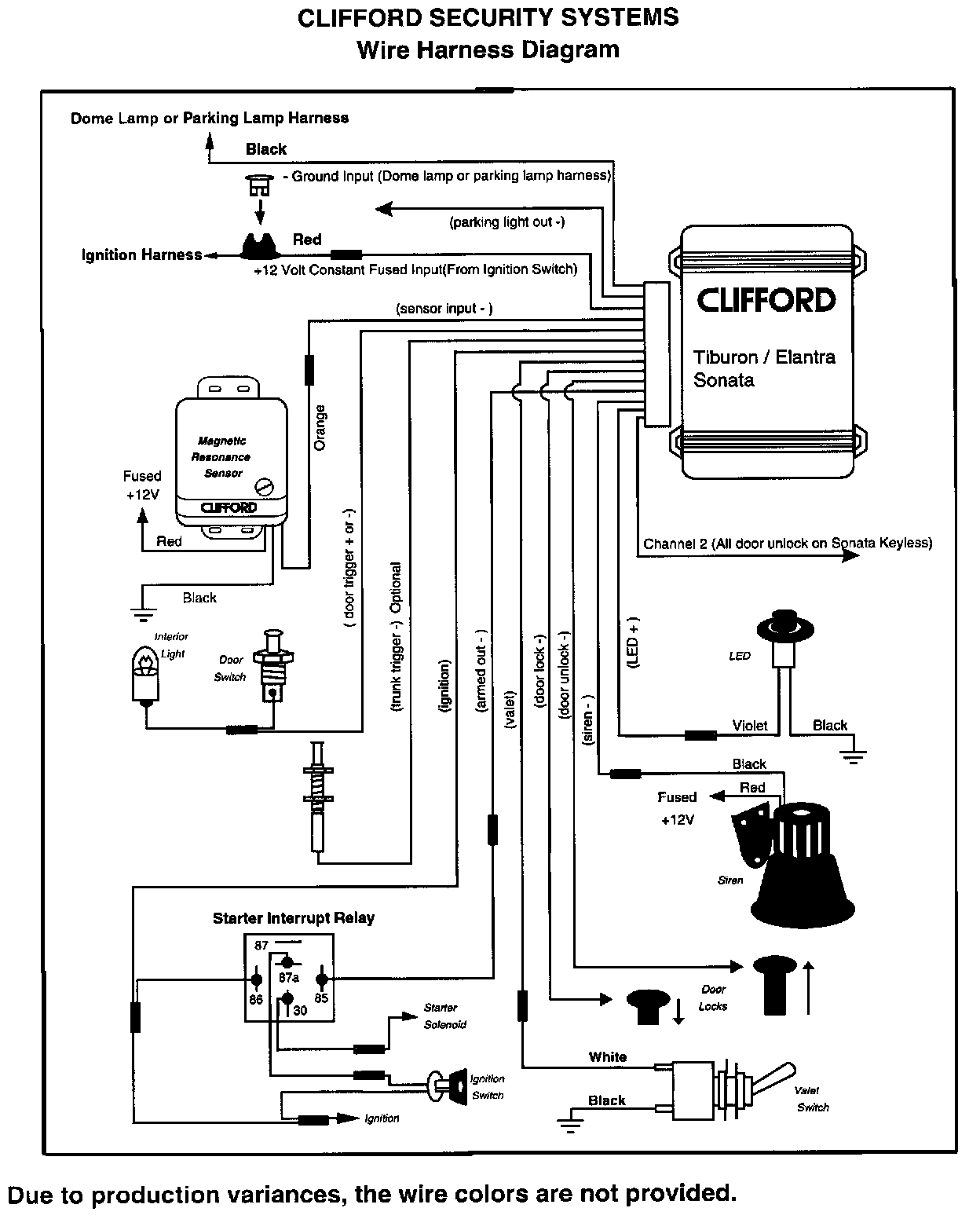

CLIFFORD SECURITY SYSTEMS WIRE HARNESS DIAGRAM

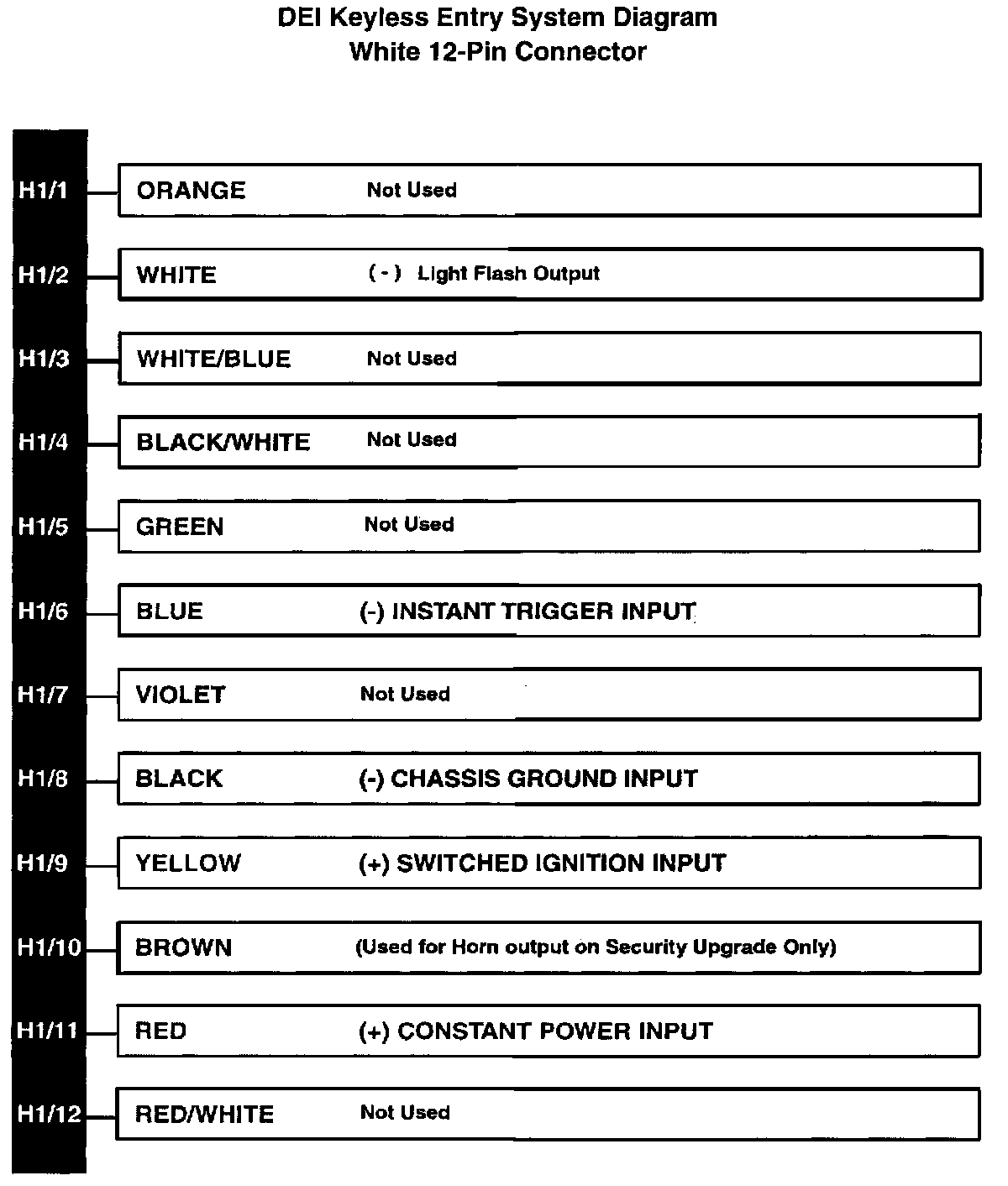

DEI KEYLESS ENTRY SYSTEM DIAGRAM (WHITE 12-PIN CONNECTOR)

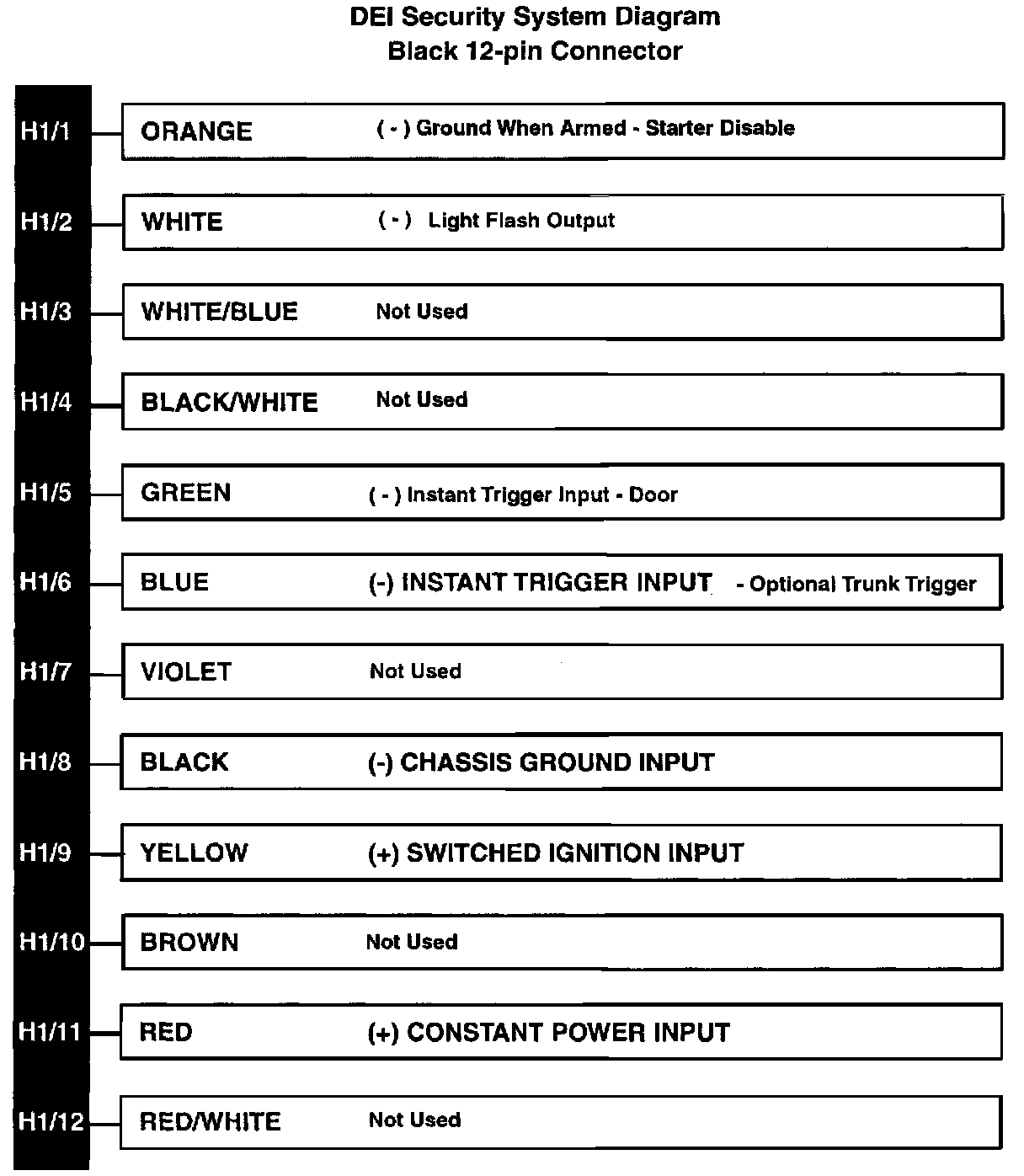

DEI SECURITY SYSTEM DIAGRAM (BLACK 12-PIN CONNECTOR)

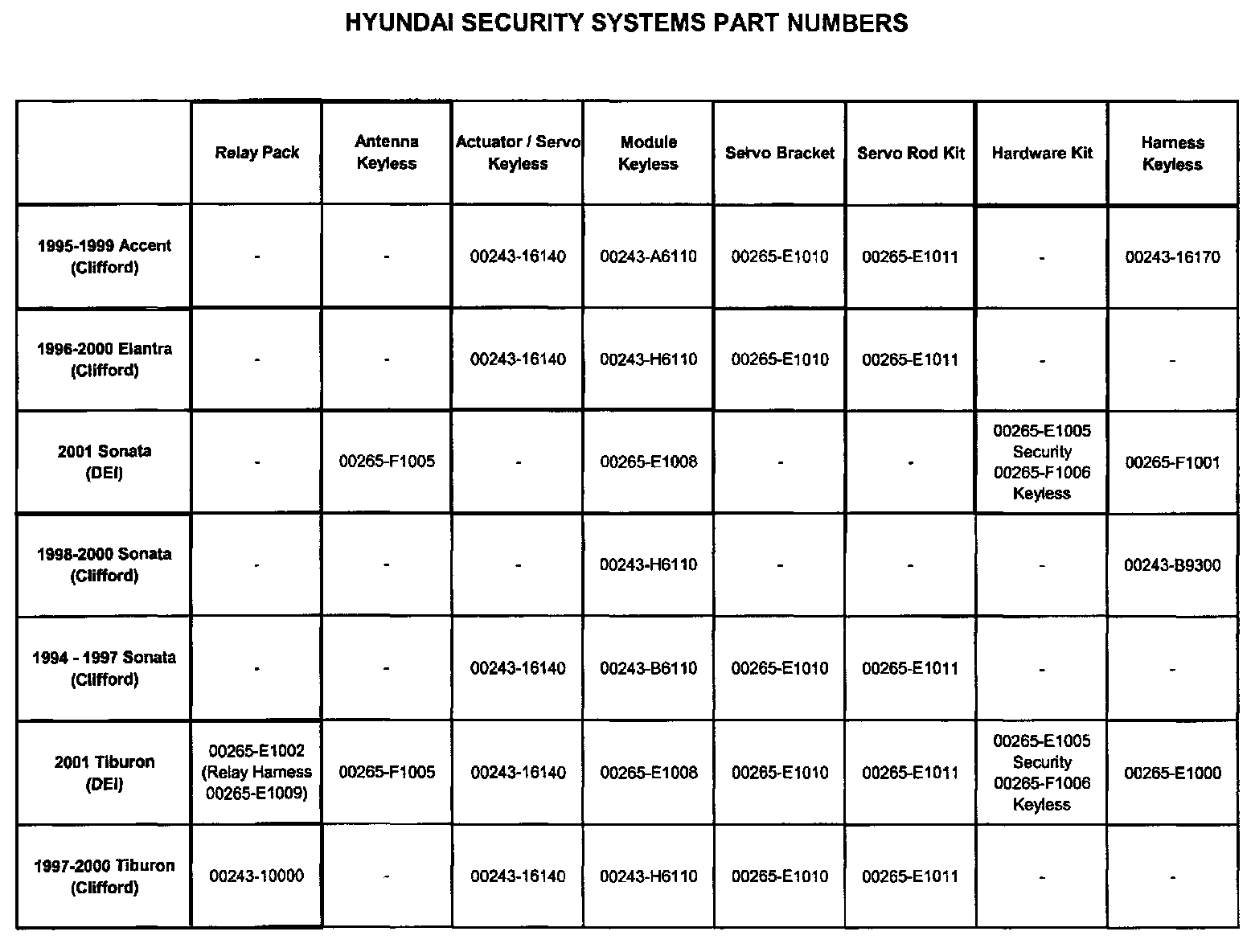

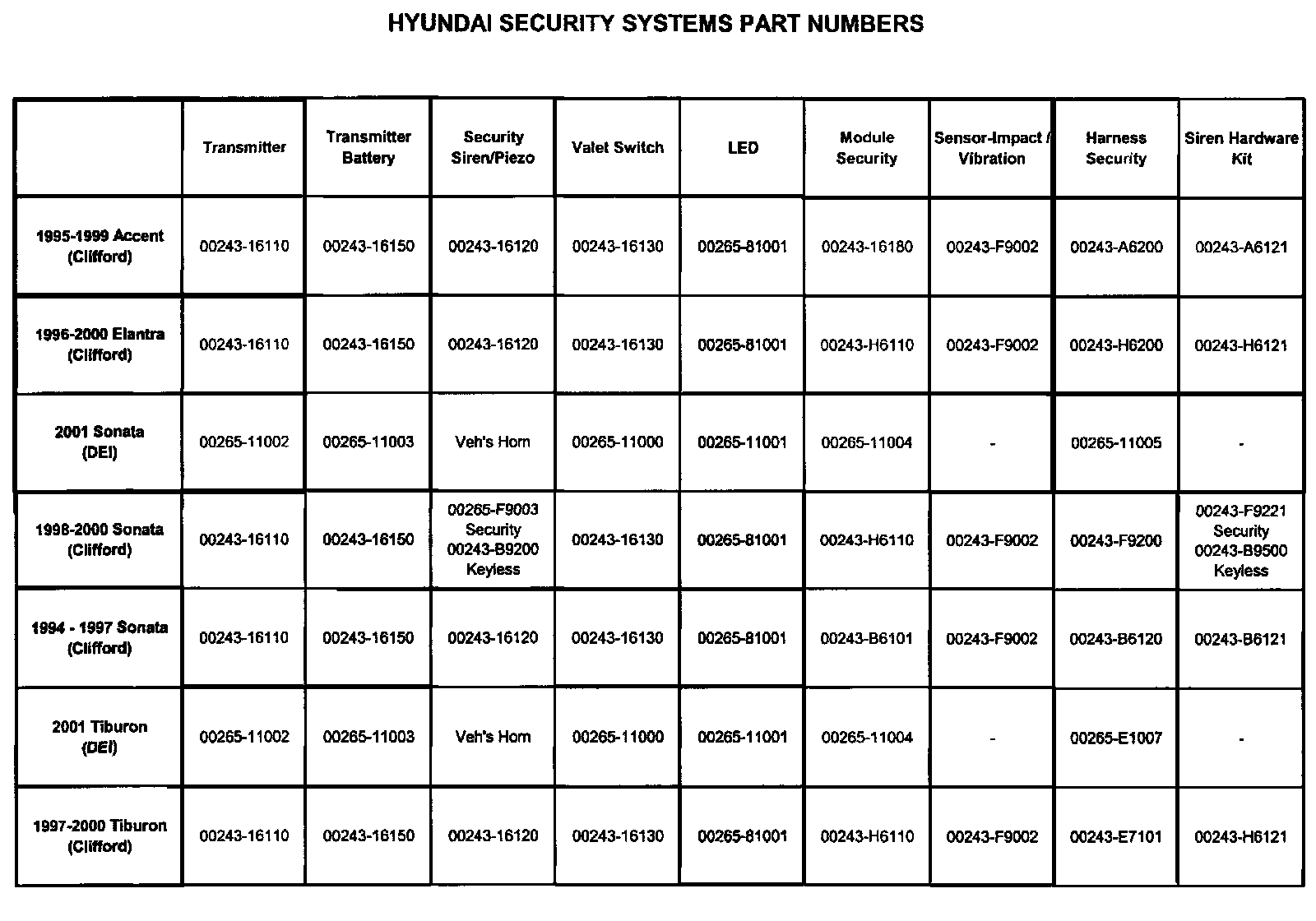

HYUNDAI SECURITY SYSTEM PART NUMBERS

Note 1:
All tests and measurements must be made with a digital voltmeter. Damage may result to the control unit or vehicle if a test-light is used.

Note 2:
All voltages should be measured from the security system's BLACK ground wire or fused +12 volt input wire unless otherwise specified.

Note 3:
Refer to the provided system diagrams where necessary.

Refer to the following previous TSB publications where appropriate:

1. 96-90-007 Troubleshooting guide for new security system (Clifford)

2. 00-90-002 2000 Elantra and 2000 Tiburon security system no crank condition

3. 01-90-003 Hyundai security system part numbers

4. 01-90-007 2001 Sonata and Tiburon security upgrade "Door Lock Learn Procedure"

5. 01-90-011 Programming Hyundai security systems

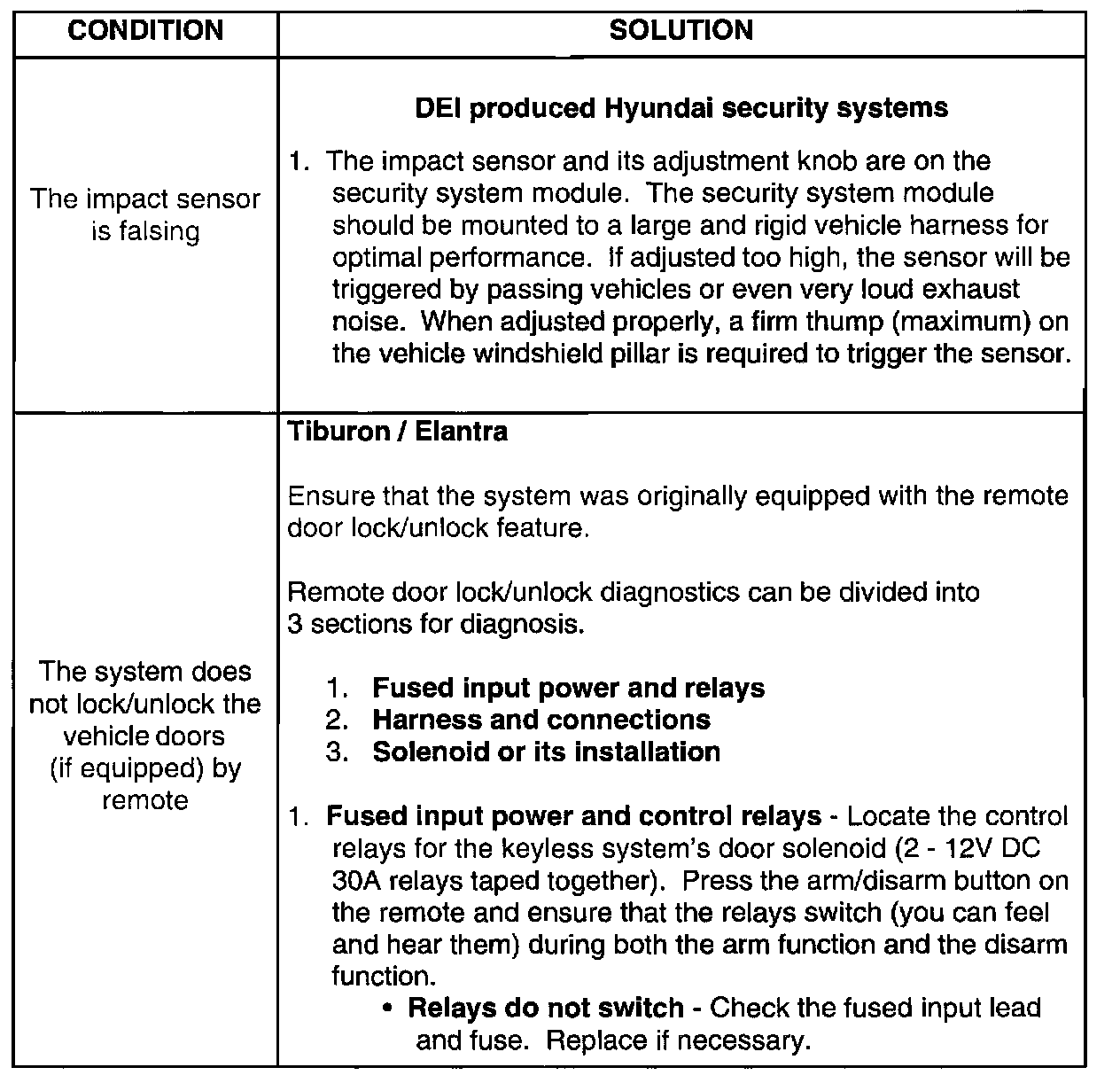

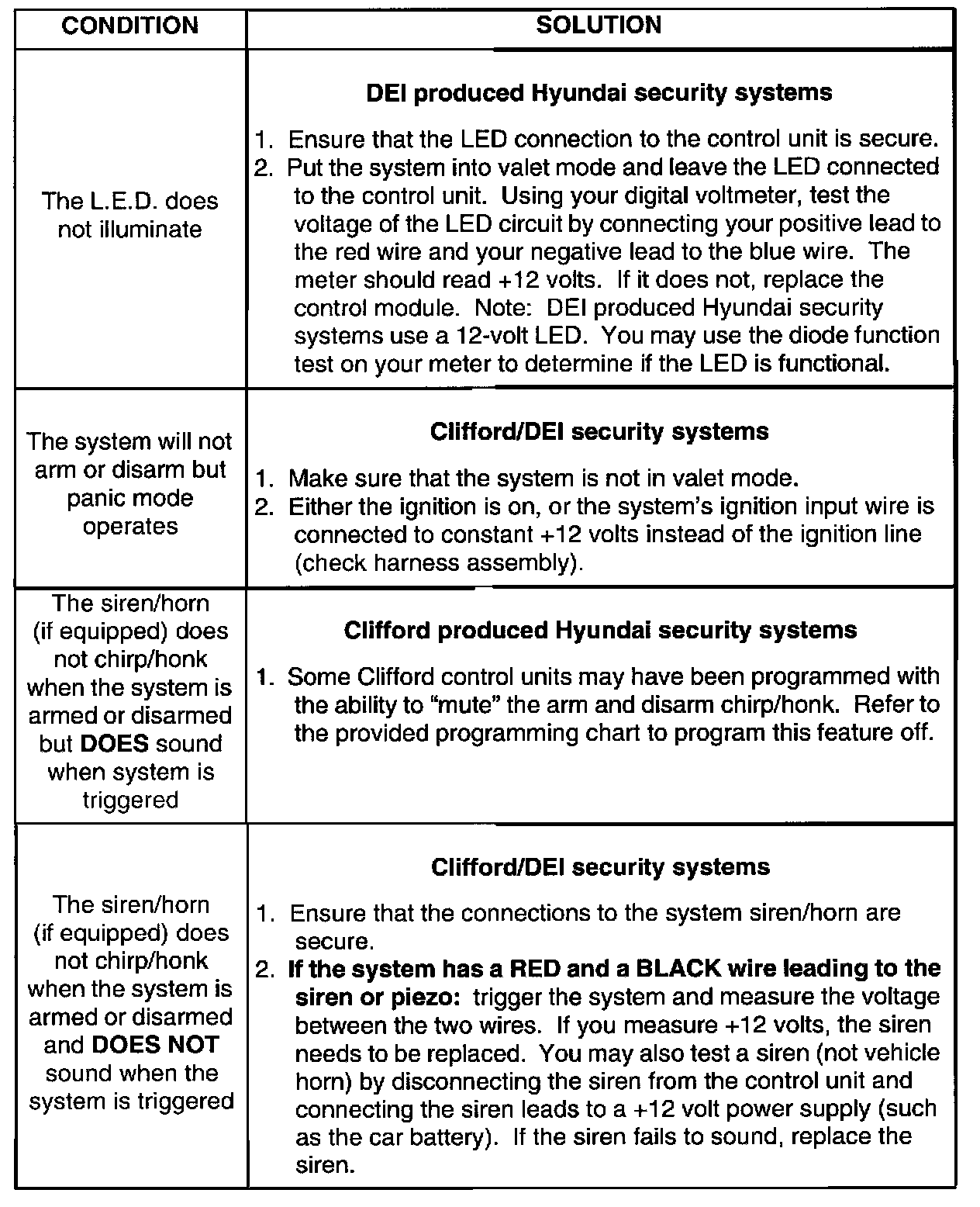

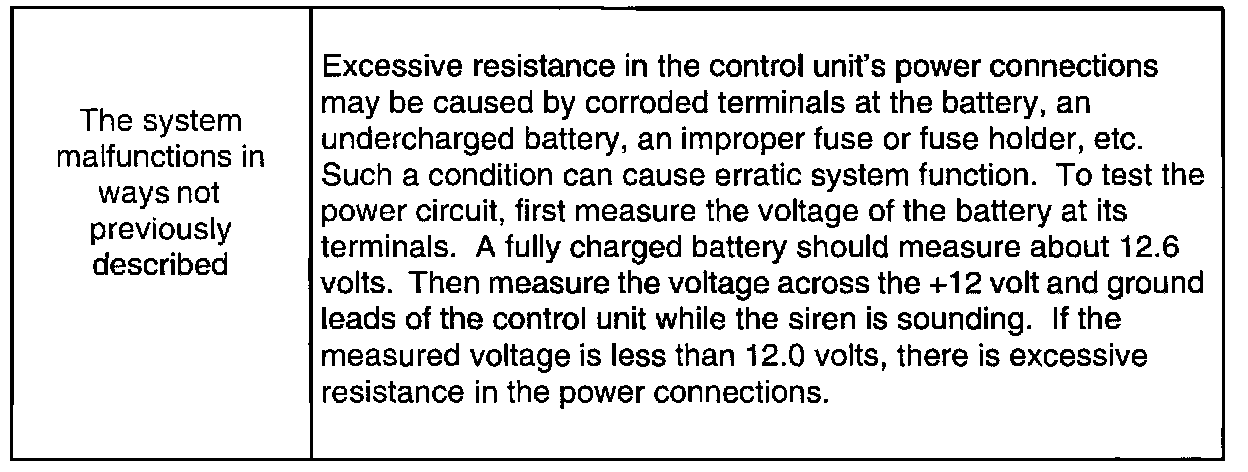

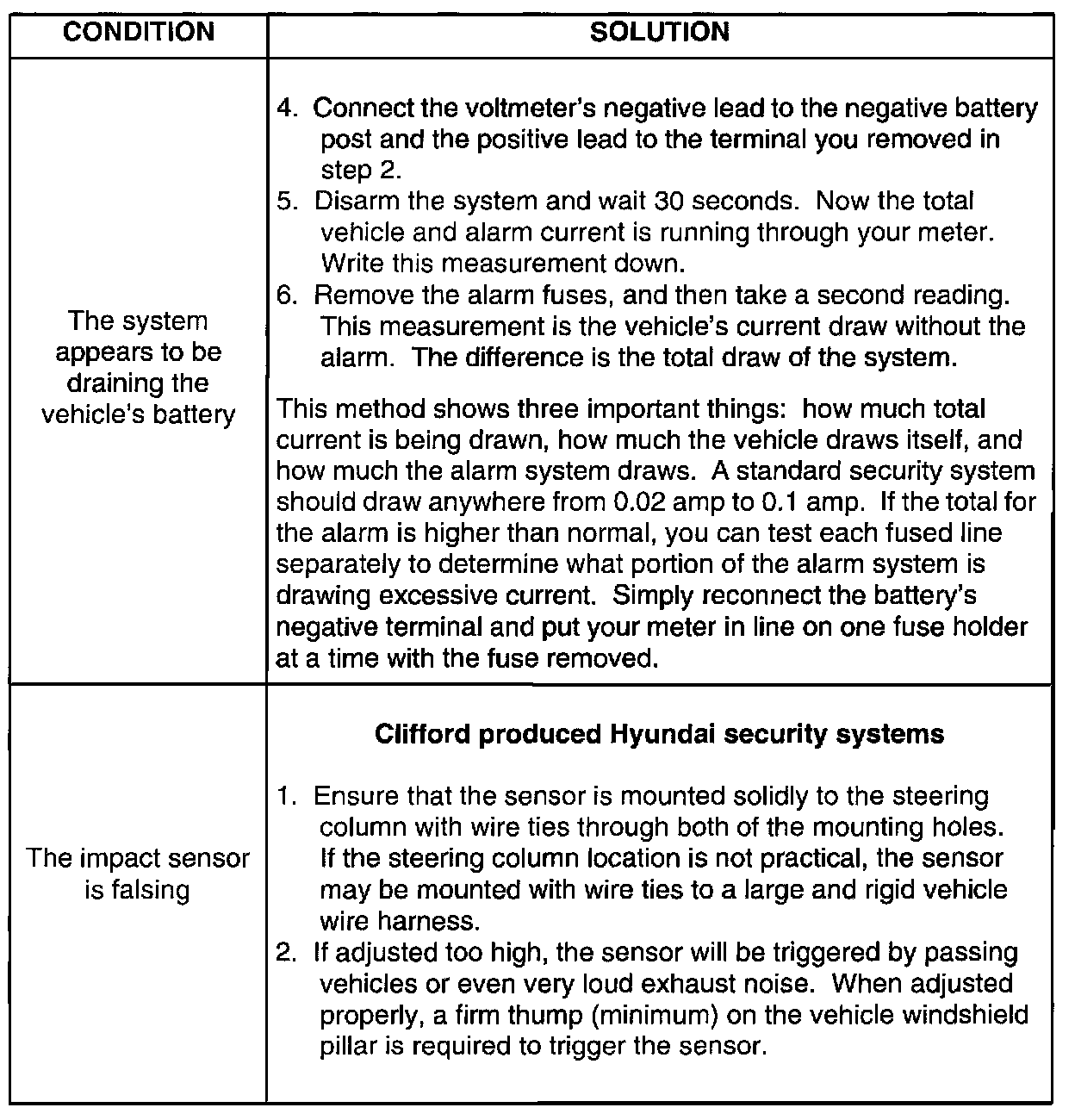

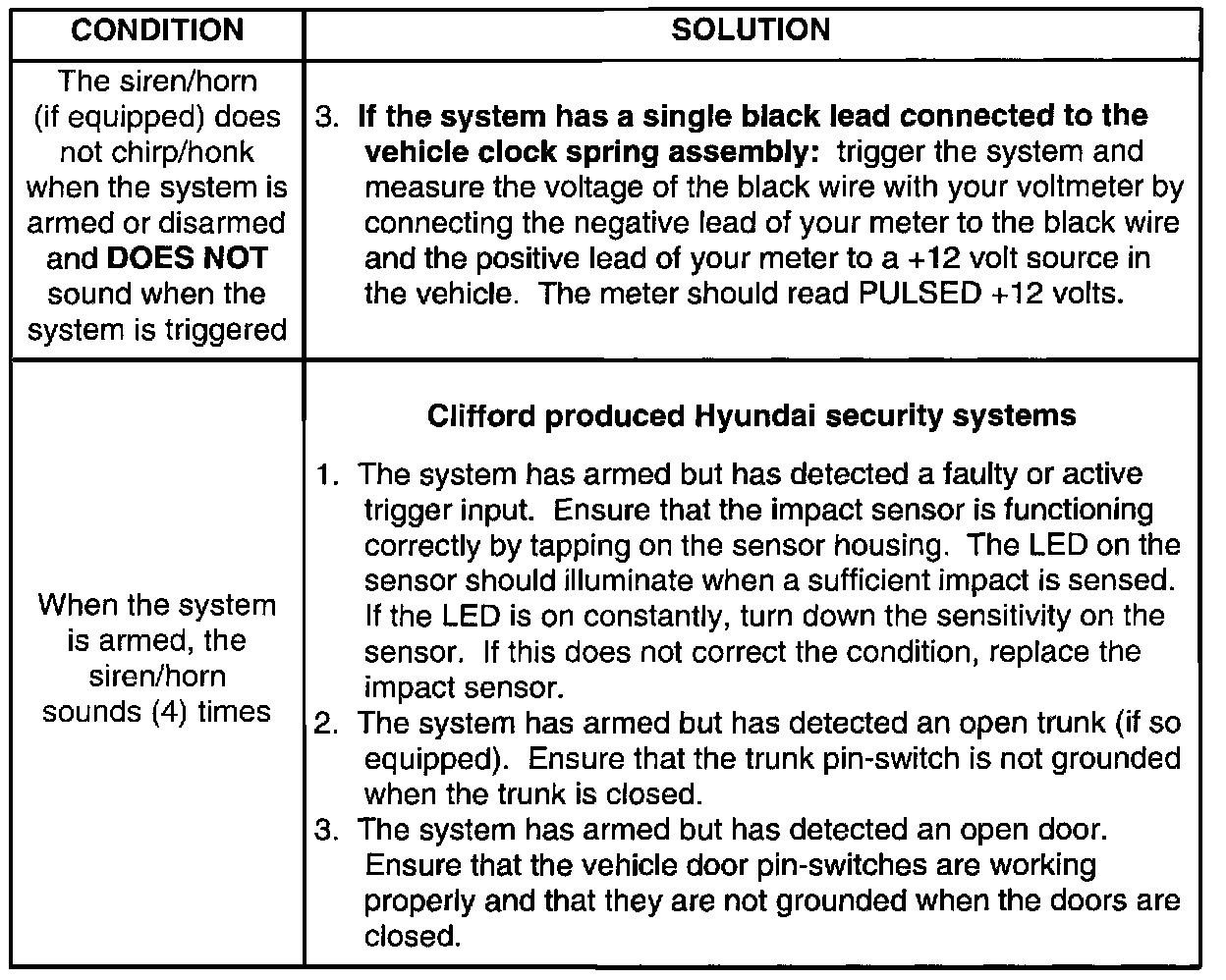

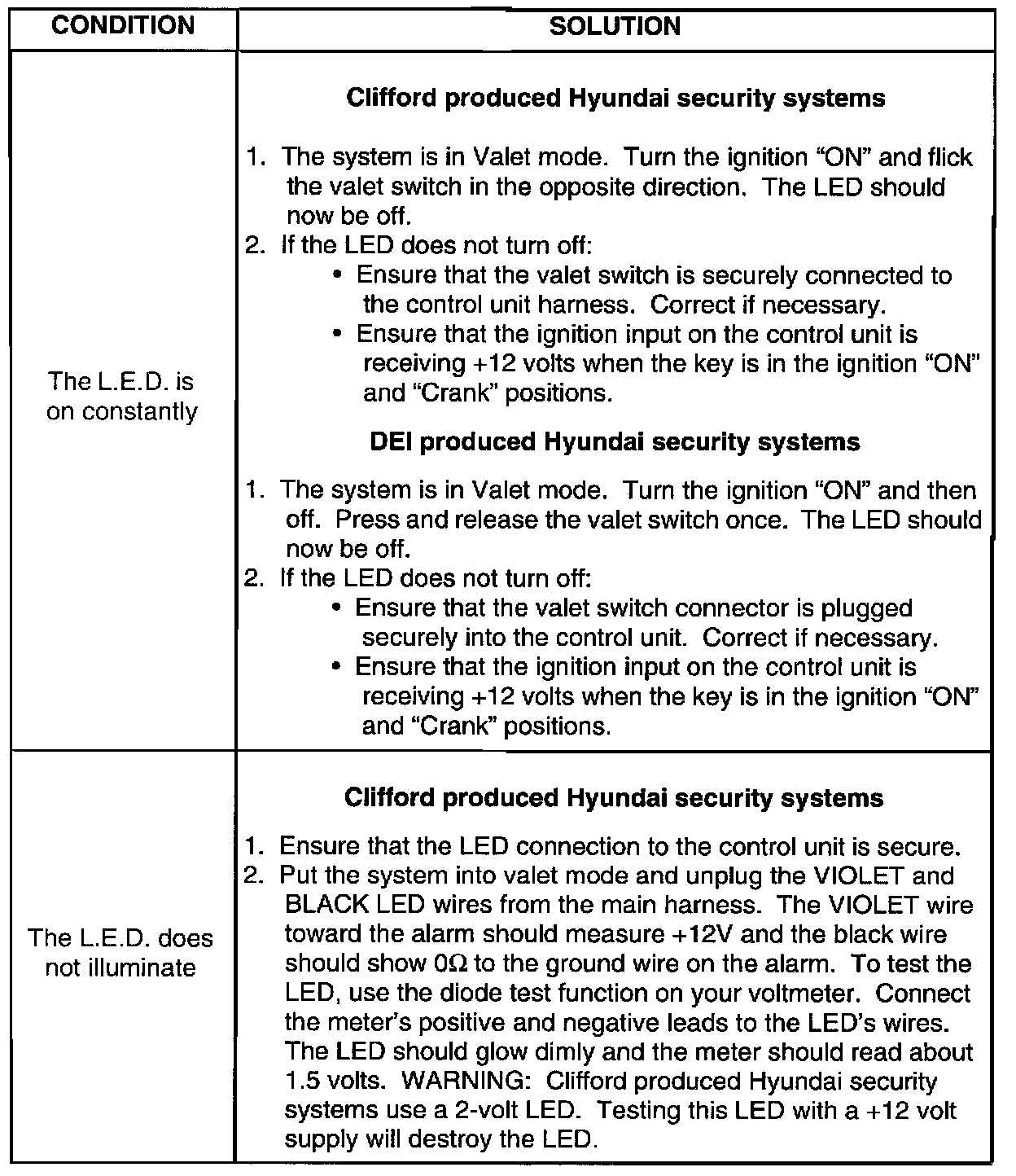

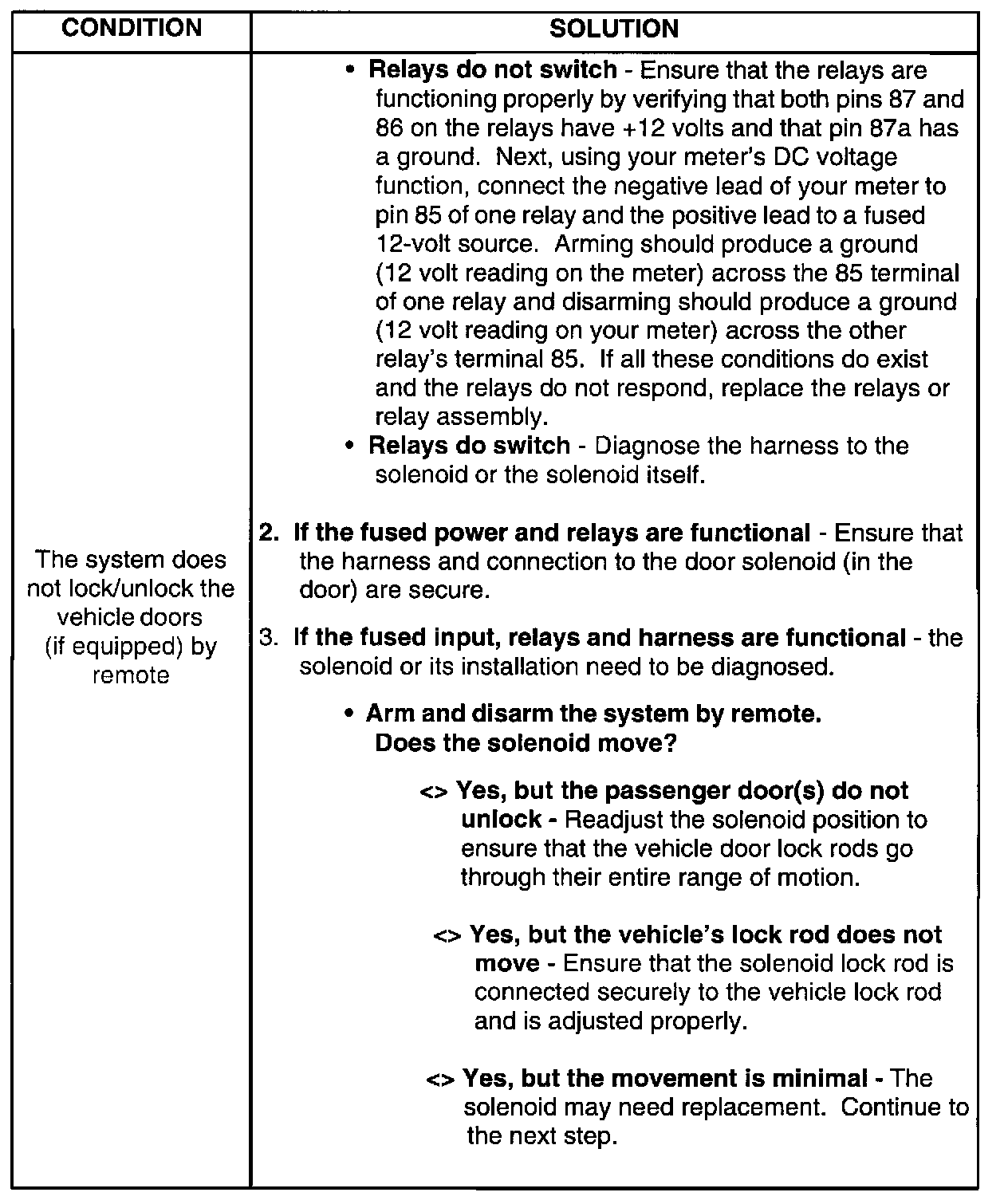

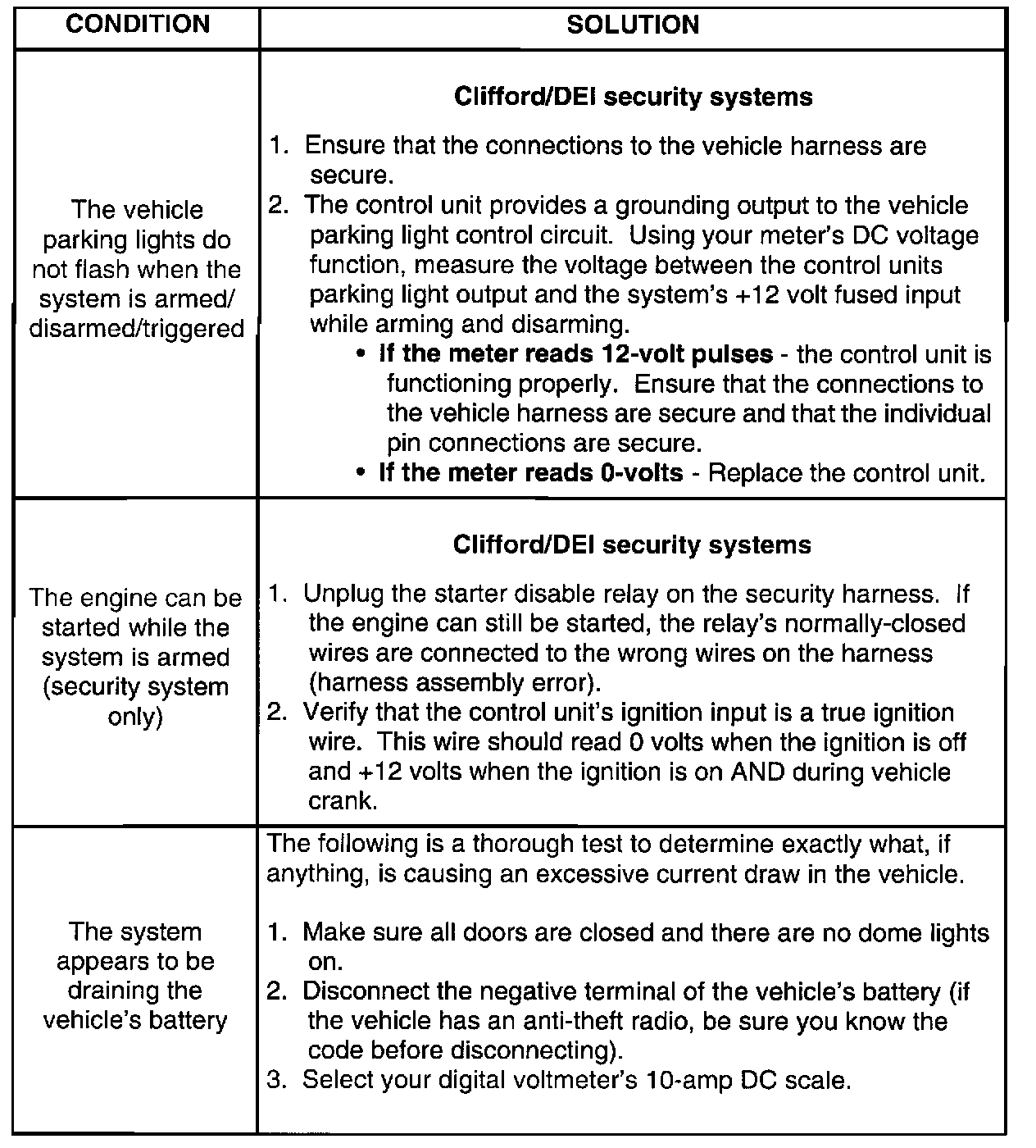

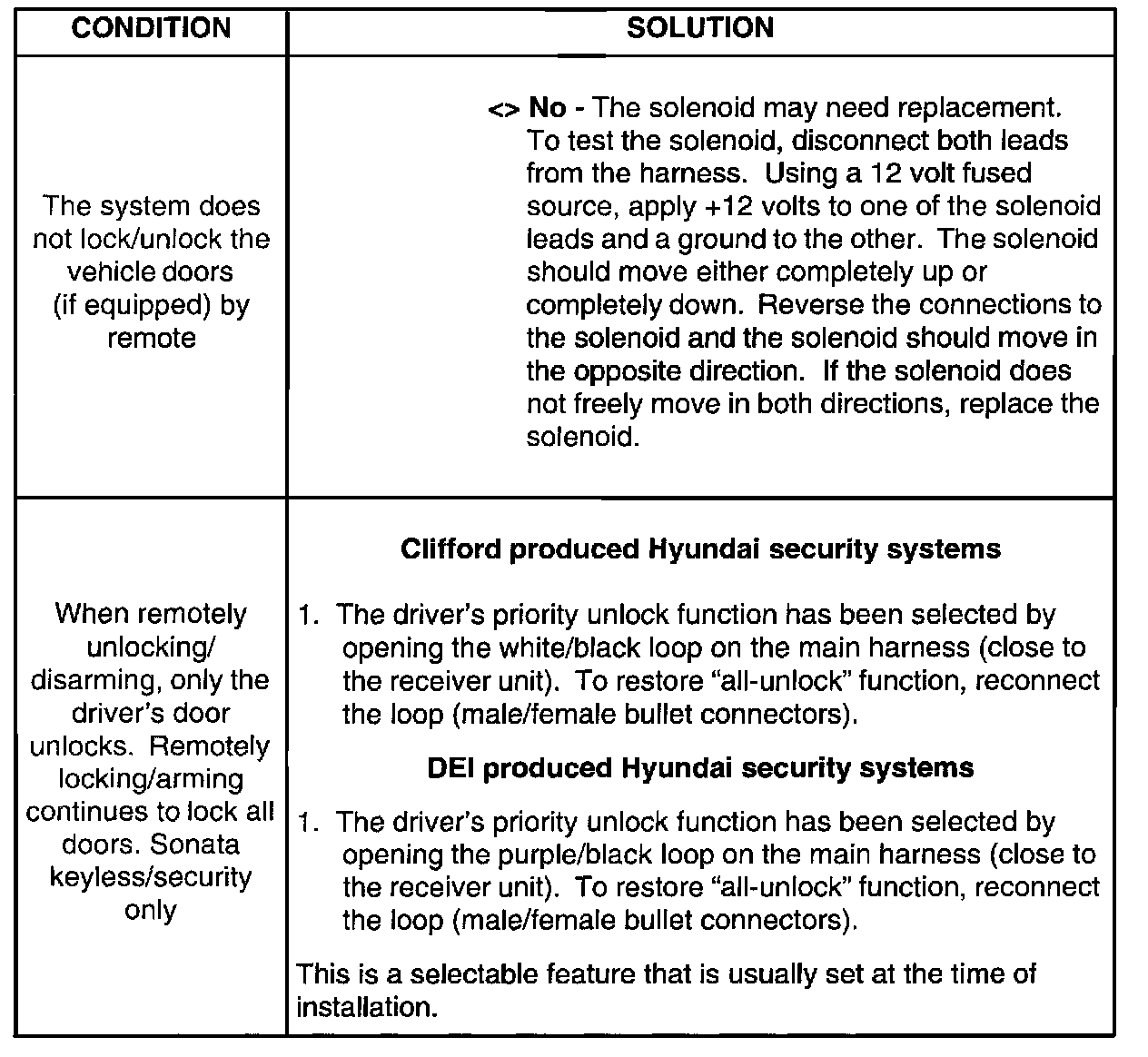

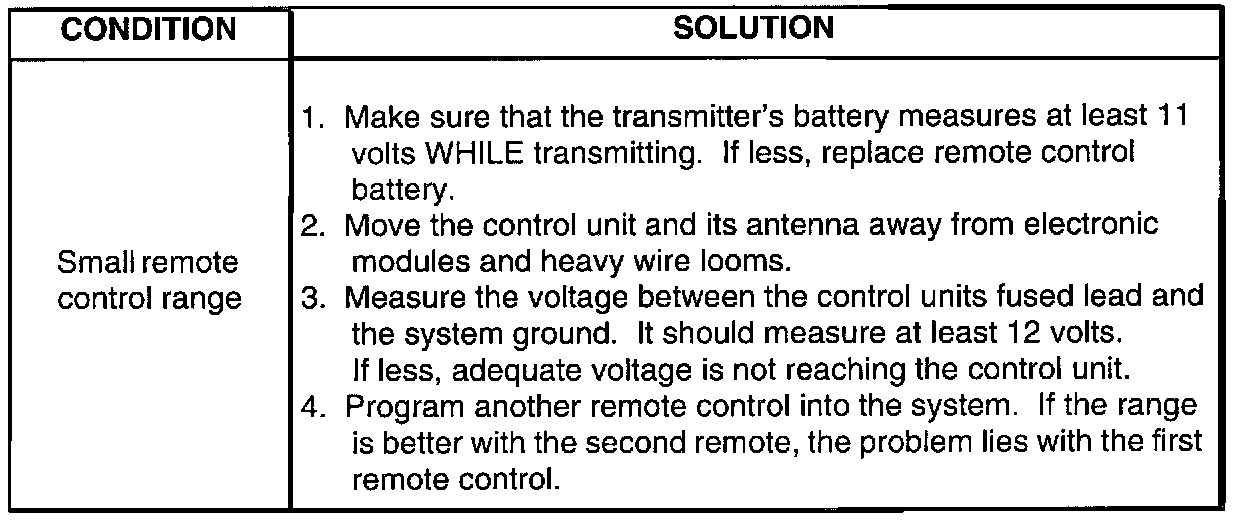

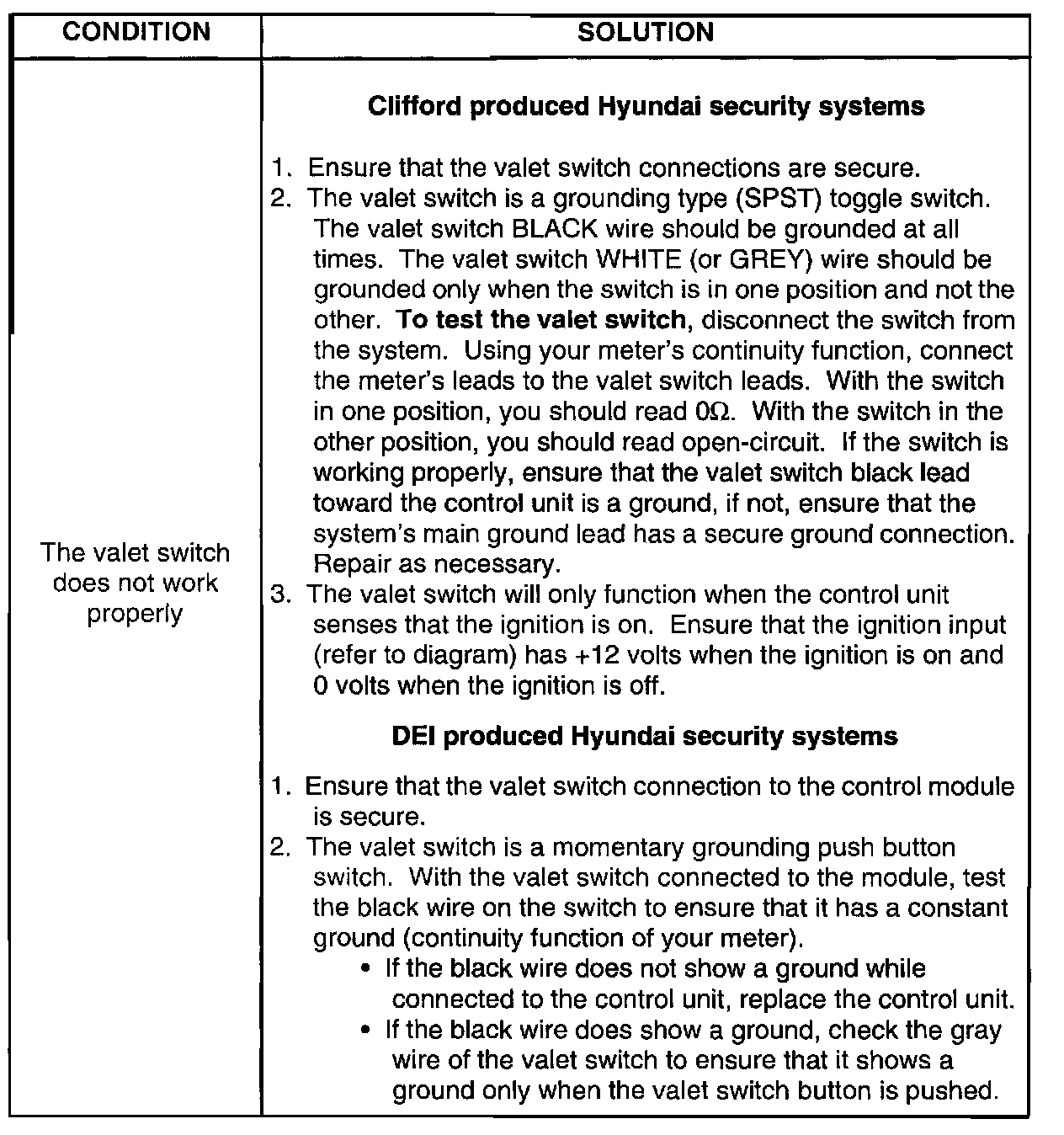

DIAGNOSTIC PROCEDURES

CLIFFORD SECURITY SYSTEMS

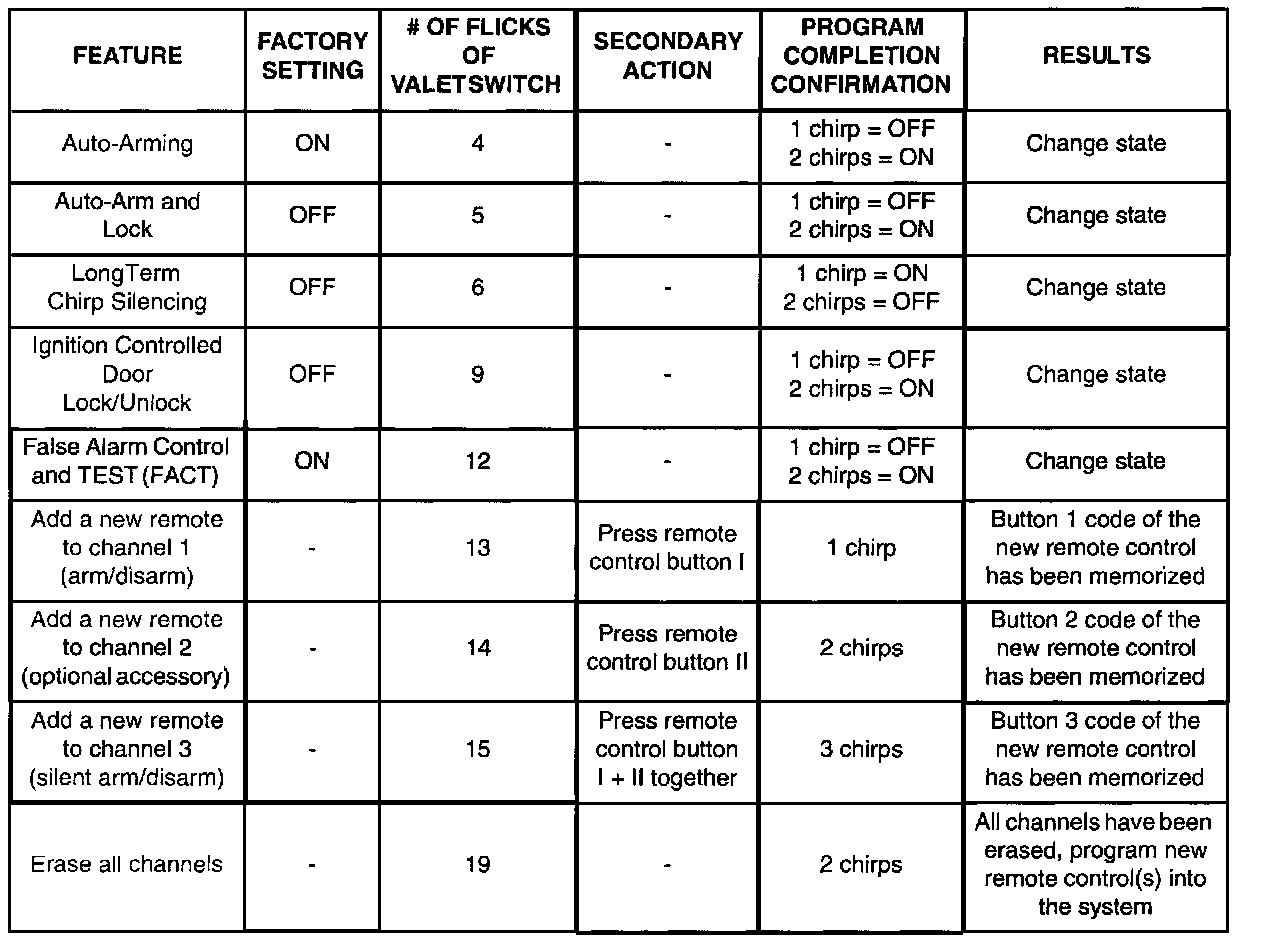

Programming Guide of Selectable Features





To enter programming mode, turn the ignition on and immediately begin flicking the valet switch the appropriate number of times. You must begin the programming steps within 30 seconds of turning the ignition on or the control module will ignore the valet switch until you turn the ignition off and then back on again.

NOTE:
The # of flicks required is an up/down or a down/up motion (counts as 1 cycle) depending on how the switch was originally installed. You MUST start in the valet OFF position (LED off).

EXAMPLE:
To add a new remote control to channel 1 (arm/disarm), turn the ignition on and then immediately begin flicking the switch up/down, up/down, up/down, etc. 13 times. Within 10 seconds, press button 1 on the new remote control. The system will "chirp" once (if equipped with a siren/horn) to acknowledge that it has stored the new remote control code into memory.

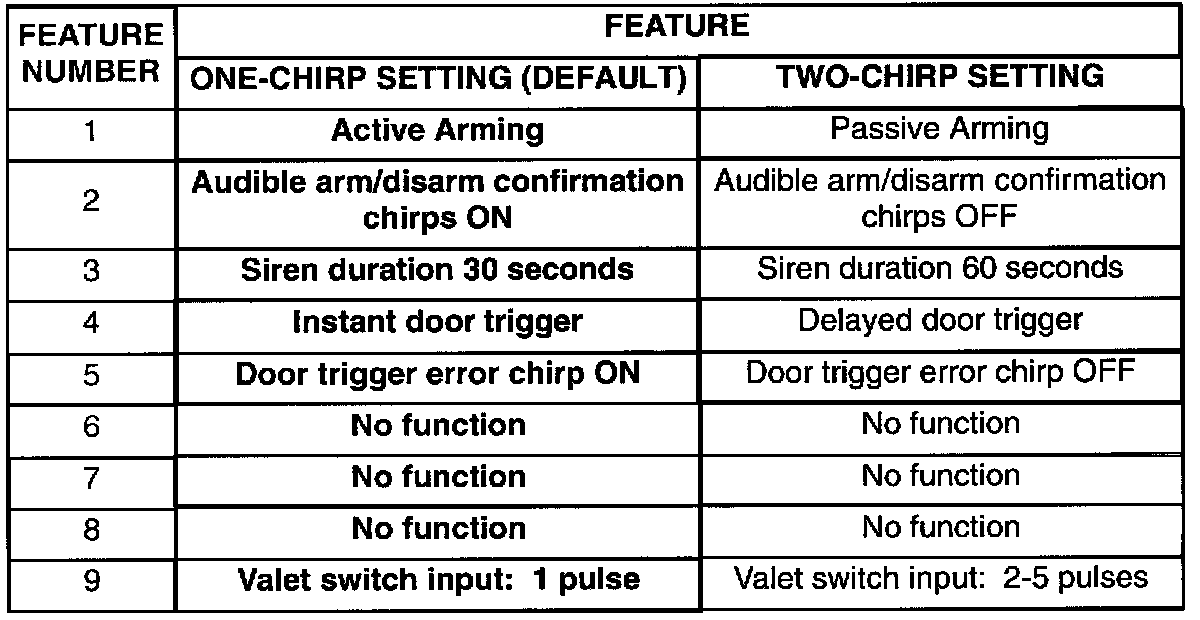

DEI SECURITY SYSTEMS

Programming Guide of Selectable Features

To enter programming mode, open a vehicle door and then turn the ignition on and then off.

1. Press and release the valet switch the number of times corresponding to the feature you wish to program. For example, to access feature 3 (siren duration), press and release the valet switch three times.

2. Then press the button once more and HOLD it. The siren will chirp the number of times corresponding to the feature you have accessed.

3. Then, while holding the valet switch button, program which setting by pressing the remote control buttons. Pressing the arm button will select the one-chirp setting while pressing the disarm button will select the two-chirp setting.

4. You may now release the valet switch.

NOTE:
The default settings are indicated in bold.
