Security Systems - Availability/Applications
Group: BODY ELECTRICALNumber: 01-90-003
Date: APRIL, 2001
Model: ALL
Subject:
HYUNDAI SECURITY SYSTEM PART NUMBERS
DESCRIPTION:
This bulletin provides the following information:
1. Currently available security Systems that are applicable to Hyundai vehicles
2. System application by model and model year

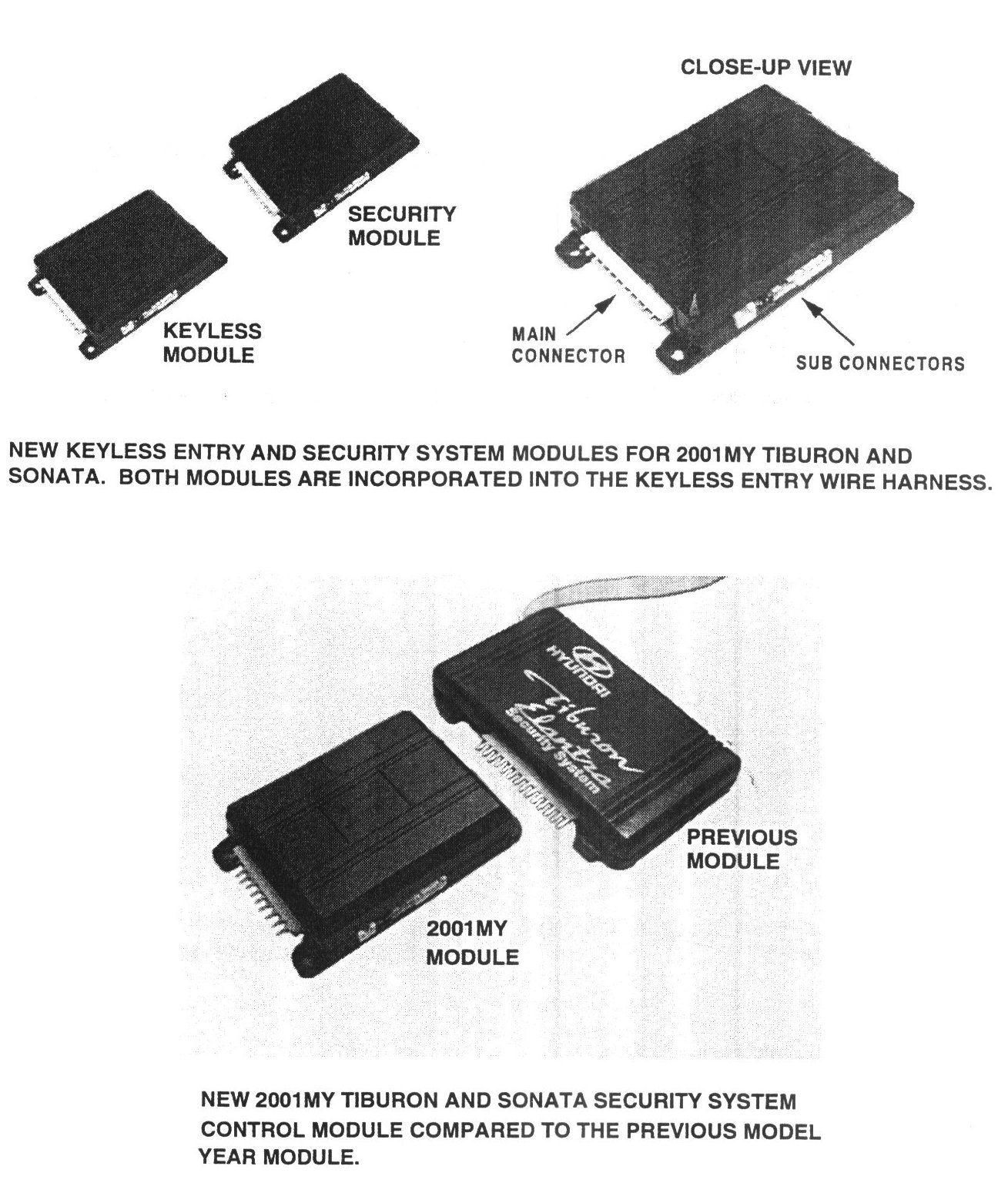

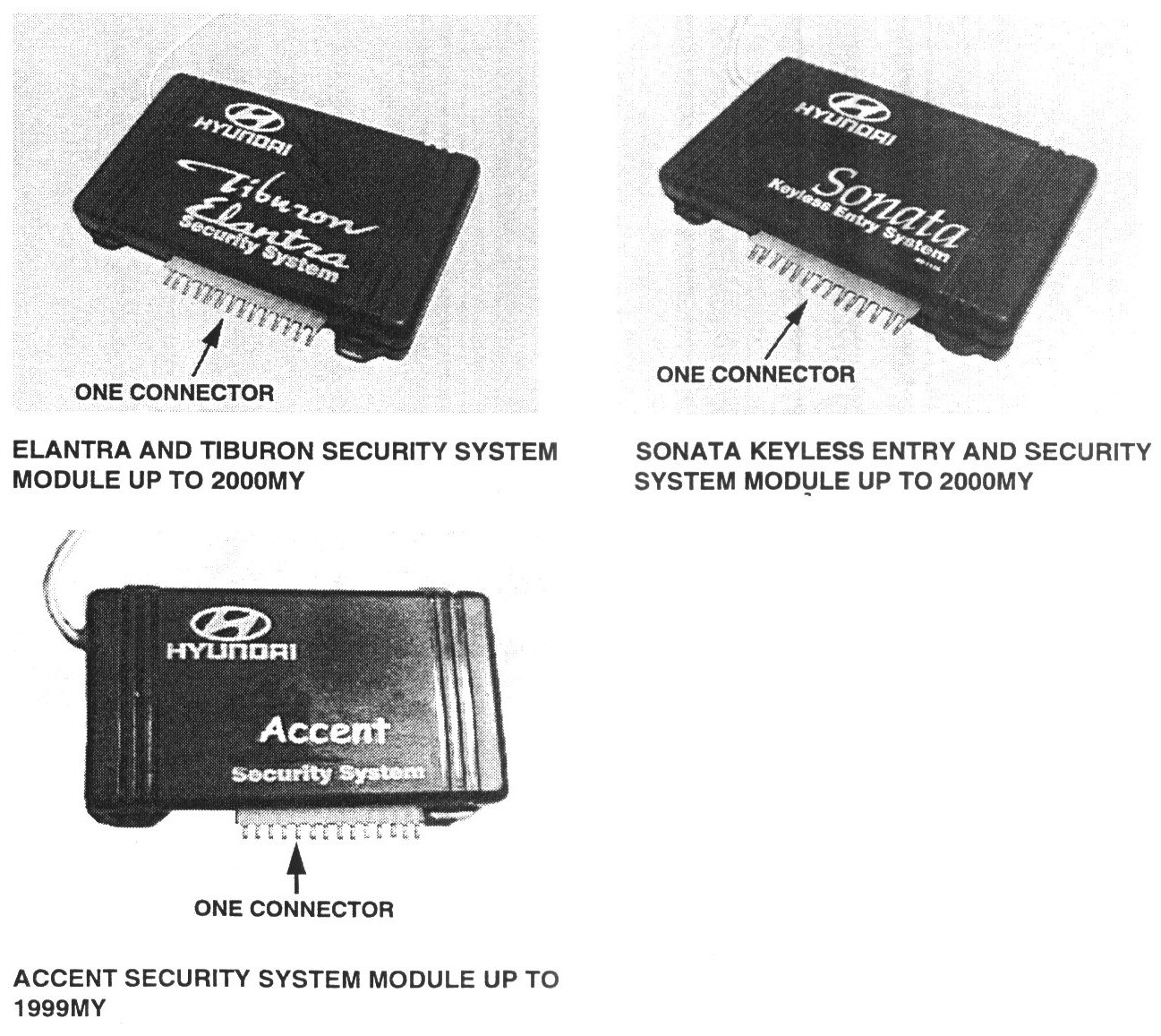

3. Differences in the control module appearance

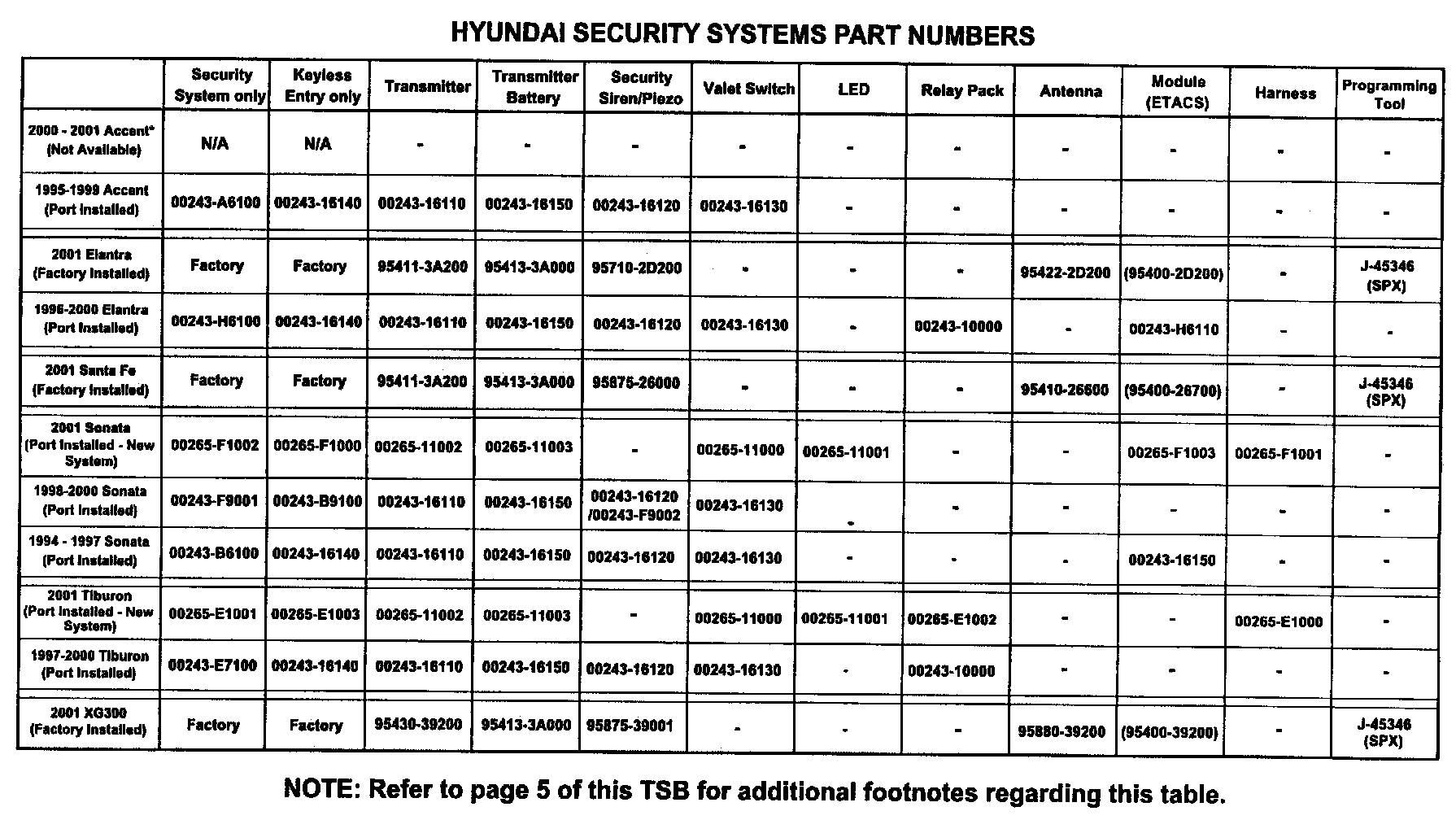

4. Quick reference chart for ordering replacement parts
The Control Module for the 2001 Elantra, Santa Fe and XG300 Factory security Systems is incorporated in the Electronic Time and Alarm Control System (ETACS). See photos shown.

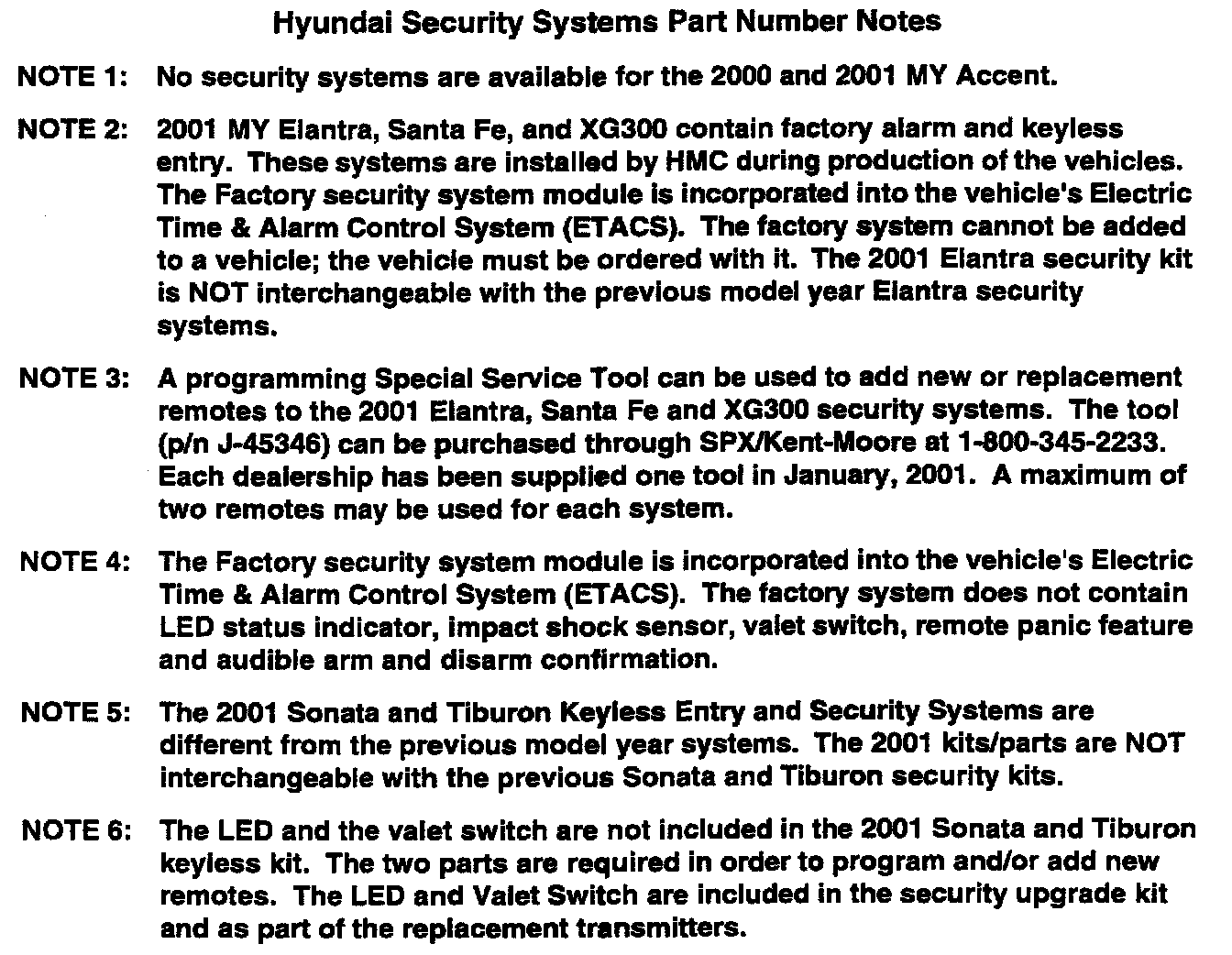

Hyundai Security Systems Part Number Notes
