Security System - Programming: Overview
Group: BODY ELECTRICALNumber: 01-90-011
Date: SEPTEMBER, 2001
Model: ALL
Subject:
PROGRAMMING HYUNDAI SECURITY SYSTEM
DESCRIPTION:

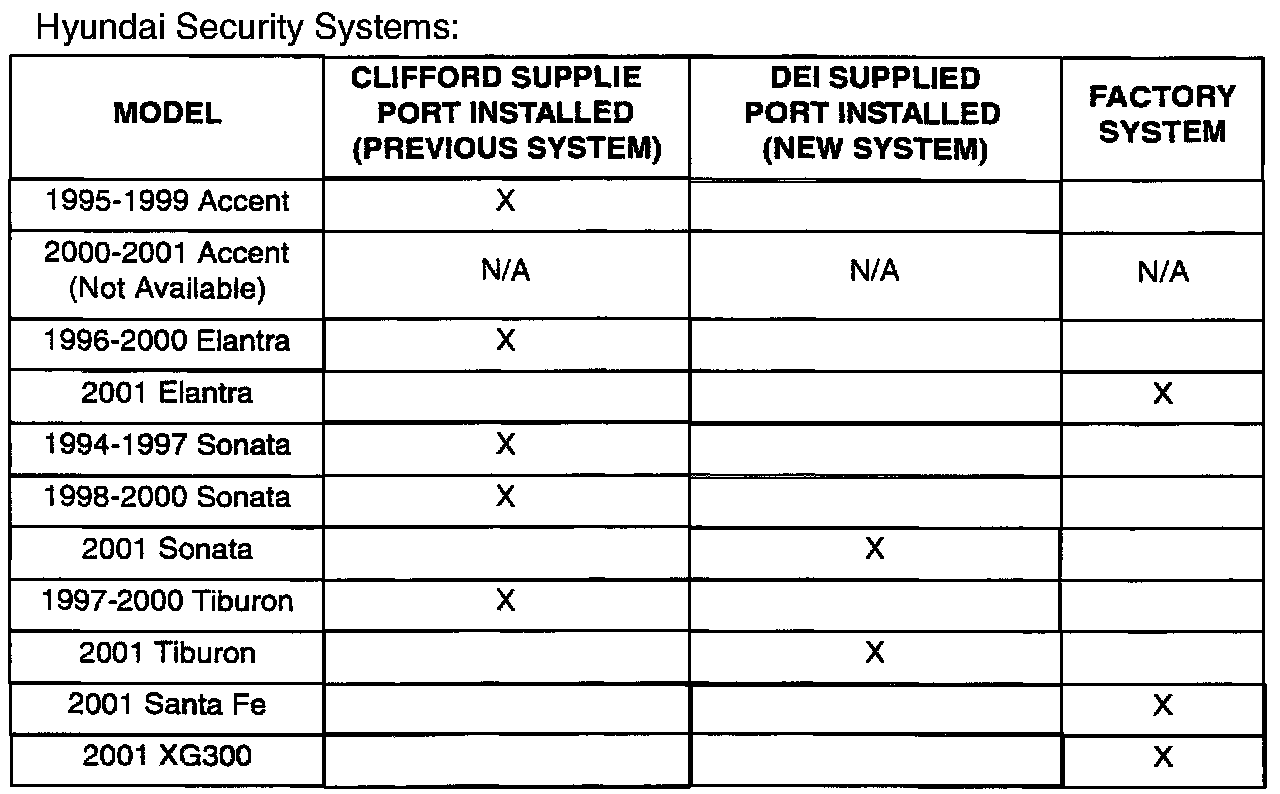

This bulletin provides programming procedures for all security Systems available on Hyundai vehicles. There are three different types of security systems available: Clifford Supplied System1 Directed Electronics, Inc. (DEI) Supplied System and Factory Installed System. The chart shows which system is available for each model year Hyundai.
NOTES:
^ The three security system kits/parts are not interchangeable.
^ Refer to TSB 01-90-003 for Hyundai Security System Part Numbers.
^ Refer to pages 12-14 for security system transmitter, Valet Switch and LED illustrations.
