Factory Installed System

The 2001 MY Elantra, Santa Fe and XG300 contain factory alarm and keyless entry. These Systems are installed by HMC during production of these vehicles. The factory system cannot be added to a vehicle; the vehicle must be ordered with it. The factory security kit is NOT interchangeable with the Clifford or DEI security systems.





NOTE:

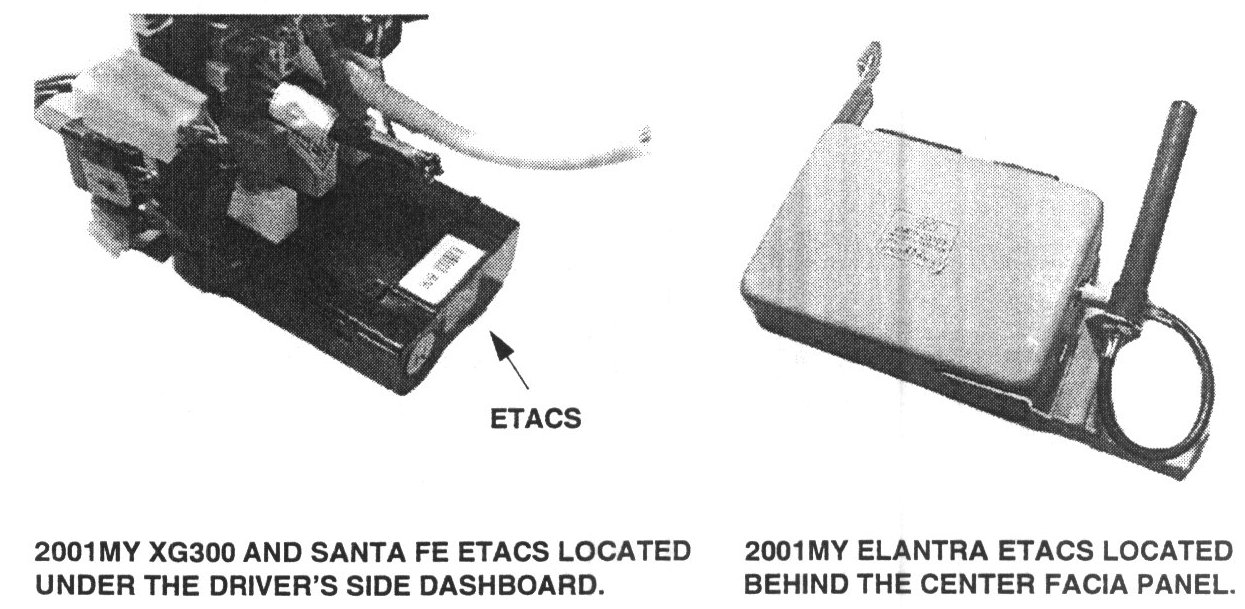

The factory security system module is incorporated into the vehicle's Electronic Time and Alarm Control System (ETACS). (See photos shown). The factory system does not contain an LED status indicator, impact shock sensor, valet switch, remote panic feature or audible arm and disarm confirmation.

Code Saving Tool Kit:





A programming Special Service Tool can be used to add new or replacement remotes to the 2001 MY Elantra, Santa Fe and XG300 security Systems. The tool (P/N J-45346) can be purchased through SPX/Kent-Moore at 1-800-345-2233. Each dealership was supplied one tool in January, 2001. A maximum of two remotes may be used for each system.

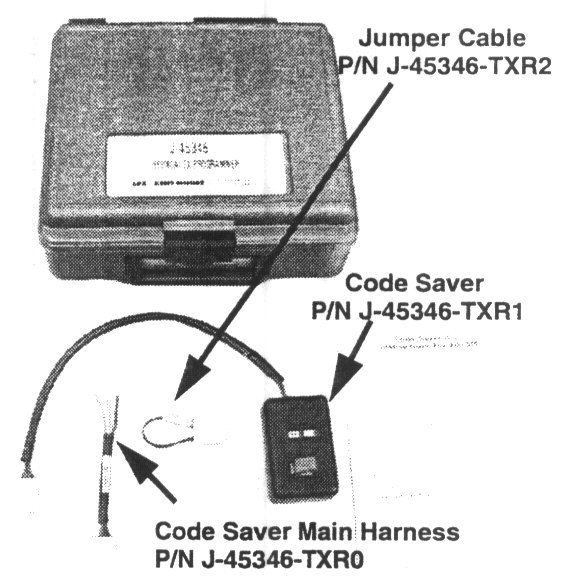

^ The J-45346 tool (Transmitter Programmer Kit) is required to reprogram the ETACS control module to recognize remotes. To reprogram the ETACS control module, the following three items are required.

^ Code Saver (P/N J-45346-TXR1)

^ Code Saver Main Harness (P/N J-45346-TXR0)

^ Jumper Cable (P/N J-45346-TXR2)

Programming Instructions for Factory Installed System:

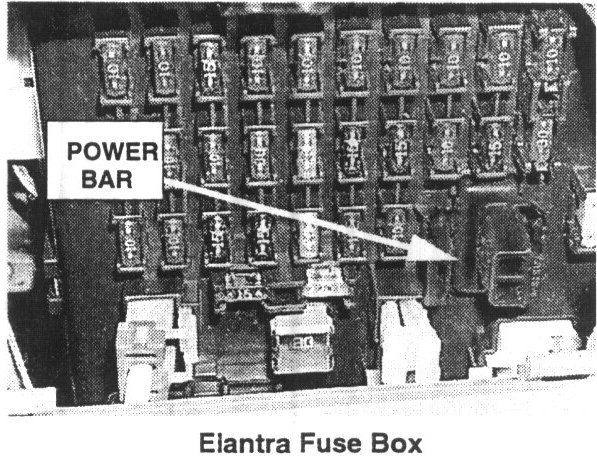

1. Verify that the power bar in the interior fuse box is in the "On" position.

2. Remove the ignition key.

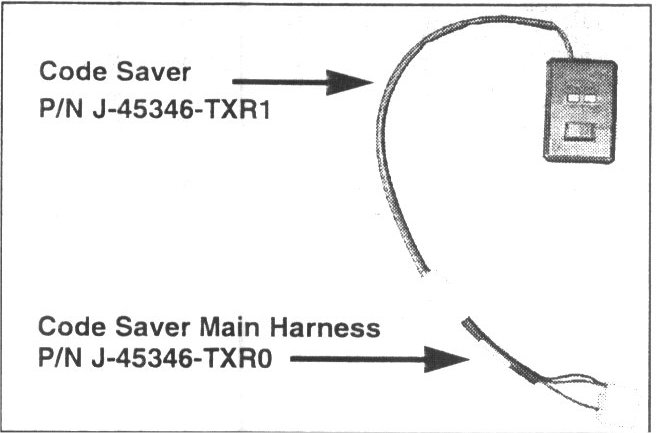

3. Connect the Code Saver Main Harness (J-45346-TXR0) and the Code Saver (J-45346-TXR1) together securely.

NOTE:
For the 2001 XG300, connect the Code Saver Main Harness and the Jumper (J-45346-TXR2) together securely.

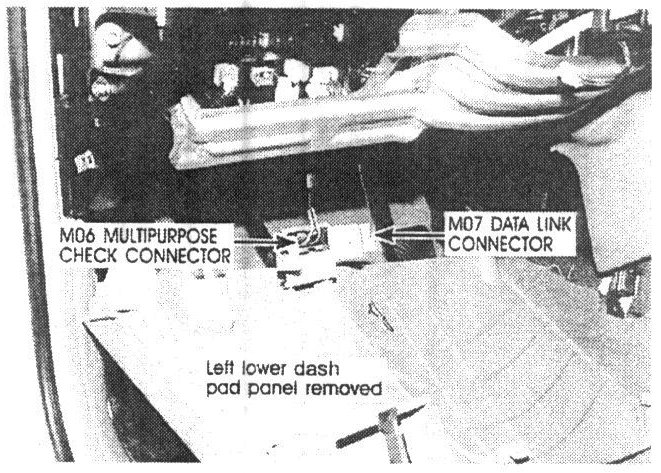

4. Connect Code Saver Main Harness to the white 10-pin multipurpose connector located under the dash.

5. Move Code Saver switch from "Ready" to "Save".

NOTE:
Disregard this step when programming the 2001 XG300.

6. Press the "Lock" or "Unlock" button on either remote and release after the LED pulses on and off ONE cycle.

7. Repeat previous step with remaining remote. Move Code Saver switch back to "Ready" position.

NOTE:
Disregard this step when programming the 2001 XG300.

8. Unplug Code Saver Main Harness from vehicle's multipurpose connector.

9. Test remotes.

NOTE:
The ETACS control module in a vehicle can only be programmed to accept two remote transmitters and MUST be programmed for both remote transmitters at the same time.

FACTORY SYSTEM:

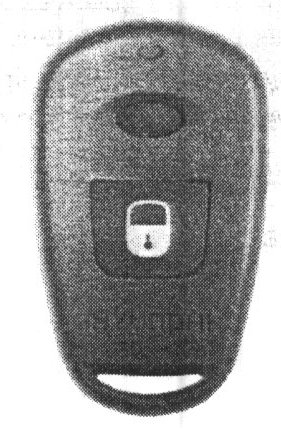

1. Remote transmitter (P/N 95411-3A200) for 2001 Elantra and 2001 Santa Fe.

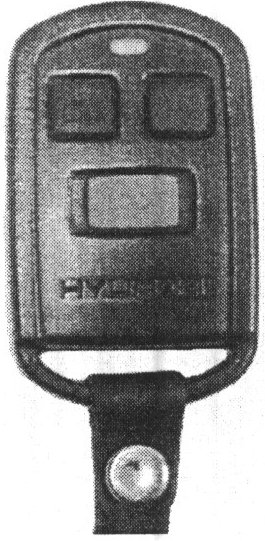

2. Remote transmitter (P/N 95430-39200) for 2001 XG300.
