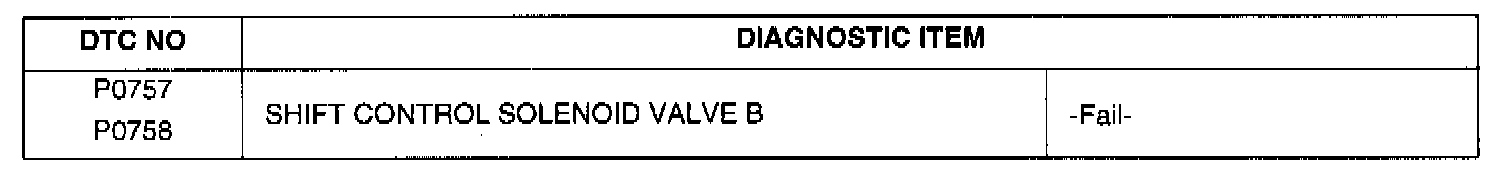

Shift Control Solenoid Valve B - Fail

DESCRIPTION
- Control fluid pressure that is acting on shift control valve (SCV) through ON/OFF signals from TCM to control shift.
- If resistance value of SCSV-B is high, No. P0757 is output. (open circuit).
- If resistance value of SCSV-B is low, No. P0758 is output. (short circuit).

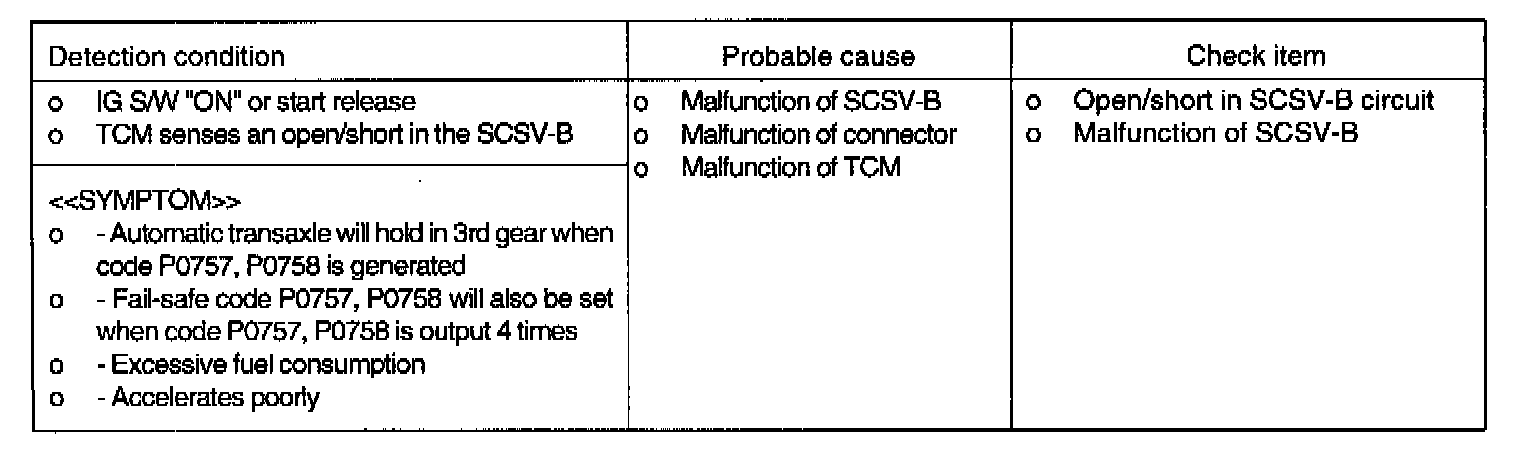

TROUBLESHOOTING GUIDE





CIRCUIT DIAGRAM

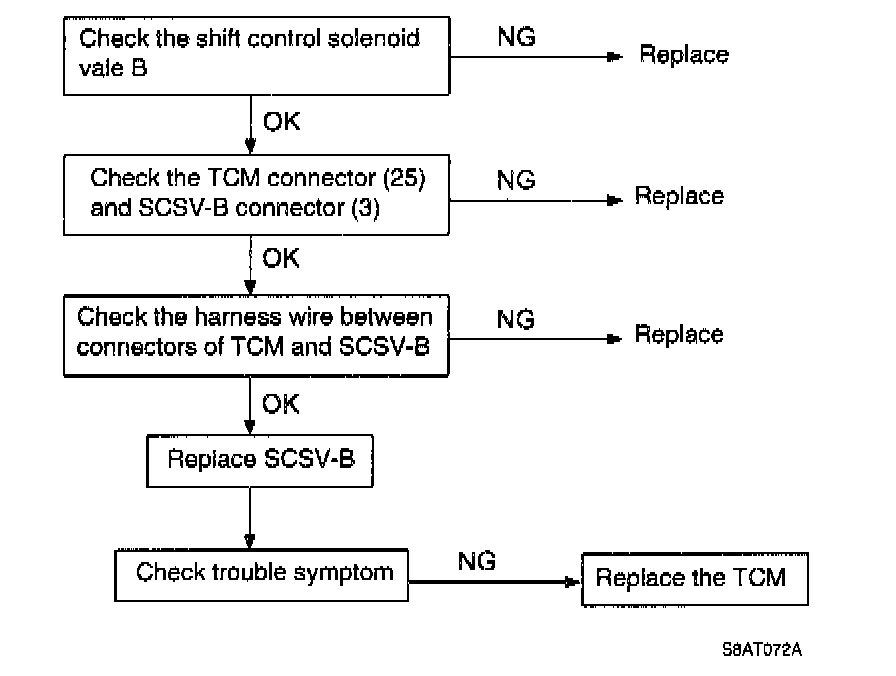

TROUBLESHOOTING FLOW
