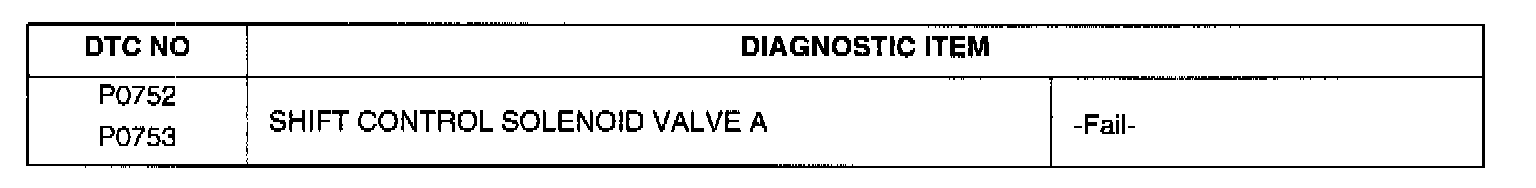

Shift Control Solenoid Valve A -Fail

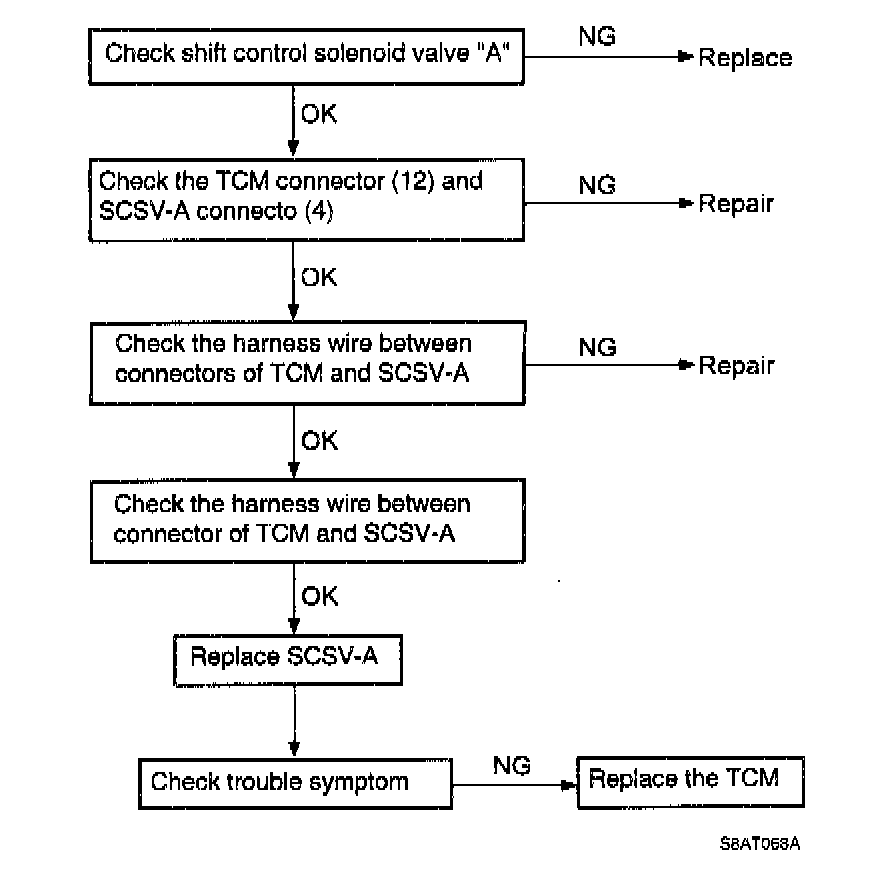

TROUBLESHOOTING FLOW
DESCRIPTION
- Control fluid pressure that is acting on shift control valve (SCV) through ON/OFF signals from TCM to control shift.

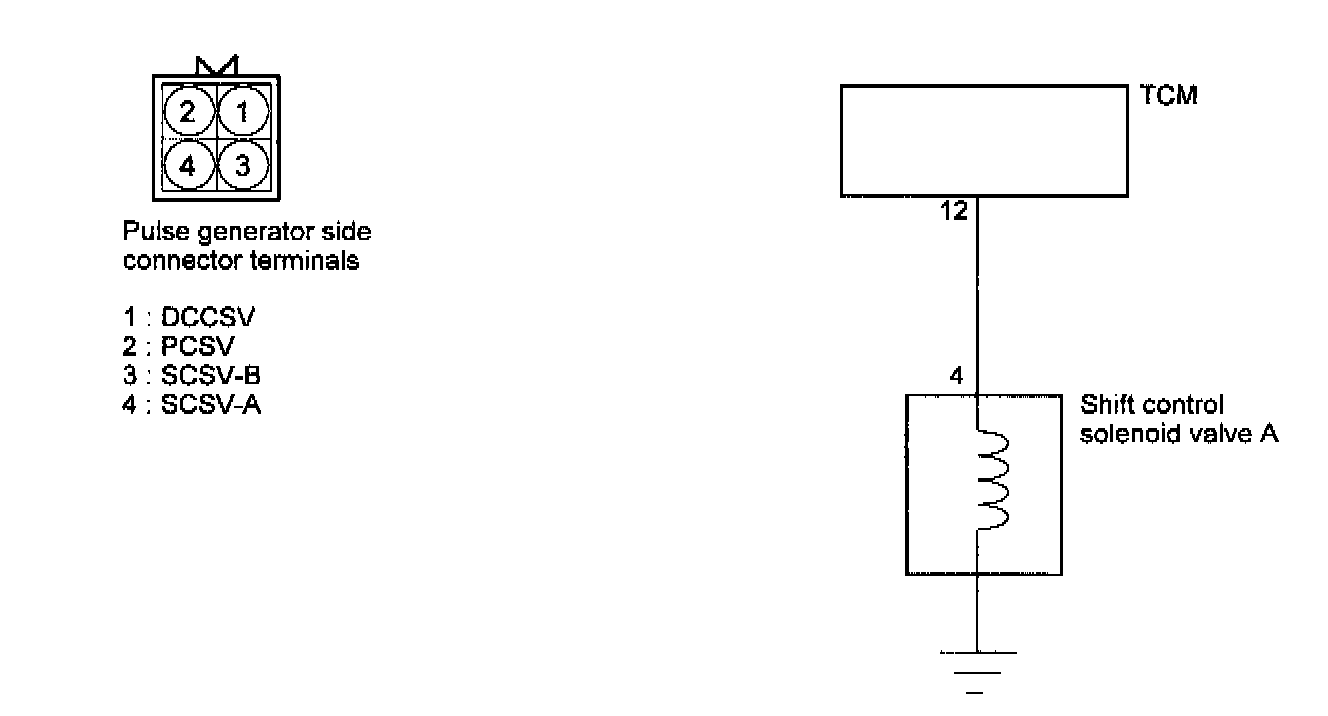

CIRCUIT DIAGRAM
