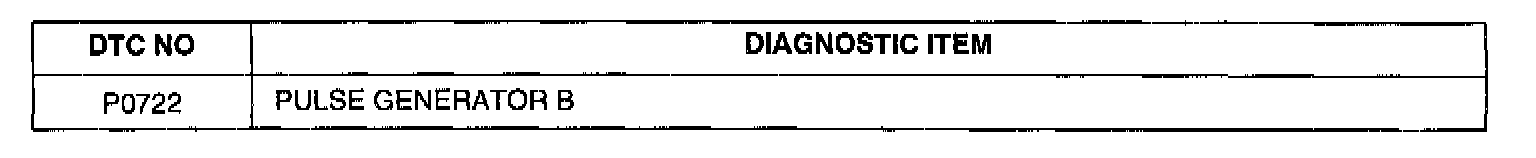

Pulse Generator B - Fail

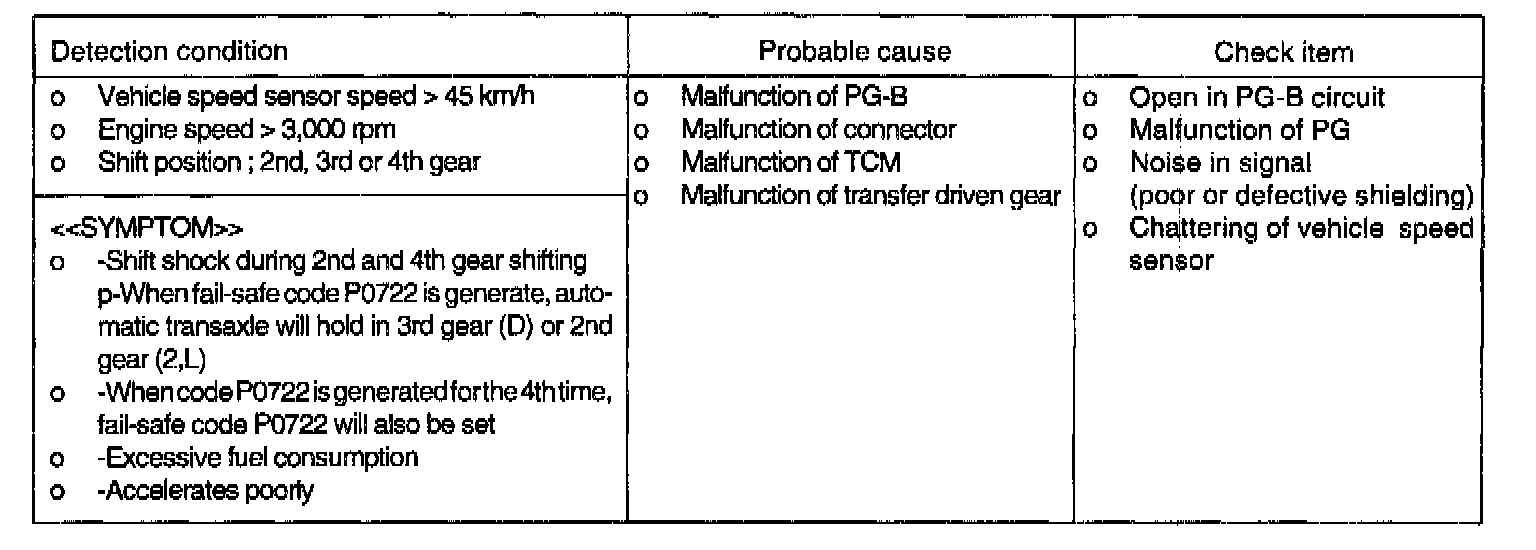

DESCRIPTION
- Detect number of revolutions transfer driven gear to monitor vehicle speed.
- If DTC P0722 is output 4 times, there is an open circuit in PG-B fail-safe code P0722 is output and the vehicle is locked in 3rd gear (D) or 2nd gear (2,L) as a fail-safe measure.

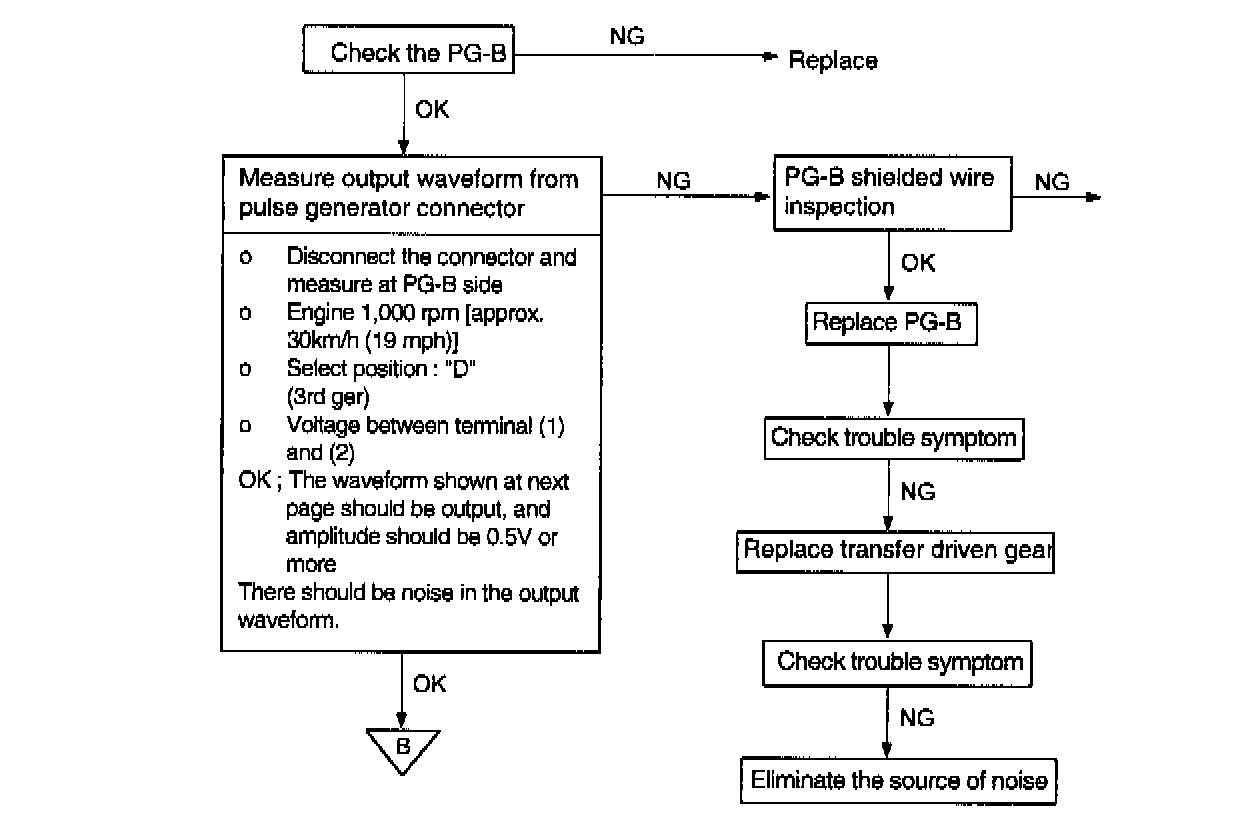

TROUBLESHOOTING FLOW

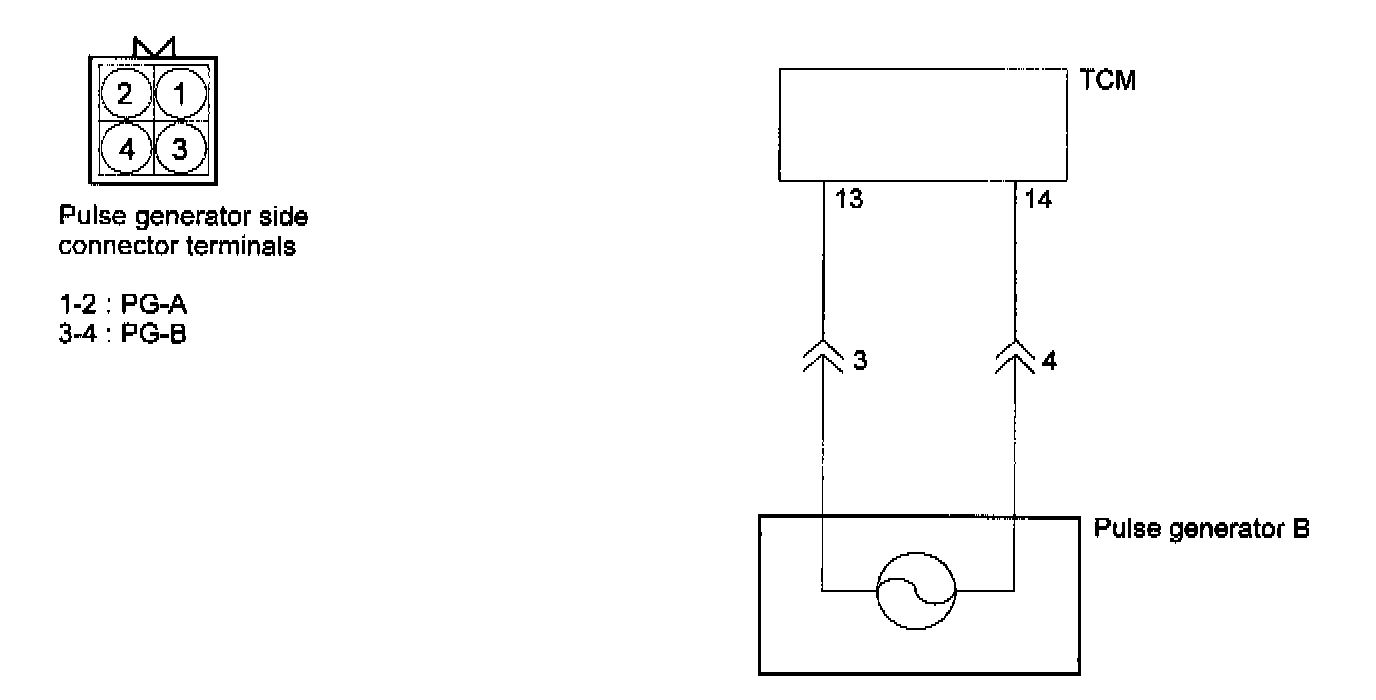

CIRCUIT DIAGRAM

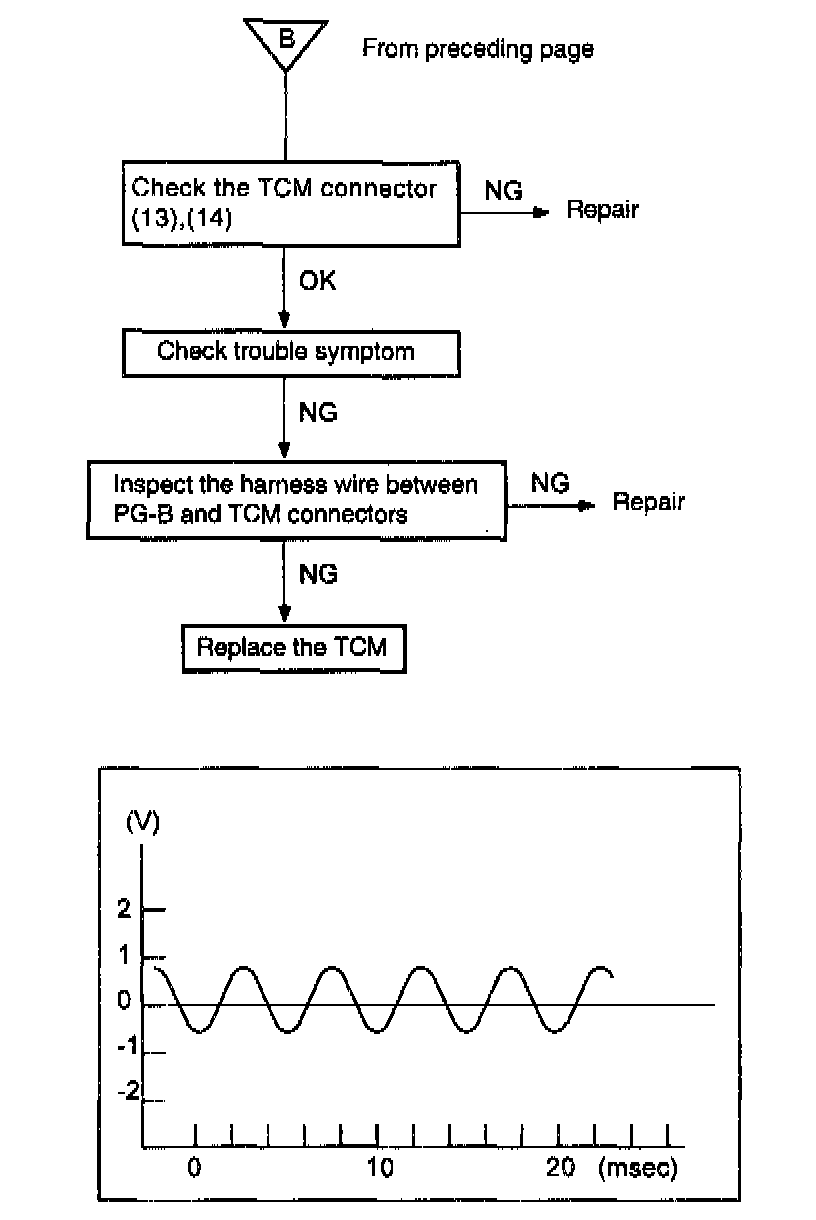

TROUBLESHOOTING FLOW
