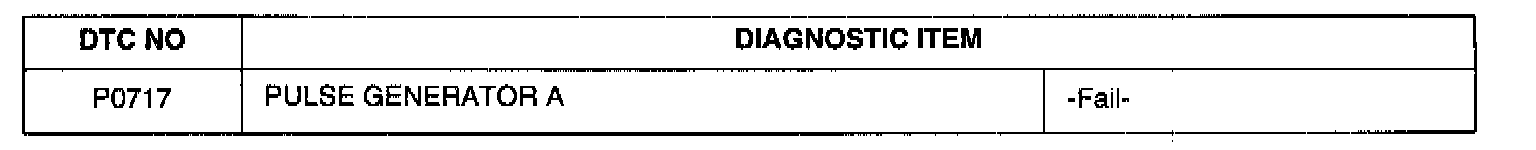

Pulse Generator A - Fail

DESCRIPTION
- Detect non-operating area of damper clutch
- Detect turbine RPM for control of fluid pressure during a shift
- If DTC P0717 is output 4 times within 10 sec, there is an open circuit in PG-A, fail-safe code P0717 is output and the vehicle is locked in 3rd gear (D) or 2nd gear (2,L) as a fail-safe measure.





TROUBLESHOOTING FLOW

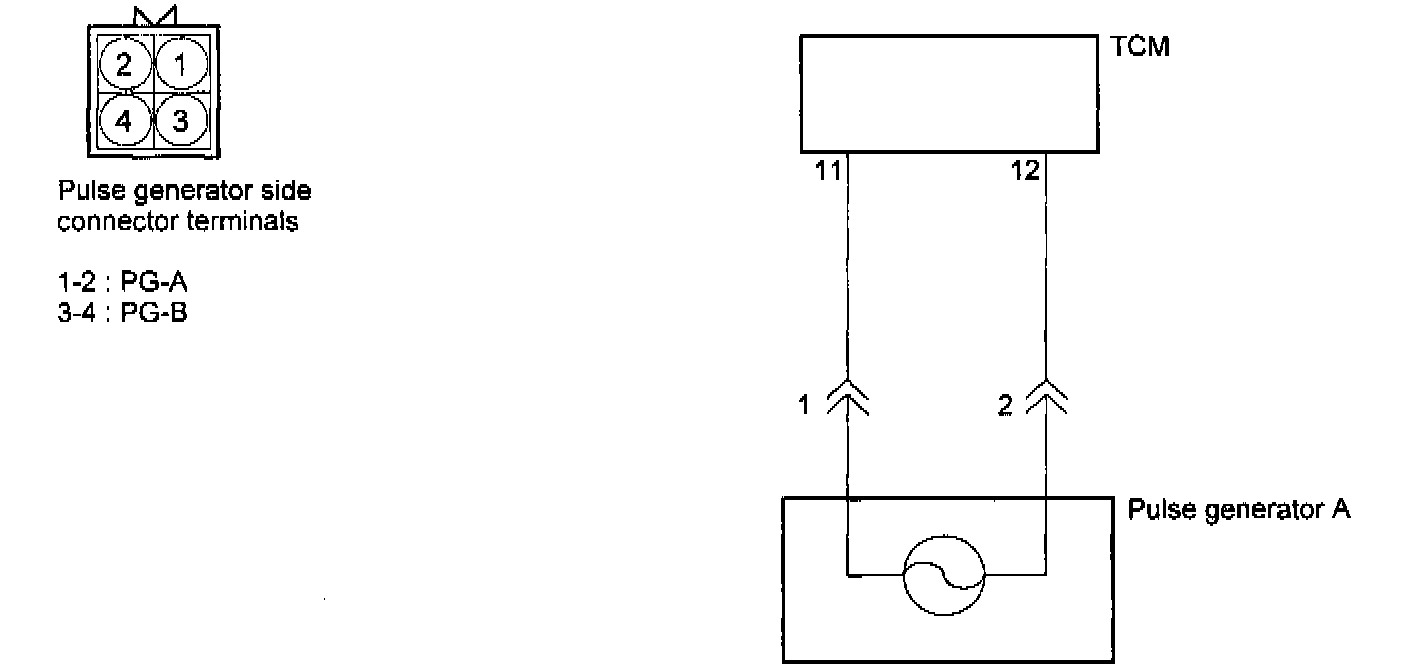

CIRCUIT DIAGRAM

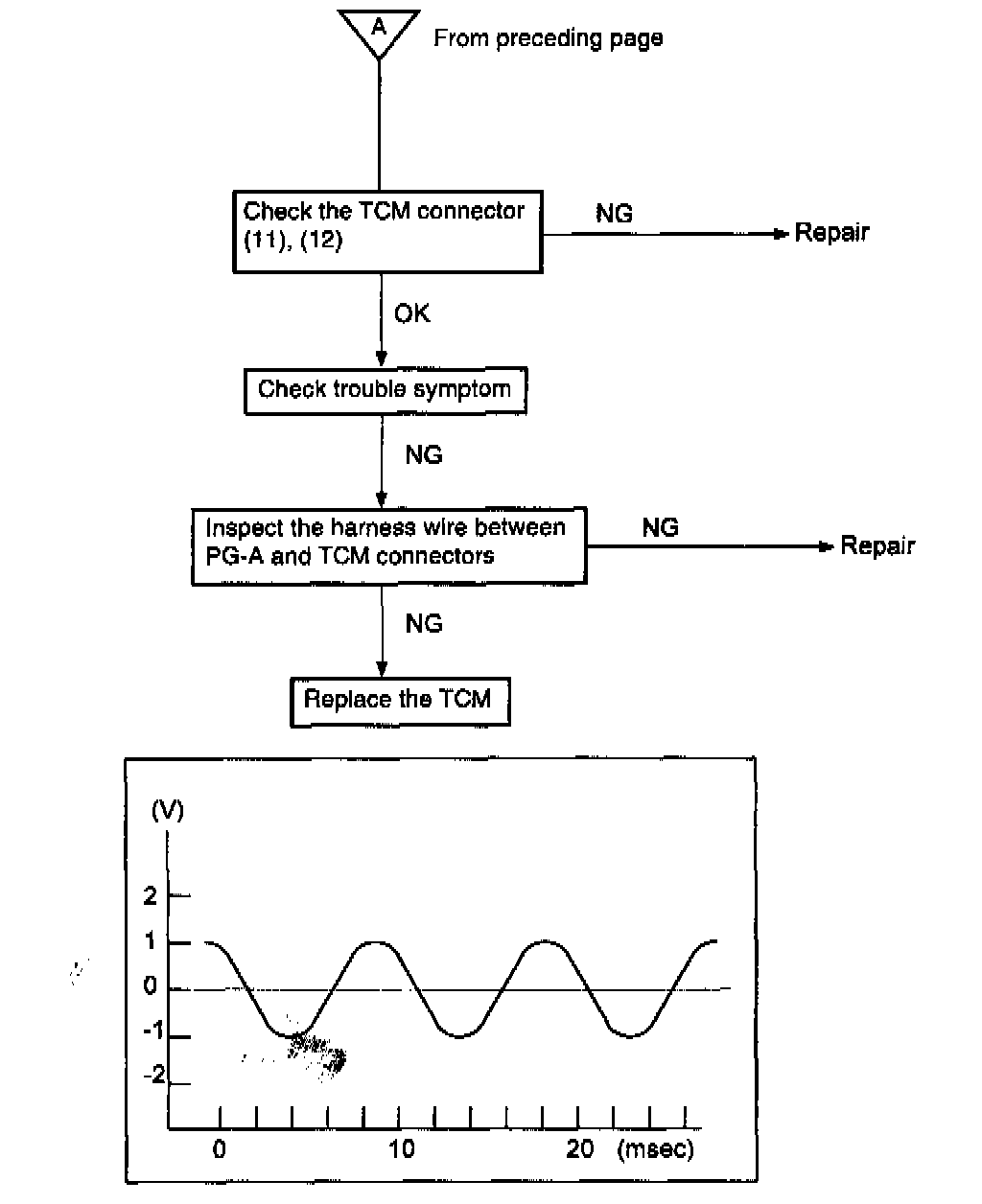

TROUBLESHOOTING FLOW
