P0335

FAILURE CONDITIONS
The ECM will set P0335 and the MIL will turn on it the CKP signal voltage remains at 0.0 volts with the starter engaged for 4 seconds or 8 revolutions and the Camshaft Position (CMP) sensor signal indicating engine rotation. This check is made every time the engine starts. This code indicates no crankshaft signal Is being read by the CKP sensor or the ECM while a CMP sensor signal verifies engine rotation.

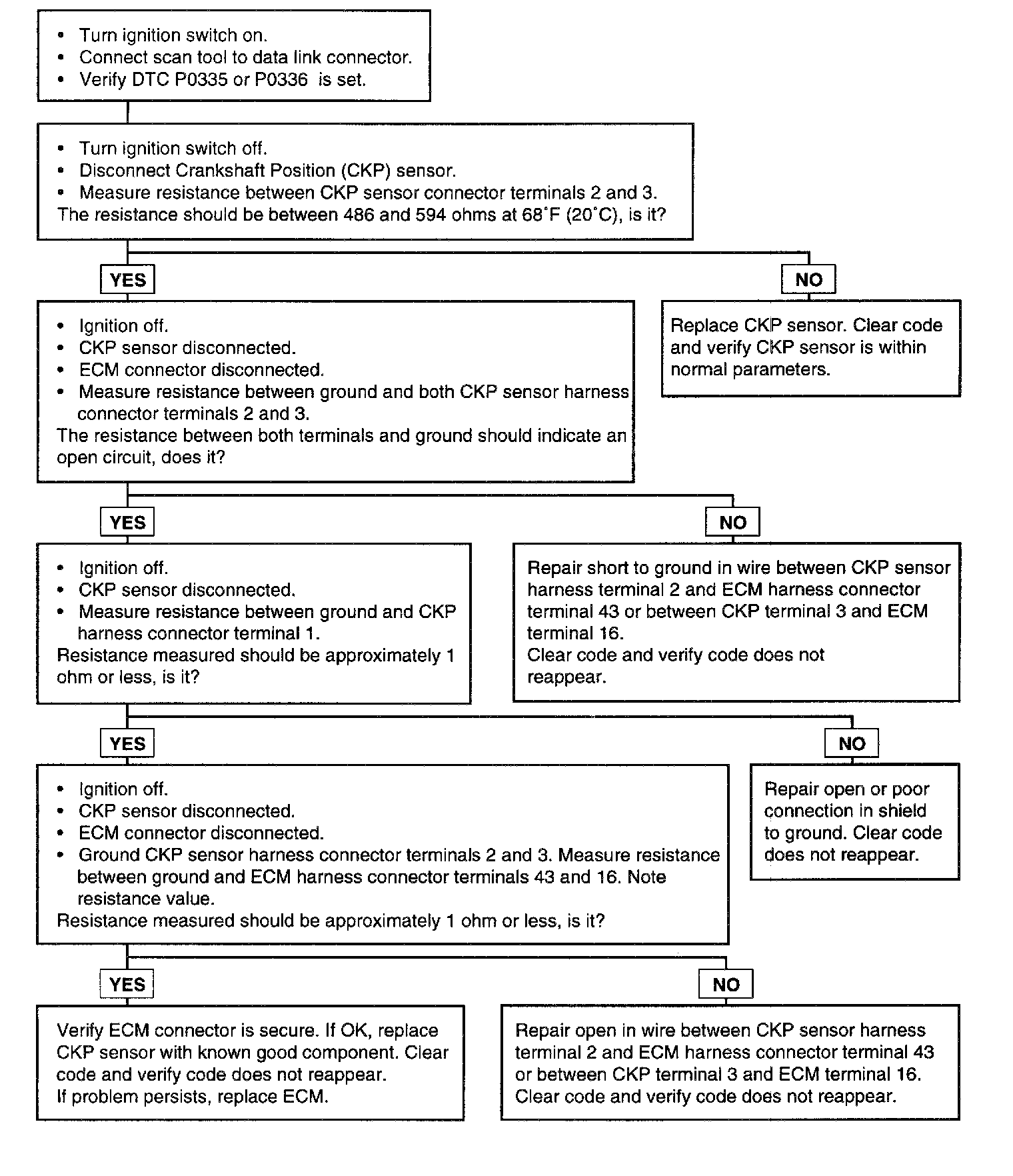

TEST PROCEDURE

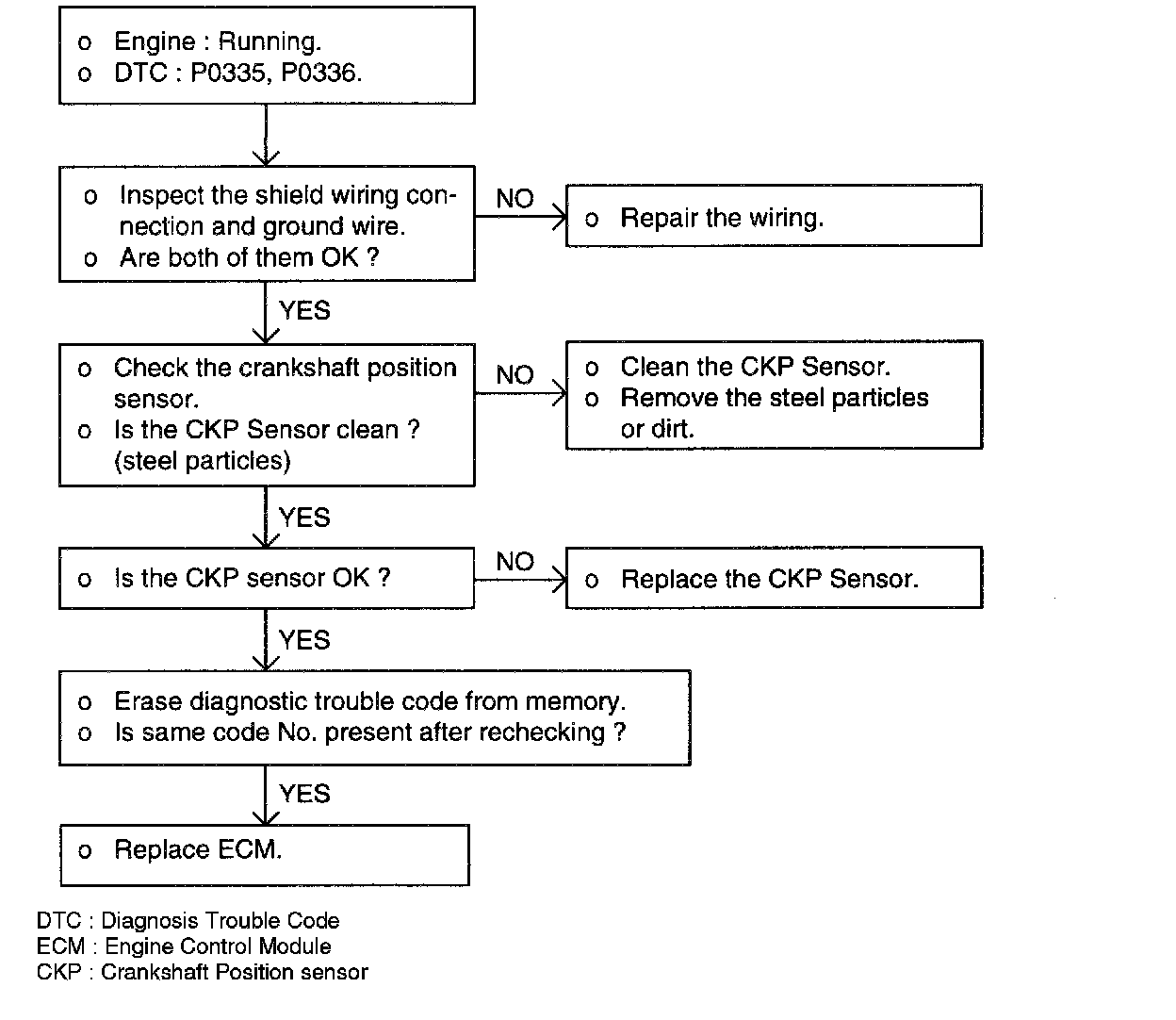

TROUBLESHOOTING PROCEDURES

TROUBLESHOOTING HINTS
1. If unexpected misses are felt during driving or the engine stalls suddenly, shake the crankshaft position sensor harness. If this causes the engine to stall, check for poor contact at the sensor connector.
2. It the tachometer reads 0 rpm when the engine is cranked, check for faulty crankshaft position sensor or ignition system problems.
3. If the tachometer reads 0 rpm when the engine is cranked and it does not start, ignition coil, power TR, or an ECM defect can be considered.
4. Engine can be stalled when the crankshaft position sensor cable is close to the high voltage cable due to the electronic noise caused by the high voltage induced.
