Home >> Hyundai >> 1999 >> Tiburon FX L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Vehicle Speed Sensor

Vehicle Speed Sensor

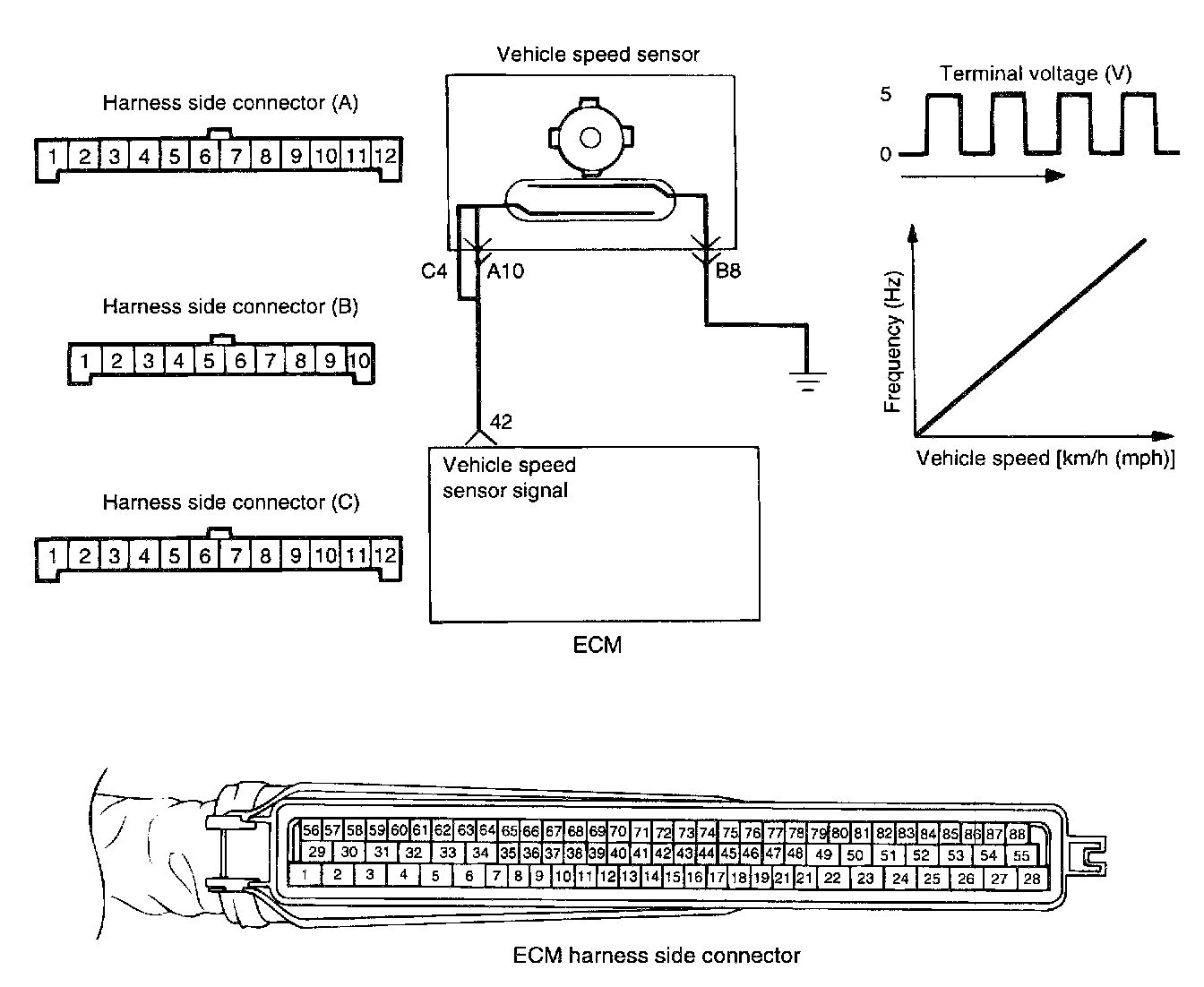

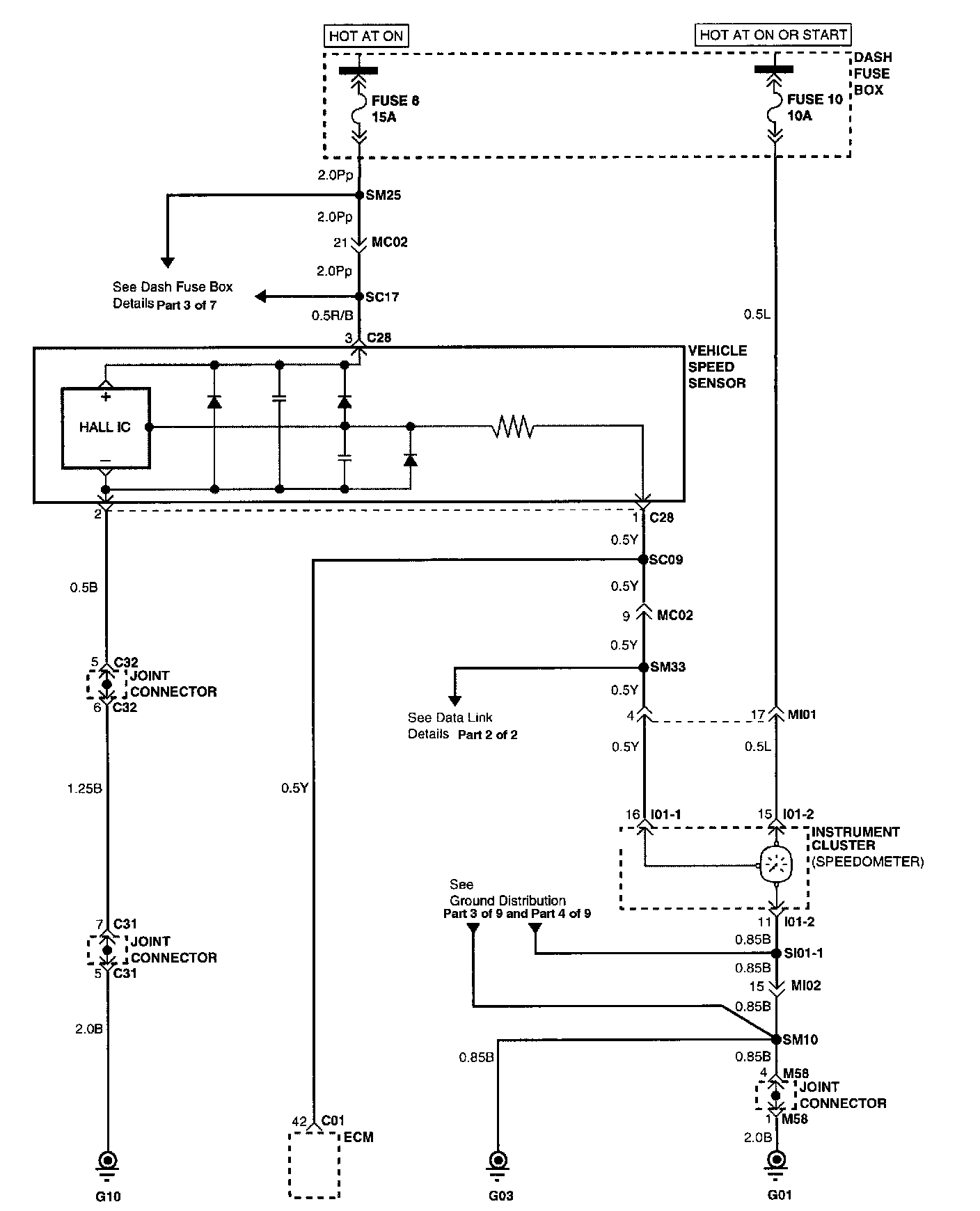

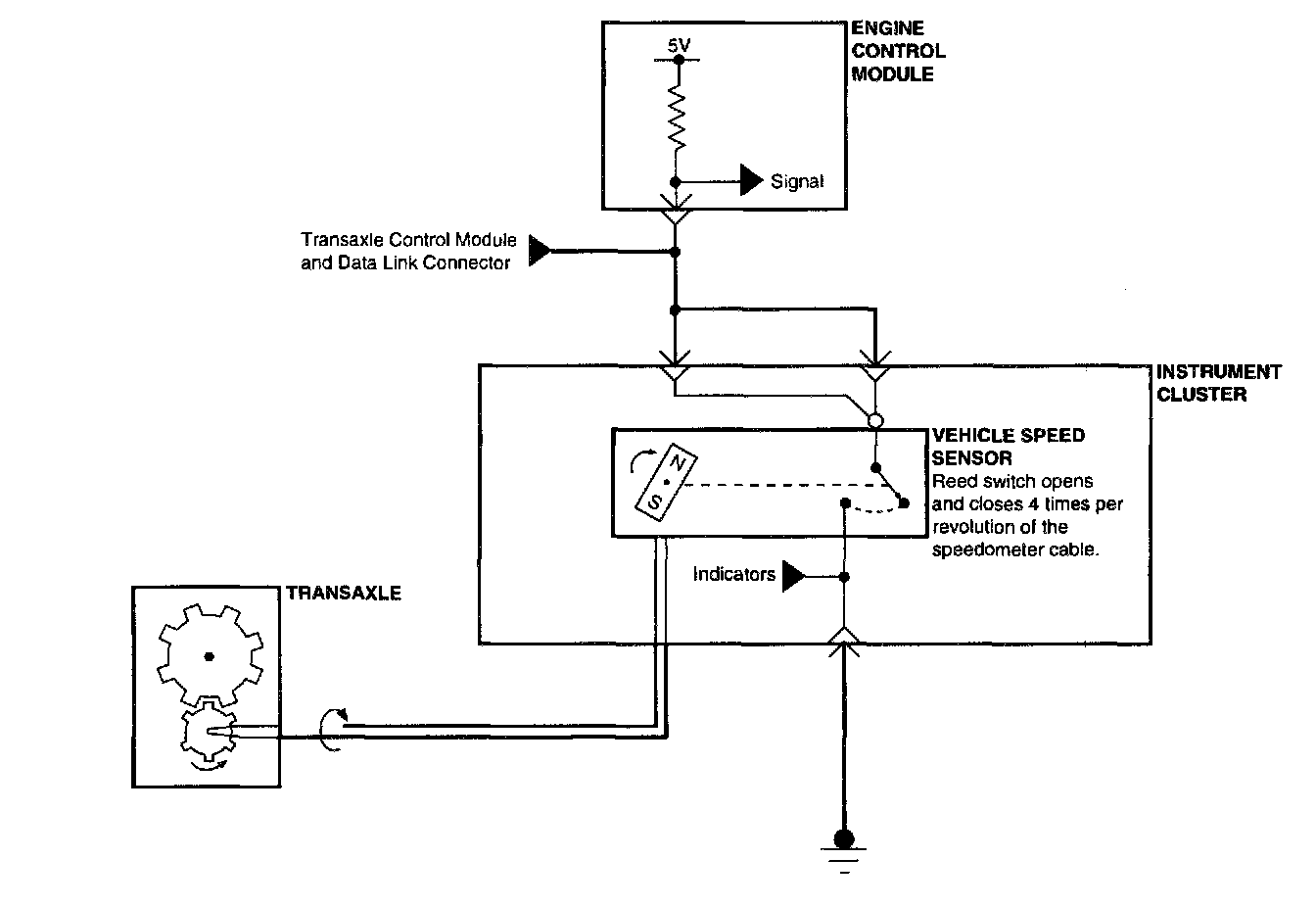

Circuit Diagram

Connector Configurations Are Found At Vehicle / Diagrams / Connector Views.

Connector And Component Locations Are Found At Vehicle Speed Sensor / Locations.
Locations
