Power Door Lock Actuator: Testing and Inspection

1. Disconnect the actuator connector from the wiring harness.

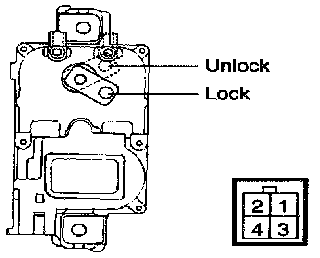

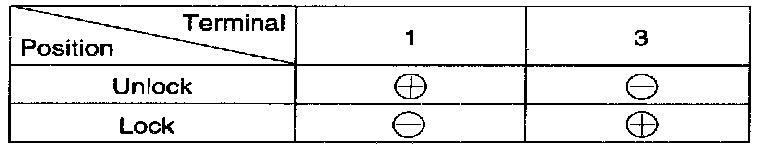

2. Apply battery voltage (DC 12 V) to each terminal as shown in the table and confirm that the actuator makes corresponding operation.
