Front

1. Disconnect battery ground cable.
2. Remove wiper arm and blade assemblies and cowl top cover.

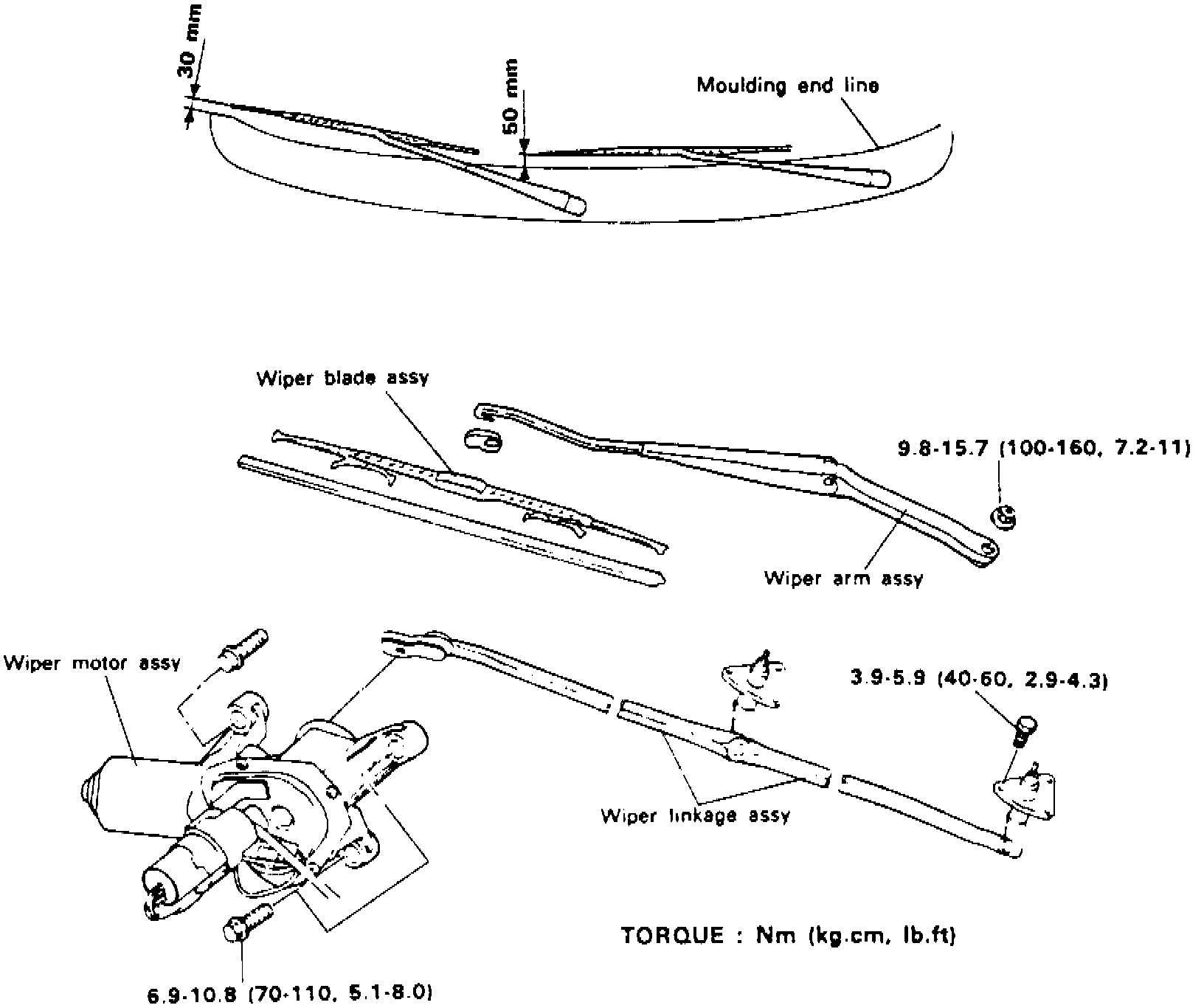

Fig. 3 Front Wiper Motor & Transmission:

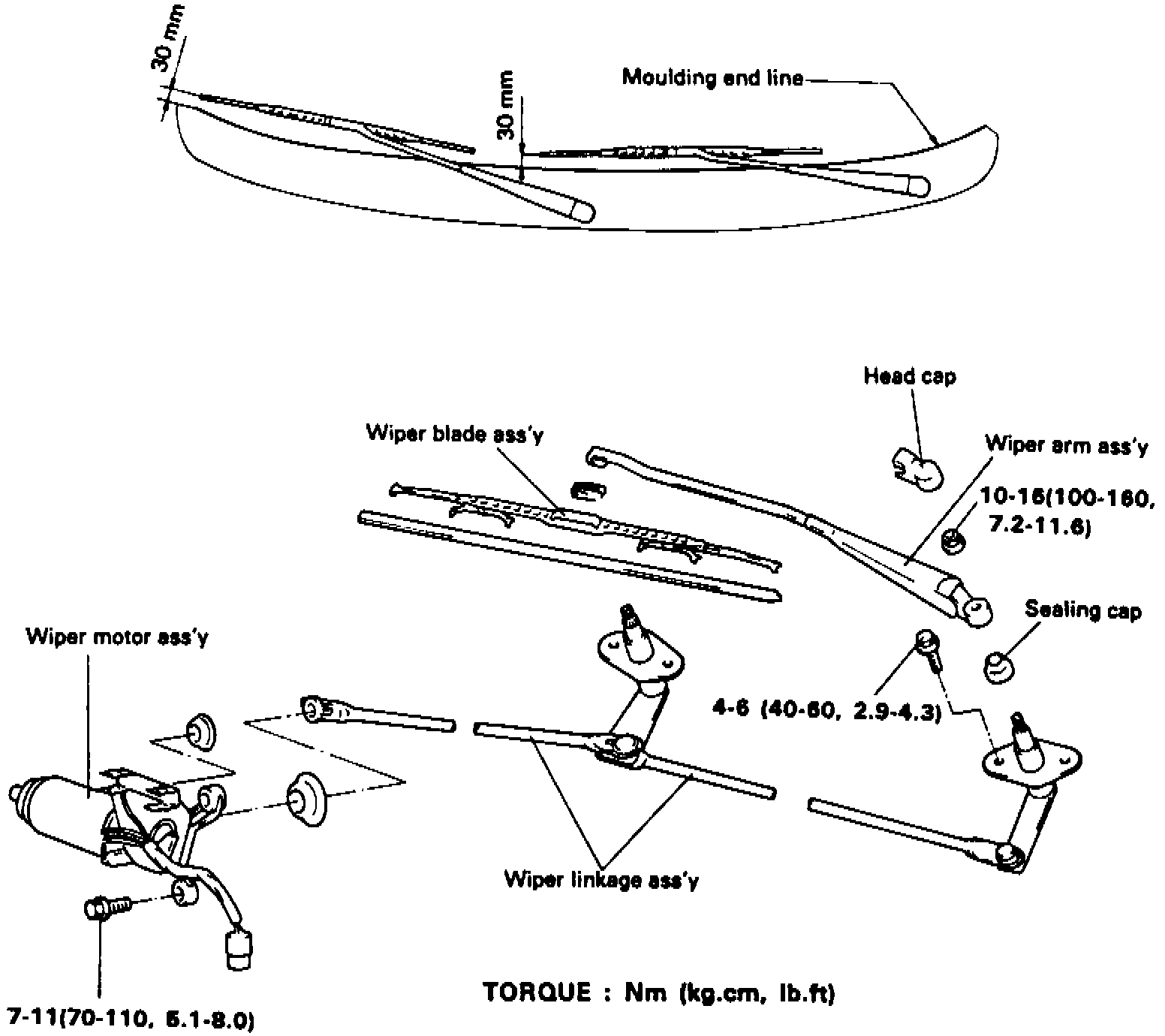

Fig. 4 Front Wiper Motor & Transmission:

3. Disconnect wiper motor electrical connector, remove wiper motor mounting bolts, Fig. 3 and 4.
4. Disconnect wiper motor linkage, then remove wiper motor.
5. Remove wiper linkage mounting bolts and wiper linkage.
6. Reverse procedure to install, noting the following:
a. Install wiper arm and blade assemblies, ensuring outer tip of wiper blades are 1.2 inches above bottom of windshield, with wiper motor in Park position.
