Speed Operation Check

1. Remove connector from front of wiper motor.

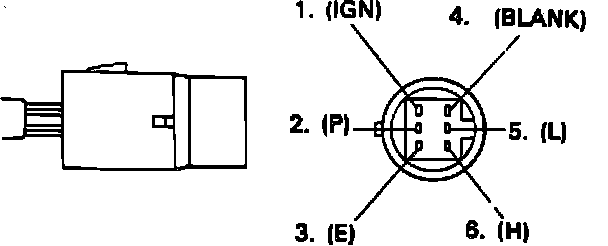

Fig. 2 Speed Operation Check:

2. Attach the positive lead from battery voltage to terminal 1 and negative lead to terminal 5, Fig. 3.
3. Ensure wiper motor operates at low speed.
4. Attach positive battery lead to terminal 1 and negative lead to terminal 2.
5. Ensure wiper motor operates at high speed.
