Shifter A/T: Service and Repair

Shift Lever Assembly






Assembly

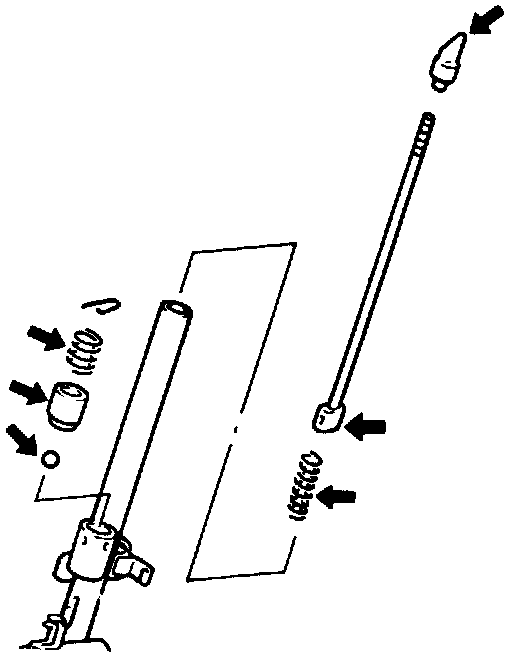

1. Apply a coating of grease to the sliding part of the bushing.
Specified grease: Chassis Grease, SAE J310, NLGI No.0

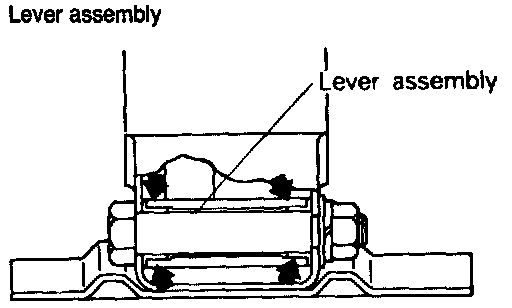

2. Apply the specified grease to the places shown in the image.
