Shift Linkage: Testing and Inspection

INSPECTION






1. Check the control cable for function and for damage.
2. Check the bushing for wear or damage.
3. Check the spring for damage or deterioration.

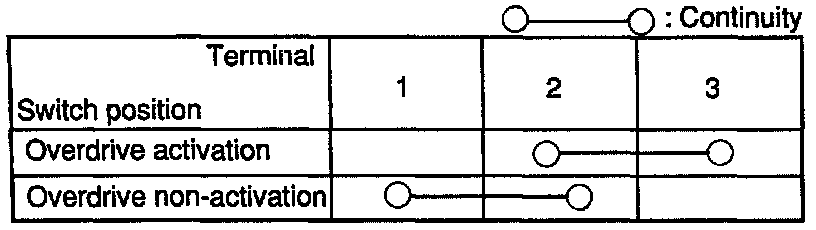

4. Check the overdrive switch for continuity.

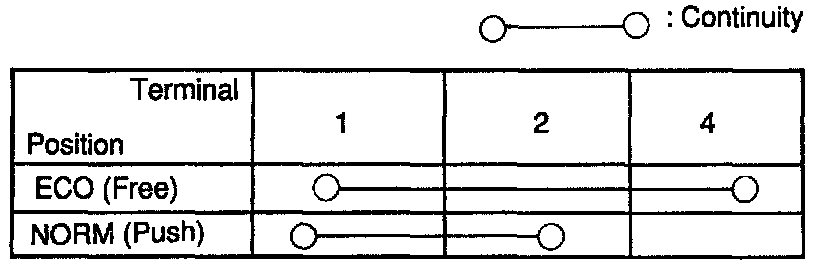

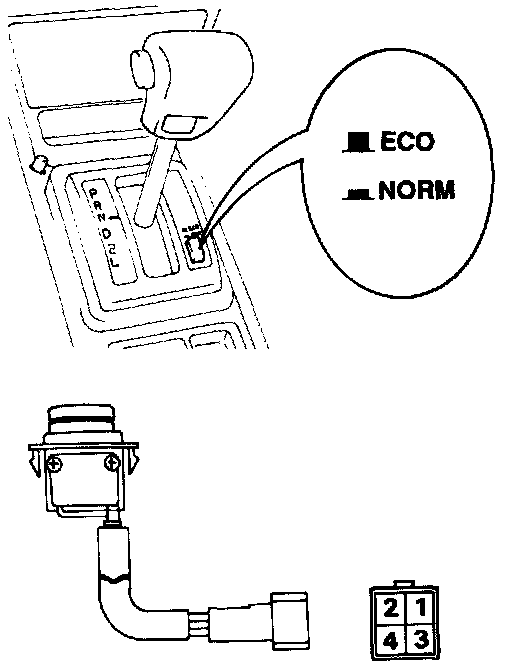

5. Check the E/N switch for continuity.
