Removal

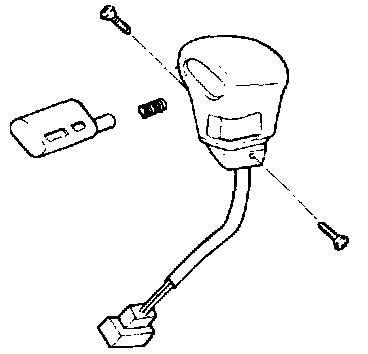

REMOVAL






1. Remove the console box assembly.
2. Remove the selector knob installation screws.
3. Disconnect the overdrive switch connector and then remove the selector knob.






4. Remove the cover, indicator panel, slider.
5. Disconnect the position indicator connector and normal/economy select switch connector

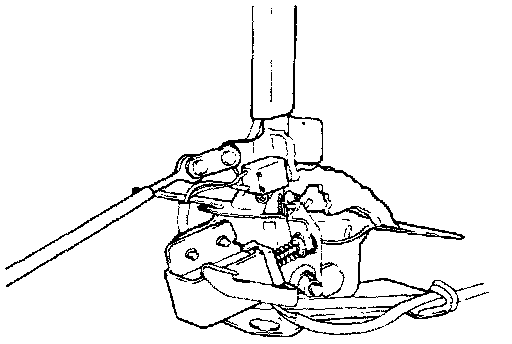

6. Remove the pin, self lock pin from the link.

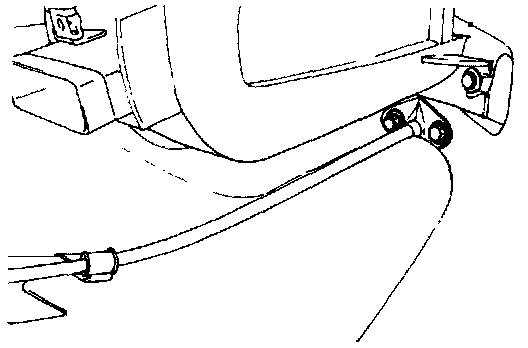

Fig. 2 Cable & Clip Removal From Support:

7. Remove the clip, nut from the shift lever side.






8. Remove the bolt-washer assembly located on dash panel.






9. Remove the clip, flange nut from the transaxle side.
10. Remove the transaxle control cable assembly.
